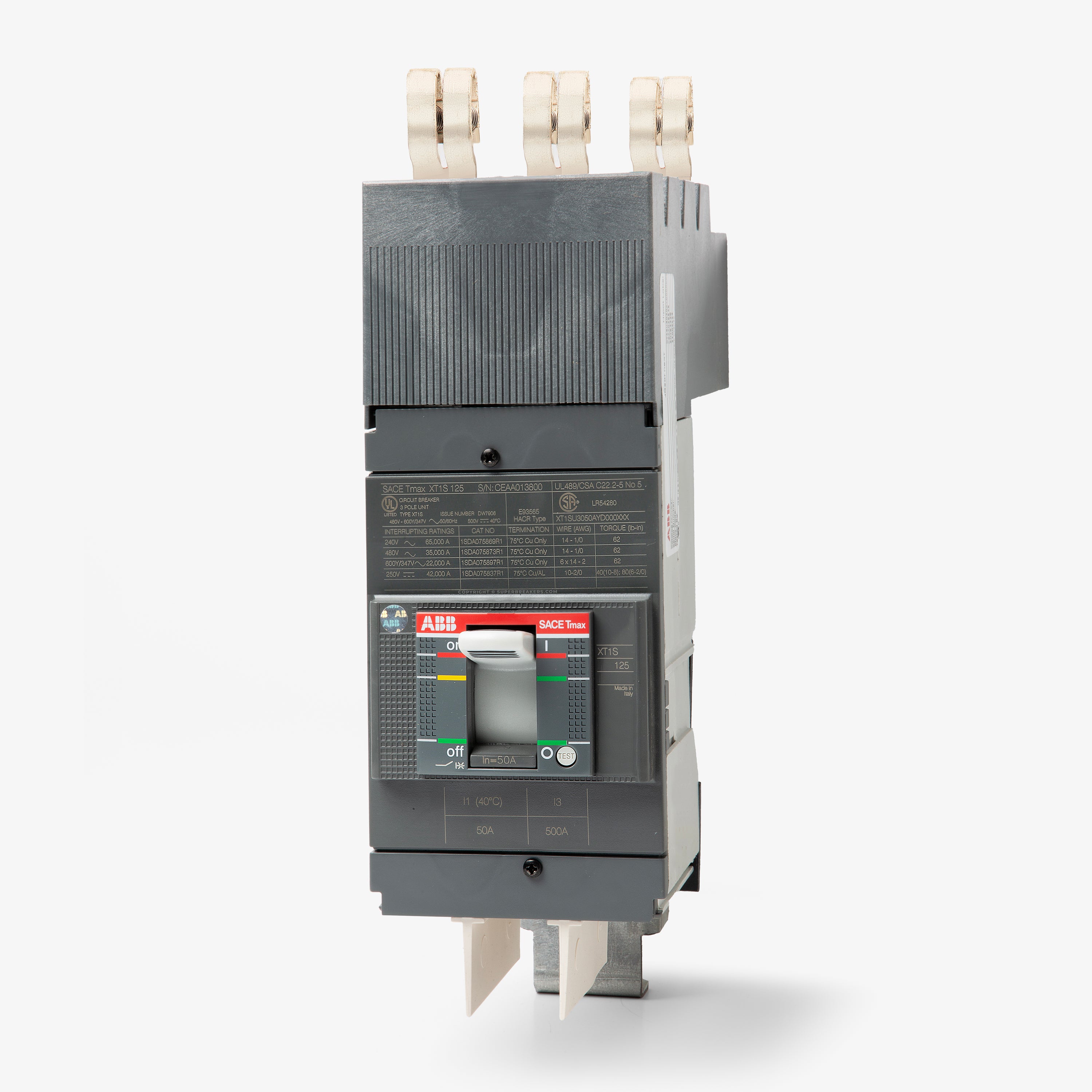

ABB XT1SU3050AYD000XXX Molded Case Circuit Breaker
- 50A
- 3 Pole

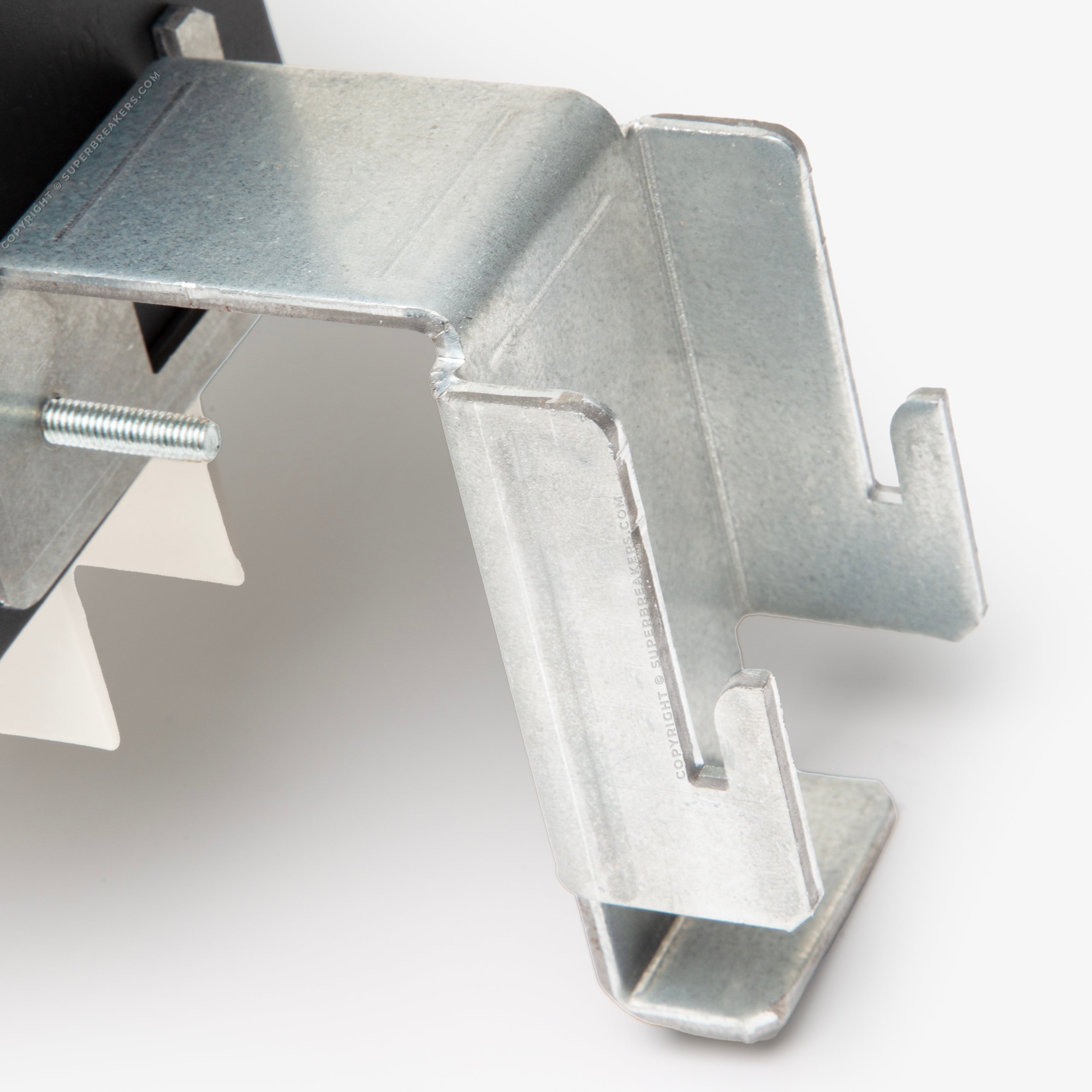

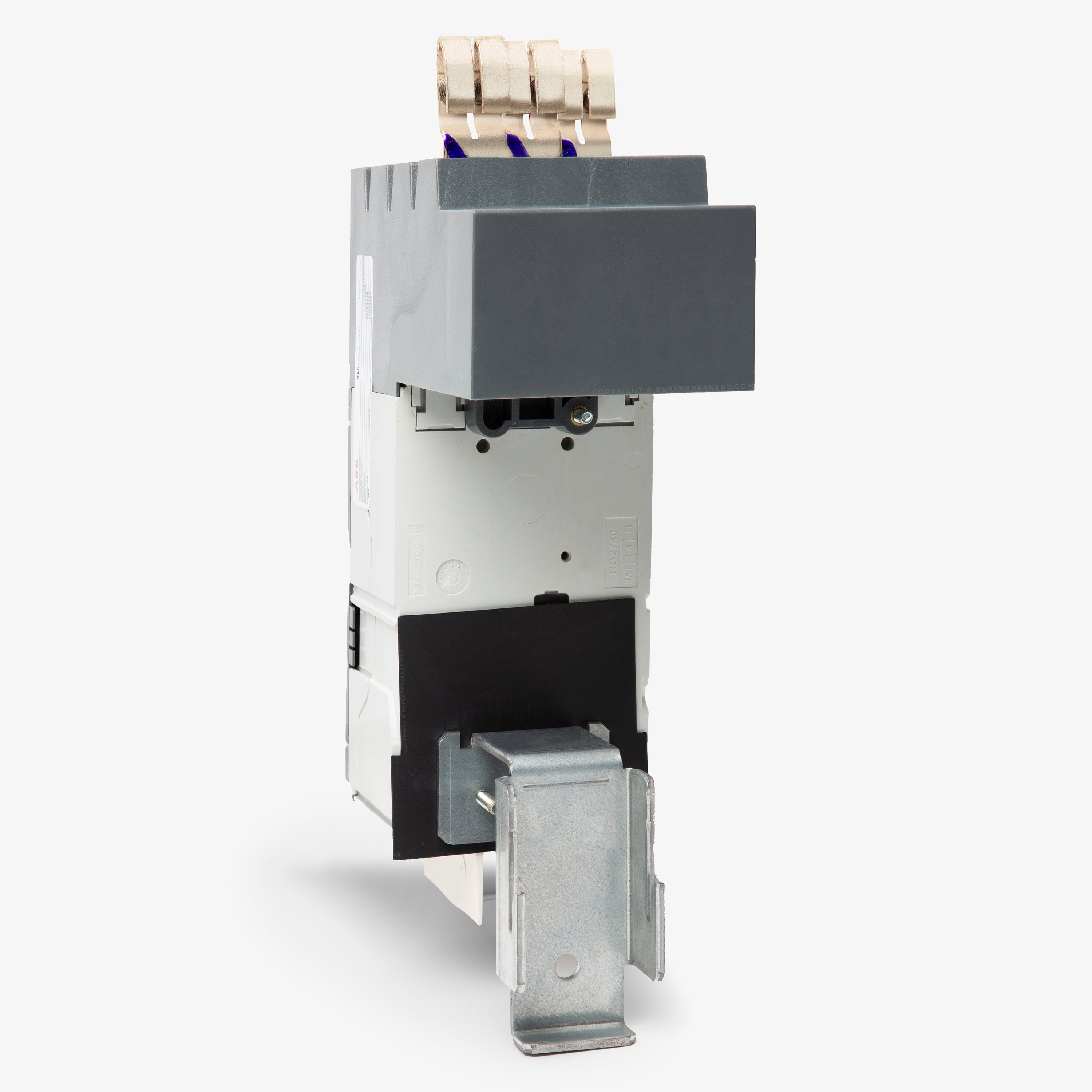

- Unit Mount
ABB
XT1SU3050AYD000XXX
Molded Case Circuit Breaker
Brand
ABB
SKU
XT1SU3050AYD000XXX
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB XT1SU3050AYD000XXX - 50A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
50A 3 Pole Molded Case Circuit Breaker
50A 3 Pole Molded Case Circuit Breaker
45A 3 Pole Molded Case Circuit Breaker
Description

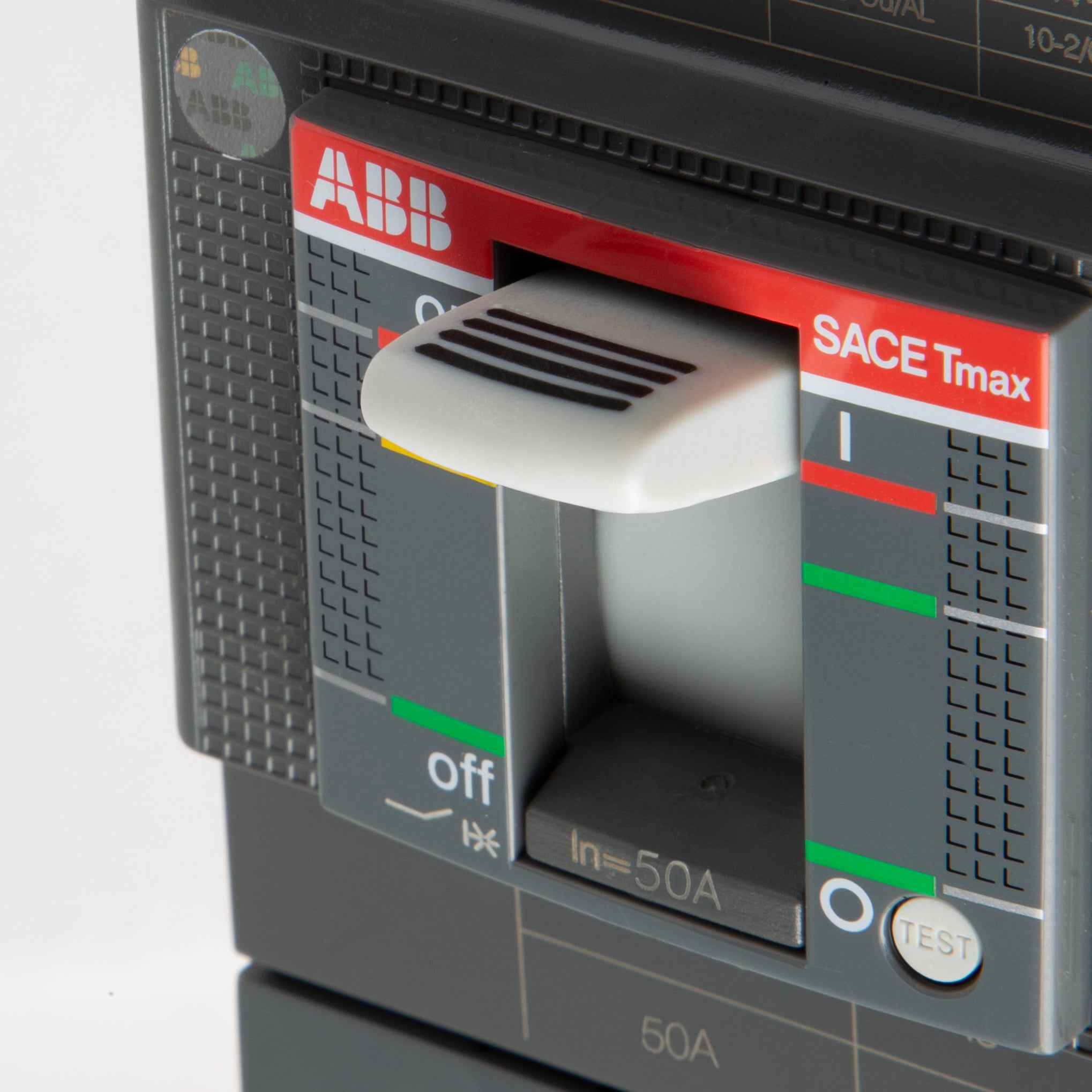

Delivering reliable branch circuit protection, the ABB XT1SU3050AYD000XXX is a 3-pole, 50A unit mount MCCB from the SACE Tmax XT1 family. It comes equipped with line and load side lugs accepting 10 AWG to 2/0 AWG wire. This breaker mounts into ReliaGear neXT, RQ panelboards, and SB switchboards, serving as a drop-in replacement for the legacy T1N050TL. Featuring fixed thermal and magnetic trip settings (LI), it provides a 35 kAIC interrupt rating at 480VAC.Specifications
| Brand | ABB |
|---|---|
| Series | XT1 |
| Amperage | 50A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 22kA @ 600Y/347VAC, 42kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | ReliaGear neXT Panelboards, ReliaGear RQ Panelboards, ReliaGear SB Switchboards |
| Wire Gauge | 10 AWG - 2/0 AWG (Cu/Al) |
| Max Wire | 2/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Line and Load Side Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, cULus, IEC, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Reverse Feed, Double Insulated |
Product FAQs
4 answersWhich ABB enclosures are compatible with this XT1 breaker?
This unit mount breaker installs directly into ReliaGear neXT Panelboards, ReliaGear RQ Panelboards, and ReliaGear SB Switchboards.
What is the direct replacement for the legacy T1N050TL?
The XT1SU3050AYD000XXX serves as the direct drop-in replacement for the legacy T1N050TL circuit breaker.
What type of connections are provided on the line and load sides?

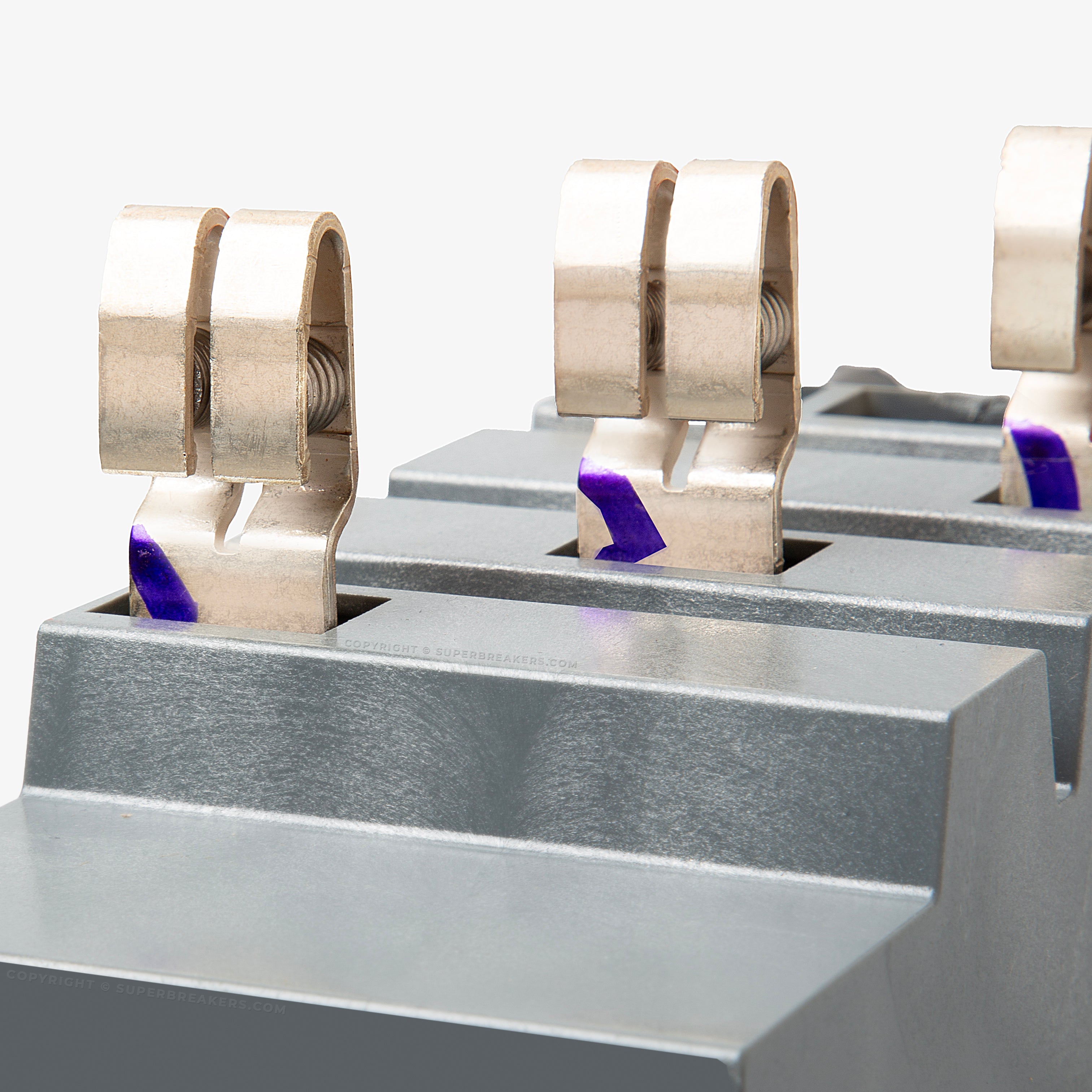

This breaker comes factory-equipped with line and load side lugs that accept 10 AWG to 2/0 AWG copper or aluminum wire.
Are the trip settings adjustable on this model?
No, this breaker is equipped with a thermal magnetic trip unit featuring fixed thermal and fixed magnetic settings for Long-Time and Instantaneous protection.
