ABB XT4HU3100AFJ000XXX Molded Case Circuit Breaker
- 100A
- 3 Pole
- Unit Mount
ABB
XT4HU3100AFJ000XXX
Molded Case Circuit Breaker
Brand
ABB
SKU
XT4HU3100AFJ000XXX
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

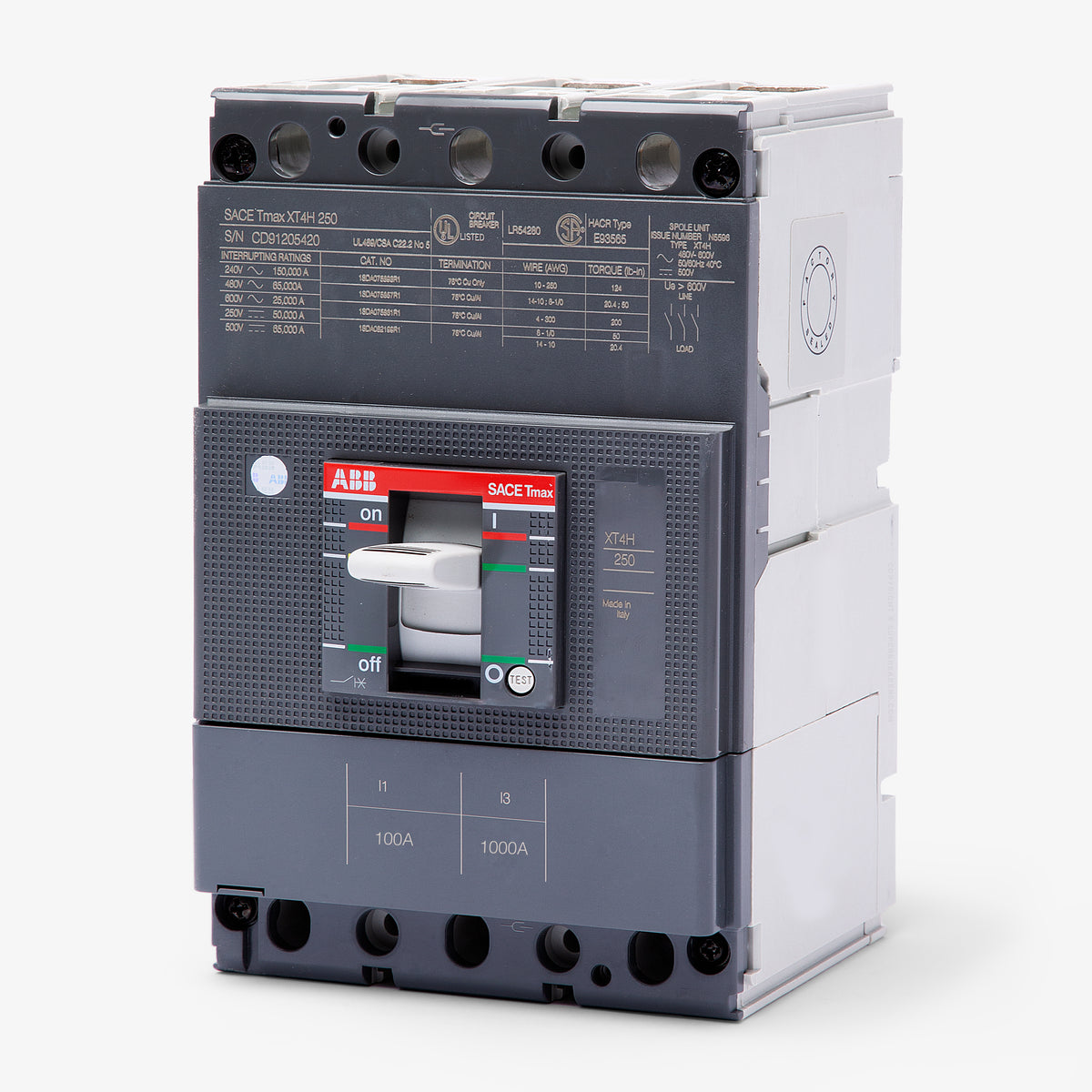

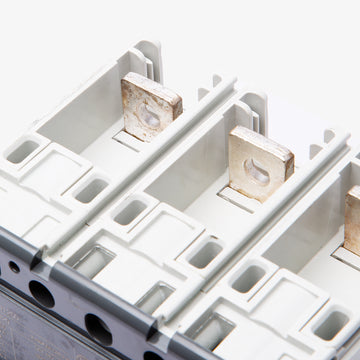

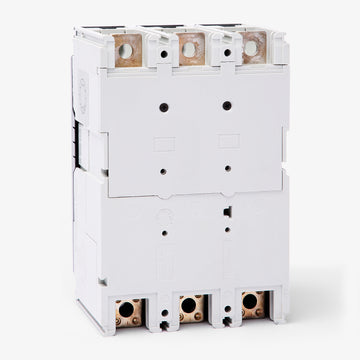

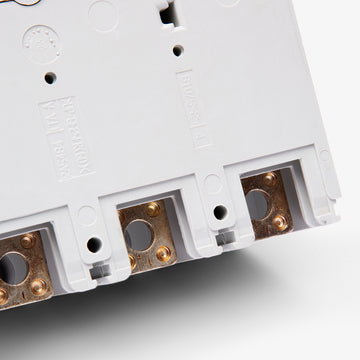

ABB XT4HU3100AFJ000XXX - 100A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
125A 3 Pole Molded Case Circuit Breaker
175A 3 Pole Molded Case Circuit Breaker
200A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial and industrial power distribution, the ABB XT4HU3100AFJ000XXX is a 3-pole, 100A molded case circuit breaker. It belongs to the robust SACE Tmax XT4 frame family, delivering reliable overcurrent protection for demanding environments. This unit mount MCCB installs into ABB ReliaGear neXT panelboards and ReliaGear SB switchboards. It serves as a replacement for legacy T4H100TW breakers. Rated for 150kAIC at 240VAC, it features fixed thermal and magnetic trip functions.Specifications
| Brand | ABB |
|---|---|
| Series | XT4 |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 600VDC |
| Phase | 3 |
| AIC Rating | 150kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 50kA @ 250VDC, 65kA @ 600VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | ABB ReliaGear neXT Panelboards, ReliaGear SB Switchboards, SACE Tmax XT Panelboards |
| Wire Gauge | 4 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Motor Operator, Handle Lock, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CCC, CSA, cULus, IEC, KEMA, UL |
| Temp Rating | -25C to 70C |
| Construction Features | Current Limiting, HACR Rated, Reverse Feed, Double Insulation, Positive Operation, Suitable for Single Phase Application |
Product FAQs
7 answersWhat panelboards accept the XT4HU3100AFJ000XXX circuit breaker?
This unit-mount breaker is designed to integrate directly with ABB ReliaGear neXT Panelboards, ReliaGear SB Switchboards, and SACE Tmax XT Panelboards.
What wire gauge and conductor material do the lugs support?
The factory-installed lugs accept 4 AWG to 300 kcmil conductors and are dual-rated for both copper (Cu) and aluminum (Al) wire. Ensure you follow standard torque specifications during termination.
Are the long-time and instantaneous trip settings adjustable?
No. The XT4HU3100AFJ000XXX features a fixed thermal-magnetic trip unit (LI). If your application requires field-adjustable trip curves, you must select an XT4 variant equipped with a TMA (Thermal Magnetic Adjustable) or an Ekip electronic trip unit.
What does the "H" in the XT4HU catalog number indicate?
The "H" signifies that this is a High Interrupting tier frame. It provides elevated short-circuit fault protection compared to standard XT4 frames, delivering up to 150kA at 240VAC and 65kA at 480VAC.
Can the XT4HU3100AFJ000XXX be used in DC power circuits?
Yes. While commonly used in AC distribution, this frame is fully rated for DC systems. It provides up to 50kA interrupting capacity at 250VDC and 65kA at 600VDC.
Is this breaker configured for plug-in or fixed mounting?
Out of the box, this SKU is configured as a fixed, unit-mount breaker. Installing it in a plug-in or withdrawable configuration requires a separate moving part conversion kit and a compatible fixed base.
Why is the parent brand listed as both ABB and General Electric?
Following ABB's acquisition of GE Industrial Solutions, the SACE Tmax XT series serves as the modern replacement platform for legacy GE molded case circuit breakers. This unit is manufactured by ABB and is designed specifically for current ReliaGear and Tmax distribution equipment.
