ABB XT4HU3200AFJ000XXX Molded Case Circuit Breaker
- 200A
- 3 Pole
- Unit Mount
ABB
XT4HU3200AFJ000XXX
Molded Case Circuit Breaker
Brand
ABB
SKU
XT4HU3200AFJ000XXX
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

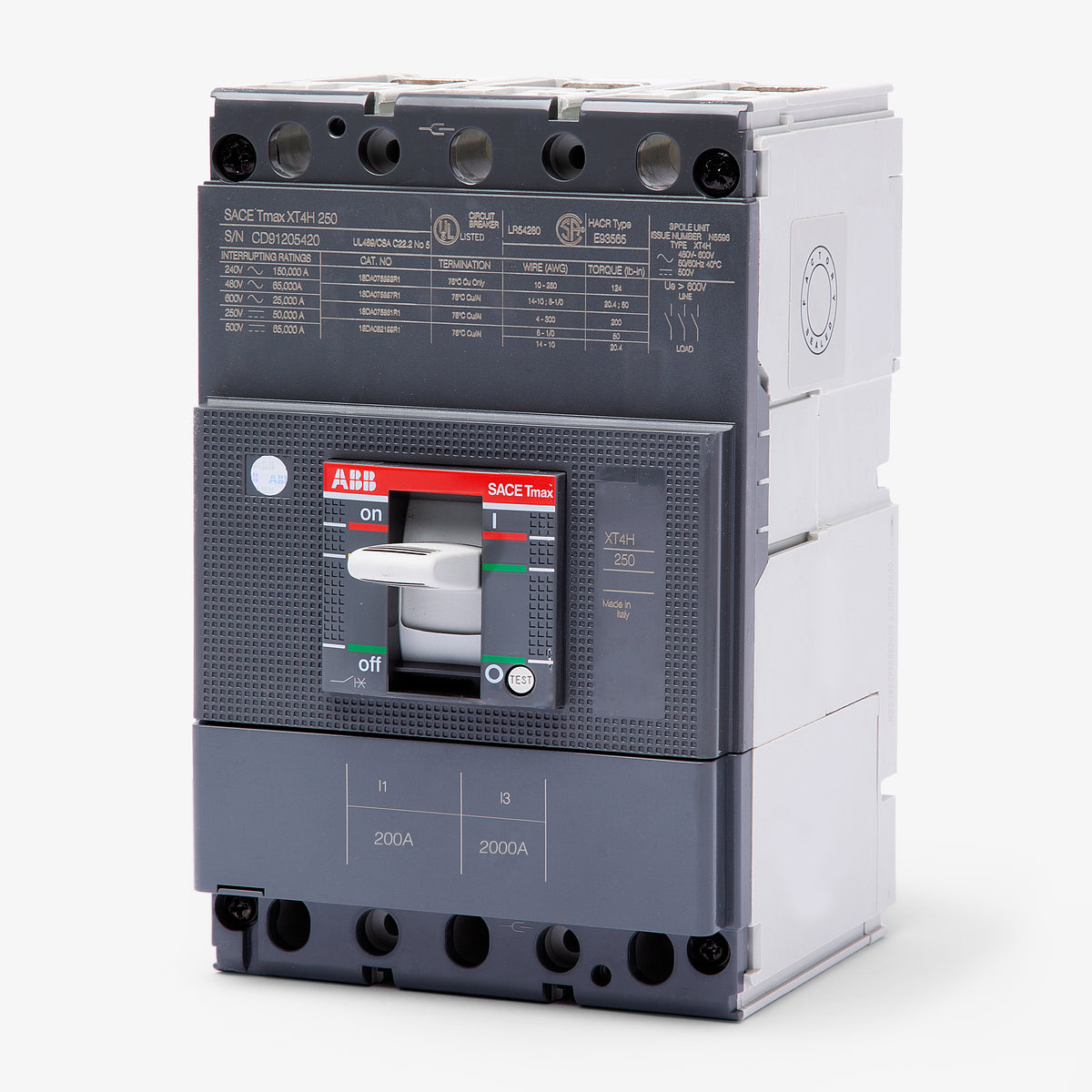

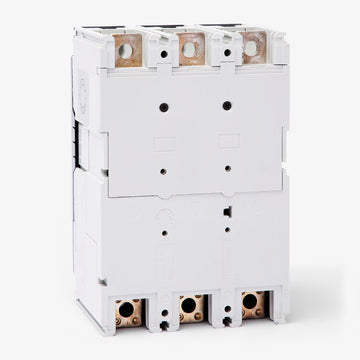

ABB XT4HU3200AFJ000XXX - 200A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
125A 3 Pole Molded Case Circuit Breaker
100A 3 Pole Molded Case Circuit Breaker
100A 3 Pole Molded Case Circuit Breaker
Description
Providing reliable overcurrent protection for industrial facilities, the ABB XT4HU3200AFJ000XXX operates within the SACE Tmax XT4 frame. This 3-pole, 200A breaker features a fixed thermal and fixed magnetic (TMF) trip unit to deliver consistent long-time and instantaneous defense. It mounts into ABB SACE Tmax XT panelboards and enclosures, serving as a direct replacement for legacy T4H200 breakers. Rated at 65kAIC at 480VAC, it includes load side lugs and current-limiting technology.Specifications
| Brand | ABB |
|---|---|
| Series | XT4 |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 600VDC |
| Phase | 3 |
| AIC Rating | 150kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 50kA @ 250VDC, 65kA @ 600VDC |

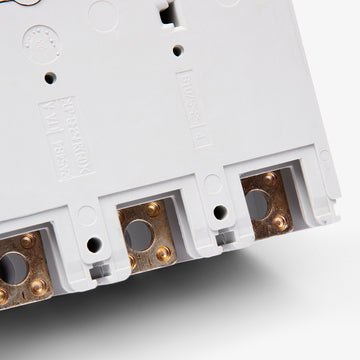

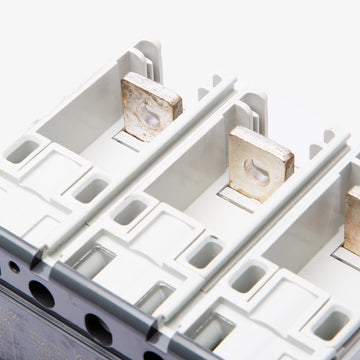

| Terminal Type | Lugs |
|---|---|
| For Use With | ABB SACE Tmax XT Panelboards, Switchboards, Enclosures |
| Wire Gauge | 4 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CCC, CSA, cULus, IEC, KEMA, RINA, UL |
| Temp Rating | -25C to 70C |
| Construction Features | Current Limiting, HACR Rated, Reverse Feed |
Product FAQs
8 answersWhat does the 'H' in the XT4HU3200AFJ000XXX catalog number signify?
The 'H' designates the high interrupting performance tier for ABB Tmax XT breakers. This tier provides greater short-circuit fault clearing capacity compared to the standard 'N' or 'S' class breakers in the XT4 frame.
Can the XT4HU3200AFJ000XXX circuit breaker be reverse fed?
Yes. ABB Tmax XT4 thermal-magnetic breakers are capable of being reverse fed up to a maximum of 600V. Power can be safely supplied to either the top or bottom terminals without affecting the trip calibration.
What temperature rating is required for the conductors connected to this breaker?
Wire sizing should be based on the ampacity of 75°C rated conductors. The included factory copper/aluminum lugs are rated for 75°C standard continuous operation.
Is the XT4HU3200AFJ000XXX classified as a current-limiting circuit breaker?
Yes. The XT4H frame has undergone testing per the UL489 standard and is classified as a UL current-limiting circuit breaker. It restricts peak let-through current and energy during a fault without the need for supplementary current-limiting fuses.
Does the trip unit on this breaker require an external control voltage?
No. The XT4HU3200AFJ000XXX features a fixed thermal-magnetic trip unit. It operates purely on the heat and magnetic fields generated by the load current, requiring no external power supply or batteries to function.
Which legacy circuit breakers does the ABB Tmax XT4 frame replace?
The Tmax XT4 series is the modern upgrade path for the older ABB Tmax T4 and legacy GE Spectra series molded case circuit breakers, offering advanced arc clearing in a similar physical footprint.
Can this molded case circuit breaker be used in DC distribution systems?
Yes. While commonly used for AC panelboards, the XT4HU3200AFJ000XXX is also fully UL rated for direct current applications up to 600VDC, making it suitable for industrial DC control panels and select battery configurations.
Are the thermal and magnetic trip points adjustable on the XT4HU3200AFJ000XXX?
No. This specific model features a TMF (Thermal-Magnetic Fixed) trip unit. Both the long-time overload and instantaneous short-circuit pickup points are fixed at the factory and cannot be field adjusted by the user.
