ABB XT4HU3200BYJ000XXX Molded Case Circuit Breaker
- 200A
- 3 Pole
- Unit Mount
ABB
XT4HU3200BYJ000XXX
Molded Case Circuit Breaker
Brand
ABB
SKU
XT4HU3200BYJ000XXX
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

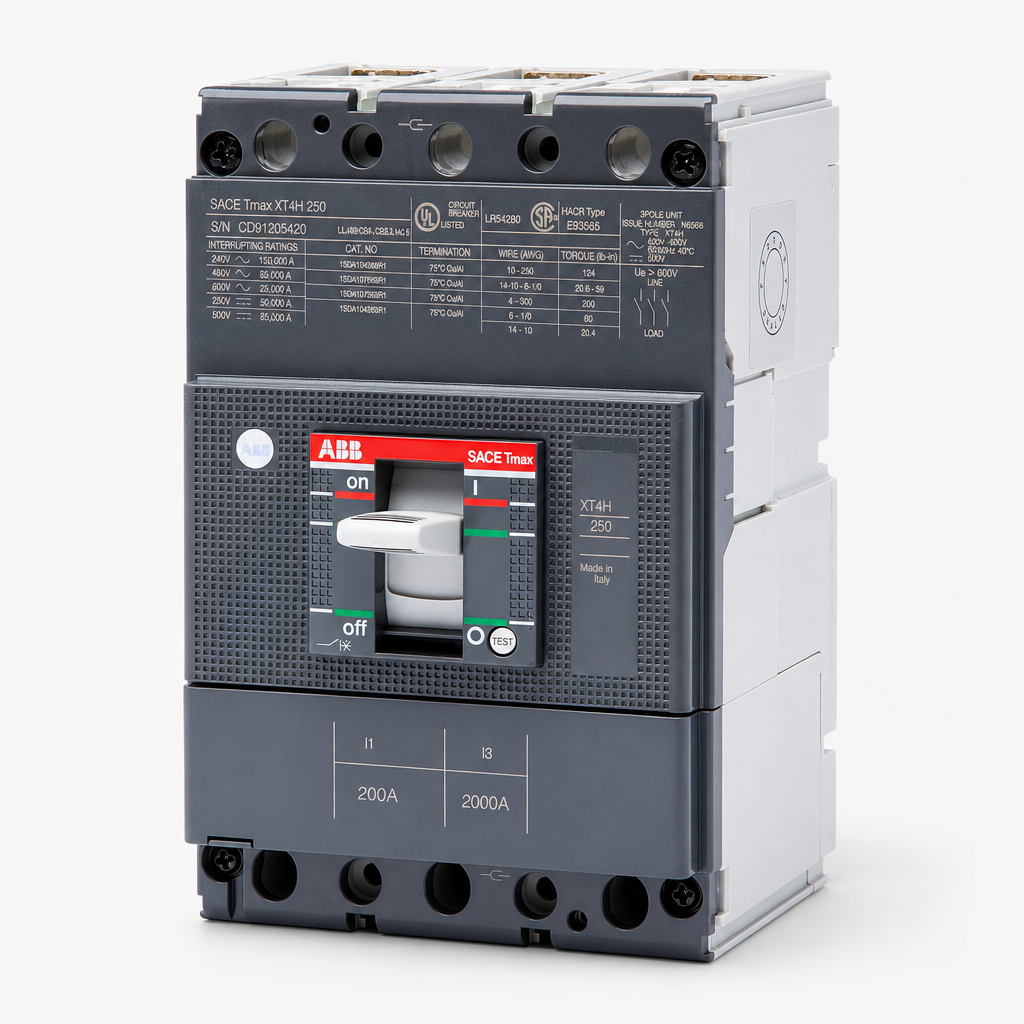

ABB XT4HU3200BYJ000XXX - 200A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
175A 3 Pole Molded Case Circuit Breaker
250A 3 Pole Molded Case Circuit Breaker
125A 3 Pole Molded Case Circuit Breaker
Description
Engineered for industrial power distribution, this 200A molded case circuit breaker belongs to the ABB SACE Tmax XT4 series. It delivers reliable overcurrent protection with a robust 65kAIC rating at 480VAC. This unit-mount MCCB installs into ReliaGear neXT panelboards, ReliaGear SB switchboards, and Tmax XT enclosures. It serves as a seamless replacement for legacy T4H200TW breakers. The breaker features a thermal-magnetic trip unit with fully adjustable settings for precise coordination.Specifications
| Brand | ABB |
|---|---|
| Series | XT4 |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 600VAC, 250VDC, 600VDC |
| Phase | 3 |
| AIC Rating | 150kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC, 25kA @ 600VAC, 50kA @ 250VDC, 65kA @ 600VDC |
| Amperage Range | 140-200A |
|---|
| Terminal Type | Lugs |
|---|---|
| For Use With | ABB ReliaGear neXT Panelboards, ReliaGear SB Switchboards, SACE Tmax XT Panelboards |
| Wire Gauge | 4 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Adjustable Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Motor Operator, Handle Lock, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CCC, CSA, cULus, IEC, KEMA, RINA, UL |
| Temp Rating | -25C to 70C |
| Construction Features | Current Limiting, HACR Rated, Reverse Feed, Double Insulation, Positive Operation, Suitable for Single Phase Application |
Product FAQs
6 answersWhich panelboards and switchboards are compatible with the XT4HU3200BYJ000XXX?
This breaker is designed for use with ABB ReliaGear neXT panelboards, ReliaGear SB switchboards, and SACE Tmax XT panelboards.
What does the LI designation mean for this thermal-magnetic trip unit?
The LI code indicates Long-Time and Instantaneous protection. On this specific XT4 model, both the thermal overload (Long-Time) and magnetic short-circuit (Instantaneous) trip points are adjustable, allowing for precise coordination with your system loads.
Can this ABB XT4 breaker be used in DC electrical systems?
Yes, it is fully rated for direct current applications. It provides an interrupting capacity of 50kA at 250VDC and 65kA at 600VDC, making it suitable for industrial DC controls, battery systems, or solar applications.
What wire sizes and materials do the factory lugs accept?
The included lugs are rated for dual-rated use with both copper (Cu) and aluminum (Al) conductors. They accept wire gauges ranging from 4 AWG up to 300 kcmil.
How is this unit mount breaker installed?
As a unit mount breaker, it bolts directly to the enclosure backpan or mounting surface rather than plugging into a busbar. Electrical connections are then made by landing cables directly into the breaker lugs.
Why is this ABB breaker listed with General Electric as a parent brand?
ABB acquired GE Industrial Solutions. The SACE Tmax XT series is the current generation of breakers used in modern ReliaGear panels, which replaced legacy GE distribution equipment lines.
