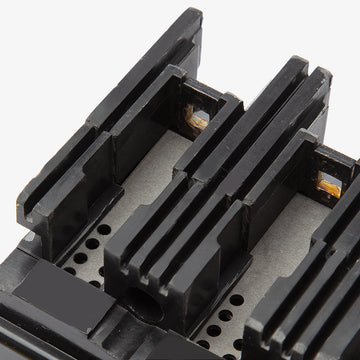

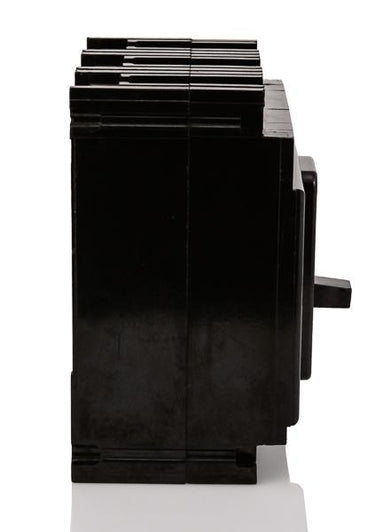

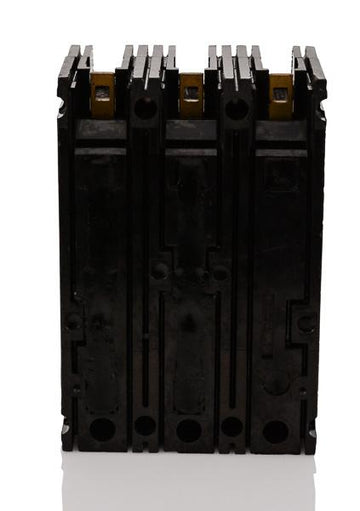

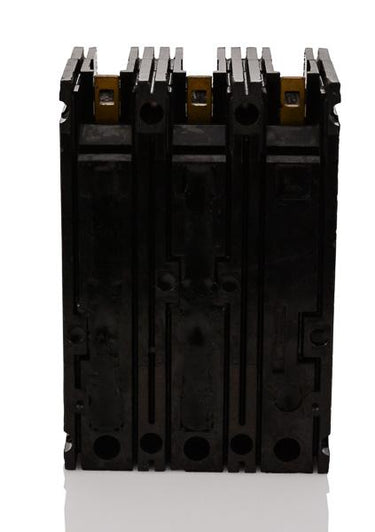

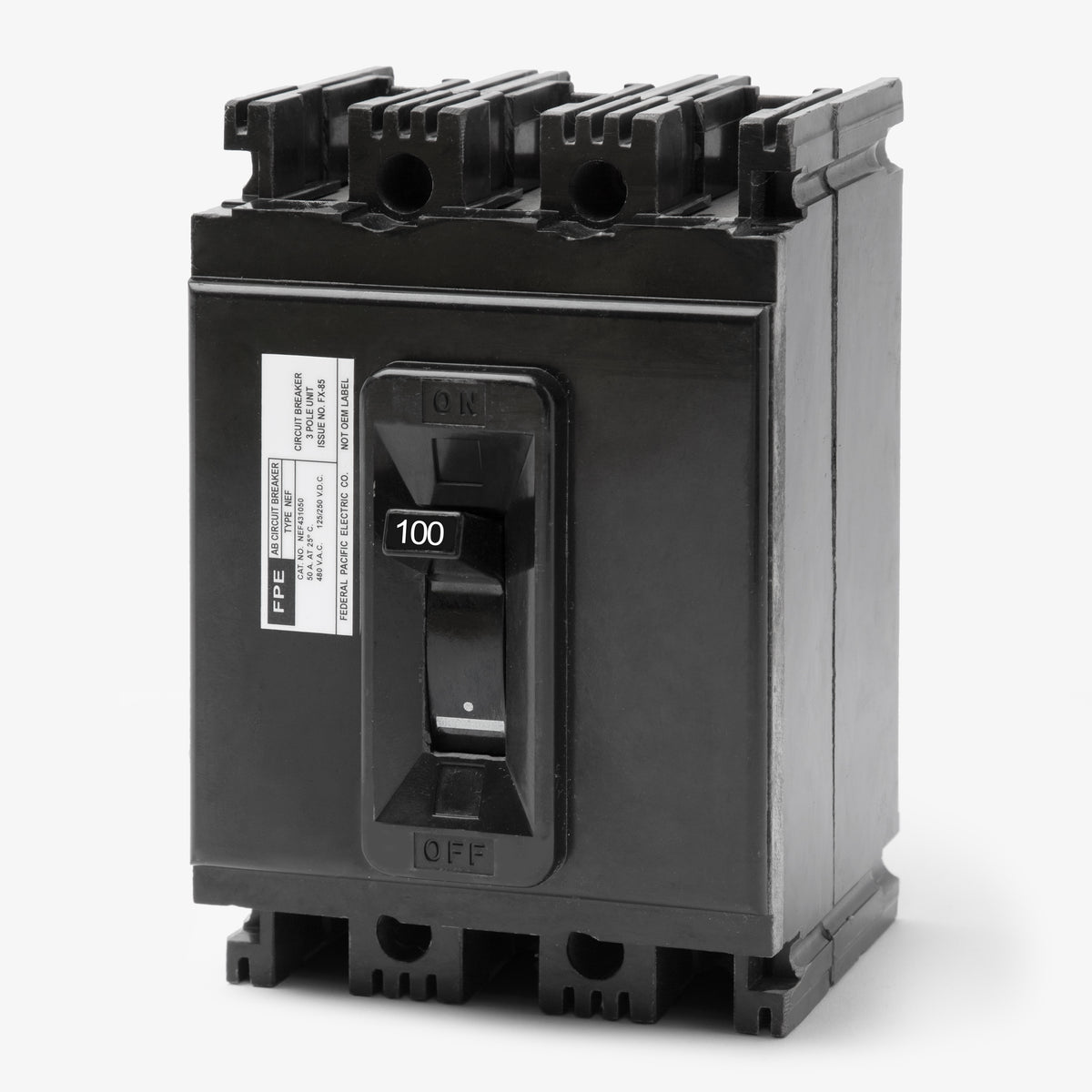

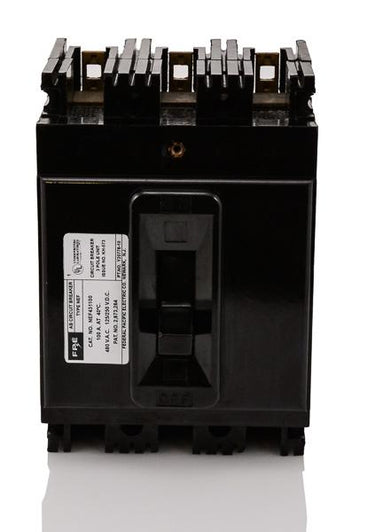

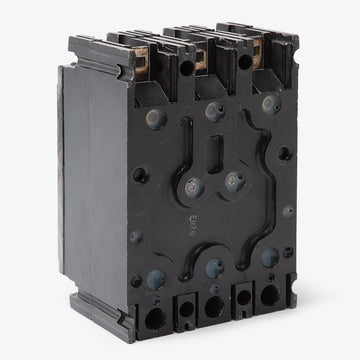

Federal Pacific / American NEF431100 Molded Case Circuit Breaker
- 100A
- 3 Pole
- Bolt-On
Federal Pacific / American
NEF431100
Molded Case Circuit Breaker
Brand
Federal Pacific / American
SKU
NEF431100
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Federal Pacific / American NEF431100 - 100A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
100A 3 Pole Molded Case Circuit Breaker
100A 3 Pole Molded Case Circuit Breaker
90A 3 Pole Molded Case Circuit Breaker
Description
Engineered to maintain older electrical systems, the Federal Pacific NEF431100 is a 100A, 3-pole molded case circuit breaker. It provides essential long-time and instantaneous protection for commercial and industrial facilities relying on legacy infrastructure. This N-Frame breaker installs seamlessly into Federal Pacific NEF panelboards.Specifications
| Brand | Federal Pacific / American |
|---|---|
| Part Number | NEF431100-R |
| Series | NEF |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 14kA @ 480VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Federal Pacific NEF Panelboards |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2, UL 486B, UL 489, UL 1087 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip, Reverse Feed |
Product FAQs
4 answersWhat panelboards accept the NEF431100 circuit breaker?
This N-Frame breaker is engineered specifically to install into legacy Federal Pacific NEF panelboards. It serves as a direct replacement component for maintaining existing commercial and industrial distribution systems without requiring a full panel retrofit.
How is the NEF431100 installed into the panel?
It utilizes a bolt-on mounting configuration. The breaker bolts directly to the panelboard bus, which ensures a secure, high-contact electrical connection that resists loosening from vibration in industrial environments.
Is the American NEF431100 a direct replacement for original FPE breakers?
Yes. American Circuit Breaker manufactures the NEF431100 as an exact-fit replacement for the obsolete Federal Pacific Electric (FPE) NEF431100. It matches the original N-Frame dimensions and mounting hardware requirements.
How does the thermal magnetic trip unit operate in the NEF431100?
The breaker features fixed thermal and fixed magnetic trip elements, designated by the LI (Long-Time, Instantaneous) trip function code. The thermal element protects against sustained overloads by heating up and tripping, while the magnetic element provides immediate interruption when a high-current short circuit is detected.
