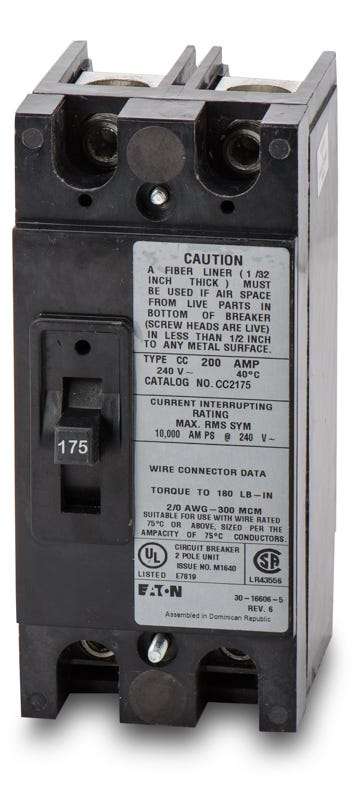

Eaton / Cutler-Hammer CC2175 Molded Case Circuit Breaker
- 175A
- 2 Pole
- Unit Mount
Eaton / Cutler-Hammer
CC2175
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
CC2175
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer CC2175 - 175A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer CC2175 - 175A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CC2175 |
| Series | CC |
| Amperage | 175A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | 1MP, 1MM, 3MM Meter Stacks, Type ECC Unit Enclosures |
| Wire Gauge | 2/0 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 2/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | Tenant Main |
Sold out
Quantity
Eaton / Cutler-Hammer CC2175 - 175A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CC2175-R |
| Series | CC |
| Amperage | 175A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | 1MP, 1MM, 3MM Meter Stacks, Type ECC Unit Enclosures |
| Wire Gauge | 2/0 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 2/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | Tenant Main |
Similar Items
225A 2 Pole Molded Case Circuit Breaker
125A 2 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerCHH2175H4X
175A 2 Pole Molded Case Circuit Breaker
Description
Built for main service applications, the CC2175 is a 175A, two-pole molded case circuit breaker from Eaton. It serves as a tenant main disconnect in multi-metering environments, ensuring safe power distribution. This breaker is compatible with 1MP, 1MM, and 3MM meter stacks, along with Type ECC enclosures. It features a unit-mount design and is replaced by the newer CCV2175 model. Delivering a 10kAIC rating at 120/240VAC, it comes equipped with lugs for #2/0 AWG to 300 kcmil conductors.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CC2175 |
| Series | CC |
| Amperage | 175A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | 1MP, 1MM, 3MM Meter Stacks, Type ECC Unit Enclosures |
| Wire Gauge | 2/0 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 2/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | Tenant Main |
Product FAQs
5 answersWhat enclosures and meter stacks are compatible with the CC2175?
This breaker is designed for use in Eaton 1MP, 1MM, and 3MM modular meter stacks, as well as Type ECC unit enclosures.
What wire sizes are accepted by the lugs on this breaker?
The factory-installed lugs accommodate copper or aluminum conductors ranging from 2/0 AWG to 300 kcmil.
Is there a newer replacement model available for the CC2175?
Yes, the CC2175 has been superseded by the newer CCV2175 model, which serves as a direct replacement for tenant main applications in compatible meter stacks and enclosures.
What type of trip unit does this breaker use?
It is equipped with a thermal-magnetic trip unit that provides fixed long-time and instantaneous (LI) overcurrent protection.
How is this circuit breaker mounted?
It features a unit mount, feed-thru design that bolts directly into compatible meter stacks and enclosures to serve as a tenant main disconnect.
