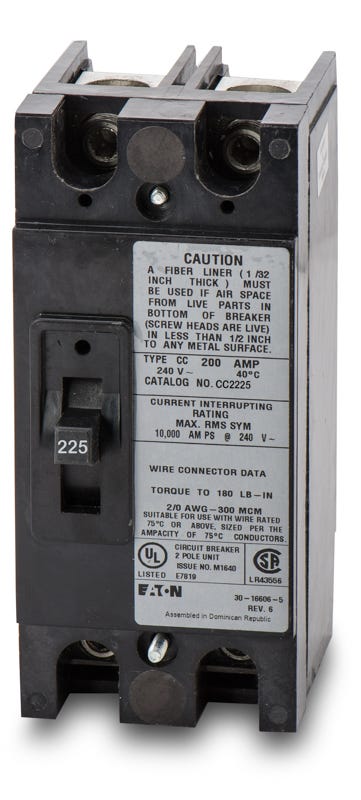

Eaton / Cutler-Hammer CC2225 Molded Case Circuit Breaker
- 225A
- 2 Pole
- Unit Mount
Eaton / Cutler-Hammer
CC2225
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
CC2225
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer CC2225 - 225A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer CC2225 - 225A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CC2225 |
| Series | CC |
| Amperage | 225A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | CC |
|---|---|
| Terminal Type | Lugs |
| For Use With | 1MP, 1MM, 3MM Meter Stacks, Type ECC Unit Enclosures |
| Wire Gauge | 2/0 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 2/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | Tenant Main |
Sold out
Quantity
Eaton / Cutler-Hammer CC2225 - 225A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CC2225-R |
| Series | CC |
| Amperage | 225A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | CC |
|---|---|
| Terminal Type | Lugs |
| For Use With | 1MP, 1MM, 3MM Meter Stacks, Type ECC Unit Enclosures |
| Wire Gauge | 2/0 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 2/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | Tenant Main |
Similar Items
175A 2 Pole Molded Case Circuit Breaker
125A 2 Pole Molded Case Circuit Breaker
Description
Serving as a robust tenant main, the CC2225 is a 225A, 2-pole molded case circuit breaker by Eaton. It delivers dependable thermal-magnetic protection for metering systems. Designed for unit mounting, it integrates with 1MP, 1MM, and 3MM meter stacks, as well as Type ECC enclosures. Users can utilize the CCV2225 as an exact replacement. With a 10kAIC rating at 120/240VAC, it ensures safe fault interruption using fixed LI trip functions. The unit comes equipped with factory-installed lugs.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CC2225 |
| Series | CC |
| Amperage | 225A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | CC |
|---|---|
| Terminal Type | Lugs |
| For Use With | 1MP, 1MM, 3MM Meter Stacks, Type ECC Unit Enclosures |
| Wire Gauge | 2/0 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 2/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | Tenant Main |
Product FAQs
7 answersWhich Eaton enclosures and meter stacks are compatible with the CC2225?
This breaker is engineered for use in Eaton 1MP, 1MM, and 3MM modular meter stacks. It is also compatible with Type ECC unit enclosures, such as the ECC225R, for standalone applications.
What wire sizes and materials are accepted by the lugs on the CC2225?
The factory-installed lugs accept both copper and aluminum conductors ranging from 2/0 AWG to 300 kcmil. Ensure proper torque specifications are followed during installation.
What does the Feed-Thru connection type mean for this breaker?
A feed-thru configuration means the breaker features lugs on both the line and load sides. It is a unit-mount breaker that does not plug on or bolt directly to a panelboard busbar.
Is there a direct replacement available for the legacy CC2225?
Yes, Eaton designates the CCV2225 as the direct replacement for the CC2225. Both breakers share the same 225A capacity and 10kAIC rating at 240V, though minor hardware differences exist such as mounting screw length.
What type of trip unit is equipped on the CC2225?
It features a thermal magnetic trip unit with fixed long-time and instantaneous (LI) trip functions. It does not support adjustable trip settings.
Can the CC2225 be used on a 3-phase system?
No, the CC2225 is a 2-pole, single-phase breaker rated for 120/240VAC applications. It is not designed for 3-phase systems.
What safety precautions should be taken when installing the CC2225 in a meter stack?
Always verify that power is completely disconnected upstream before installation. Ensure that the conductors are properly torqued to prevent arcing or thermal issues, and confirm the 10kAIC rating meets the available fault current requirements of the facility.
