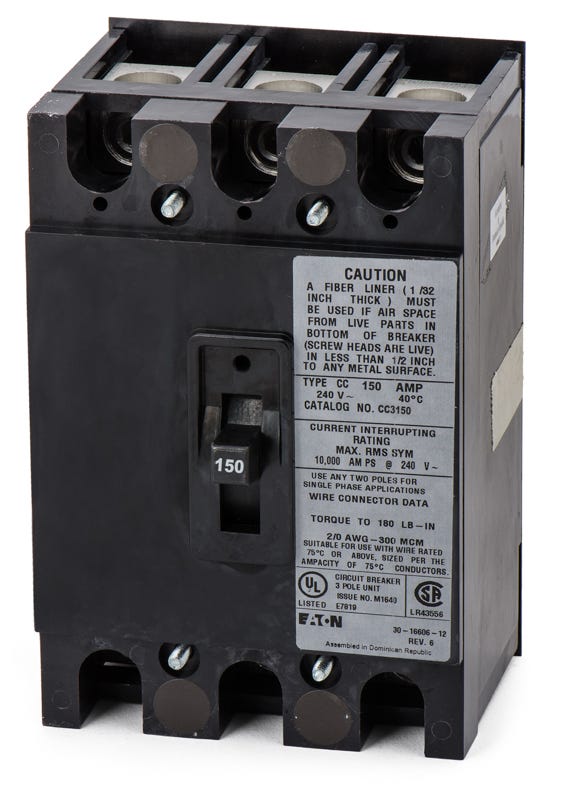

Eaton / Cutler-Hammer CC3150 Molded Case Circuit Breaker
- 150A
- 3 Pole
- Unit Mount
Eaton / Cutler-Hammer
CC3150
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
CC3150
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer CC3150 - 150A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer CC3150 - 150A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CC3150 |
| Series | CC |
| Amperage | 150A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | 1MP, 1MM, 3MM Meter Stacks, Type ECC Unit Enclosures |
| Wire Gauge | 4 AWG - 4/0 AWG (Cu/Al) |
| Max Wire | 4/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | Tenant Main |
Quantity
Eaton / Cutler-Hammer CC3150 - 150A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CC3150-R |
| Series | CC |
| Amperage | 150A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | 1MP, 1MM, 3MM Meter Stacks, Type ECC Unit Enclosures |
| Wire Gauge | 4 AWG - 4/0 AWG (Cu/Al) |
| Max Wire | 4/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | Tenant Main |
Similar Items
100A 3 Pole Molded Case Circuit Breaker
R - 150A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerCHH3150H2X
150A 3 Pole Molded Case Circuit Breaker
Description
Designed specifically for multi-tenant environments, this 150A molded case circuit breaker delivers robust overcurrent protection. It operates as a primary tenant main disconnect for both residential and commercial electrical systems. The breaker mounts into Eaton 1MP, 1MM, and 3MM meter stacks, as well as Type ECC unit enclosures. For future upgrades, it is officially replaced by the CCV3150 model. It features standard LI trip functions and provides a 10kAIC interrupt rating at 240VAC.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CC3150 |
| Series | CC |
| Amperage | 150A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | 1MP, 1MM, 3MM Meter Stacks, Type ECC Unit Enclosures |
| Wire Gauge | 4 AWG - 4/0 AWG (Cu/Al) |
| Max Wire | 4/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | Tenant Main |
Product FAQs
5 answersWhat is the primary application for the Eaton CC3150 circuit breaker?
It is designed specifically for multi-tenant environments, operating as a primary tenant main disconnect for both residential and commercial multi-metering systems.
Which enclosures and meter modules are compatible with this tenant main breaker?
It directly mounts into Eaton 1MP, 1MM, and 3MM meter stacks, as well as Type ECC unit enclosures.
Is there a direct upgrade or newer replacement model for the CC3150?
Yes, for future upgrades or replacing older panel components, the CC3150 is officially replaced by the Eaton CCV3150 molded case circuit breaker.
What temperature rating is required for the conductors connected to the CC3150?
The line and load lugs are rated for use with 60 degrees C or 75 degrees C rated copper or aluminum conductors.
Which safety standards govern this molded case circuit breaker?
The CC3150 is UL 489 listed and CSA C22.2 certified for safe operation as a primary main disconnect.
