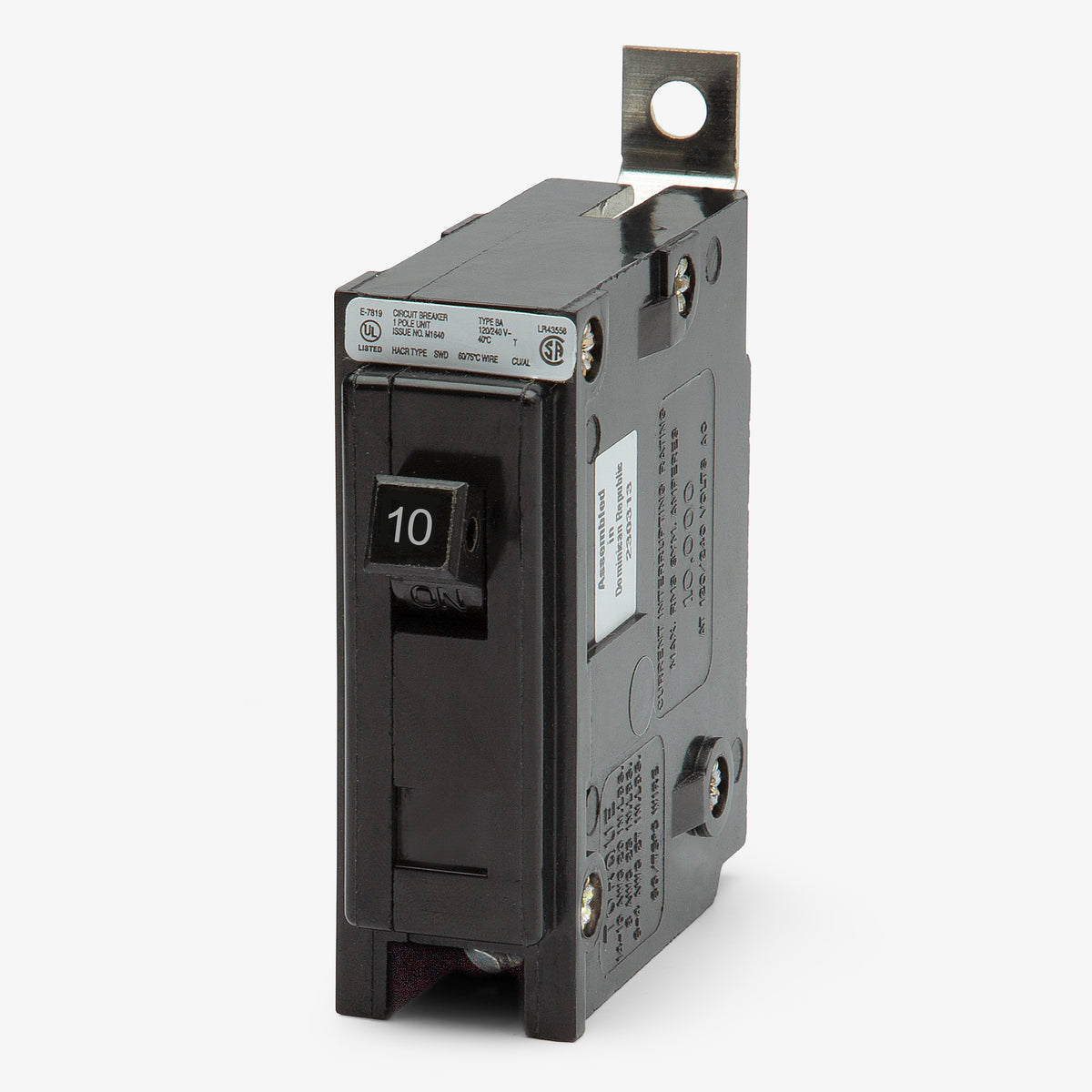

Eaton / Cutler-Hammer BAB1010 Miniature Circuit Breaker
- 10A
- 1 Pole
- Bolt-On
Eaton / Cutler-Hammer
BAB1010
Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
BAB1010
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer BAB1010 - 10A 1 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
20A 1 Pole Miniature Circuit Breaker
Eaton / Cutler-HammerBABRP1020
20A 1 Pole Miniature Circuit Breaker
20A 1 Pole Miniature Circuit Breaker
Description
Operating at 120/240V, this single-pole Quicklag breaker handles 10A loads in commercial and industrial environments. It mounts securely into Eaton Pow-R-Line, Westinghouse, and Cutler-Hammer panelboards using a standard bolt-on configuration. Featuring a 10kAIC rating and fixed thermal-magnetic trip technology, the unit ensures consistent performance while serving as a reliable substitute for older QNBL1010 and QBHW1010 models.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BAB1010 |
| Series | BAB |
| Amperage | 10A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC, 24VDC, 48VDC, 62.5VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC, 5kA @ 24VDC, 5kA @ 48VDC, 3.8kA @ 62.5VDC |
| Frame Type | BAB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Pow-R-Line Panelboards, Westinghouse Panelboards, Cutler-Hammer Panelboards |
| Wire Gauge | 14-4 AWG (Al/Cu) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment, Handle Lock |
|---|---|
| Accessories | Extended Tang Line Terminal |
| Standards | UL 489, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Product FAQs
8 answersWhat panelboards are compatible with the BAB1010 circuit breaker?
The BAB1010 is designed for commercial Eaton Pow-R-Line panelboards, including models like the PRL1a, PRL2a, PRL1X, and PRL2X. It is also fully backward compatible with legacy Westinghouse and Cutler-Hammer bolt-on panelboards.
Can I use the BAB1010 to replace an older Westinghouse BAB breaker?
Yes. Eaton acquired the Westinghouse distribution equipment line, so the modern Eaton BAB1010 is a direct, exact replacement for older Westinghouse and Cutler-Hammer BAB breakers with the same specifications.
What is the difference between Eaton, Cutler-Hammer, and Quicklag BAB breakers?
There is no functional difference. Quicklag is the original product family name, while Cutler-Hammer and Westinghouse were the original manufacturers. Eaton now owns these brands and continues to manufacture the BAB frame under the Eaton Cutler-Hammer name, making them fully interchangeable.

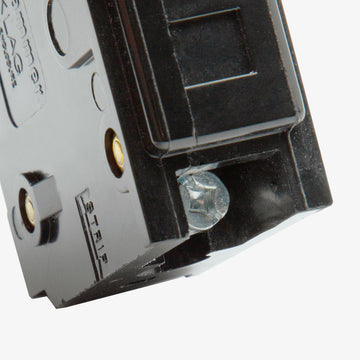

Do I need special terminals to use aluminum wire with the BAB1010?
No, the factory-installed box lugs are dual-rated for both copper and aluminum conductors ranging from 14 AWG to 4 AWG. When using aluminum wire, it is recommended to apply an appropriate oxide inhibitor before terminating.
Is the BAB1010 suitable for DC control circuits?
Yes, this breaker is rated for low-voltage DC applications. It provides a 5kA interrupting capacity at 24VDC and 48VDC, and a 3.8kA interrupting capacity at 62.5VDC, making it versatile for industrial control panels.
What does the LI trip function mean on the BAB1010?
The LI designation indicates that the breaker utilizes a thermal-magnetic trip unit to provide Long-Time (L) overload protection and Instantaneous (I) short-circuit protection. These trip thresholds are fixed at the factory and cannot be adjusted.

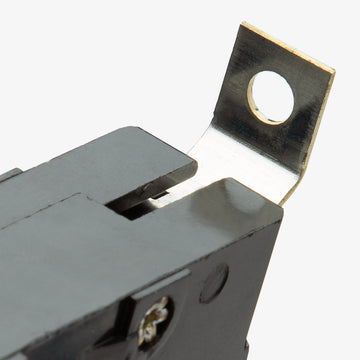

Why choose a bolt-on breaker like the BAB1010 over a plug-on style?
Bolt-on breakers physically screw into the panelboard bus. This creates a secure, vibration-resistant connection that prevents the breaker from loosening over time, which is required in commercial and industrial environments. They cannot be used in standard residential plug-on load centers.
Can I install the BAB1010 in an Eaton BR or CH series load center?
No. The BAB1010 is a bolt-on breaker designed exclusively for commercial panelboards. Eaton BR and CH series load centers require specific plug-on breakers and do not have the threaded bus connections needed for a bolt-on installation.
