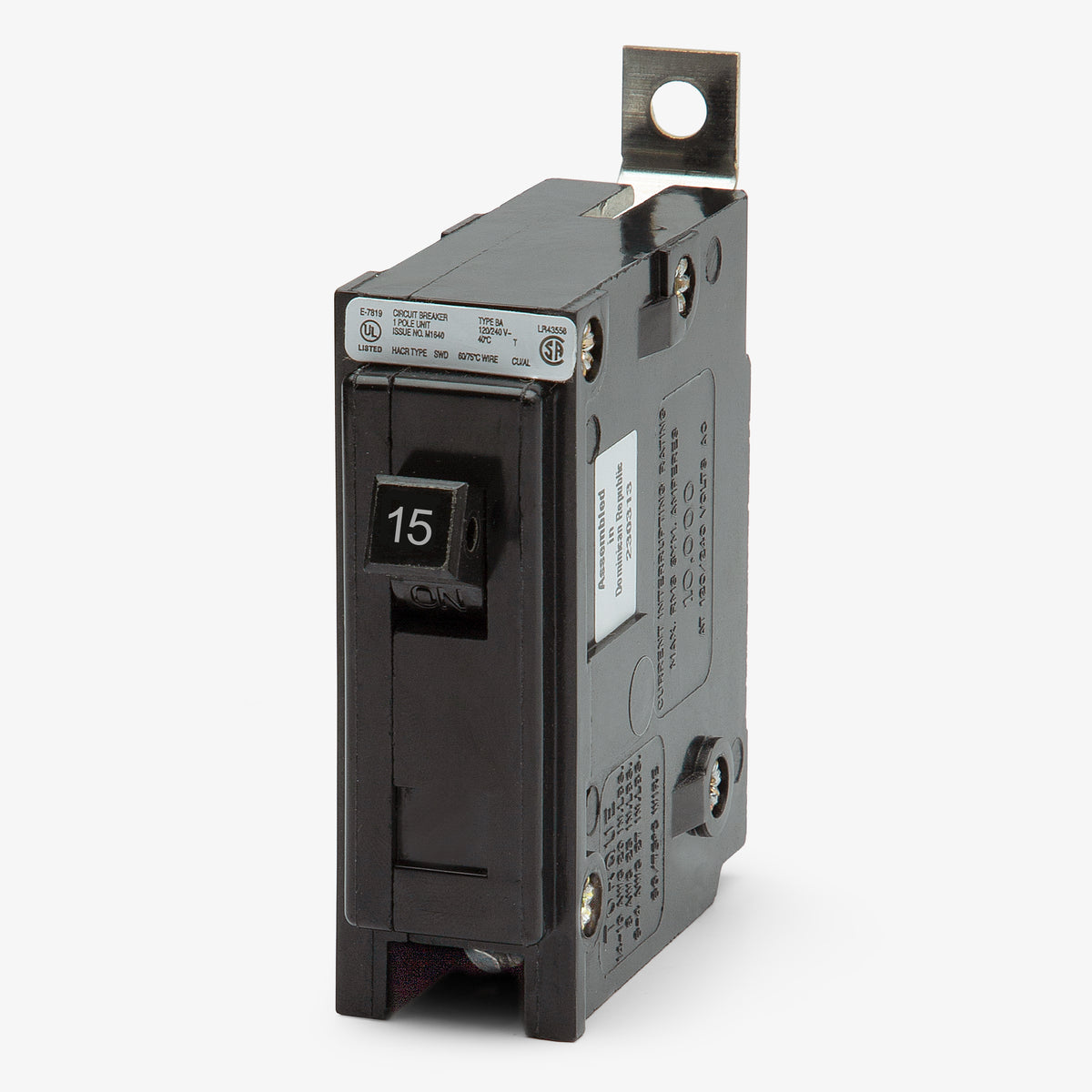

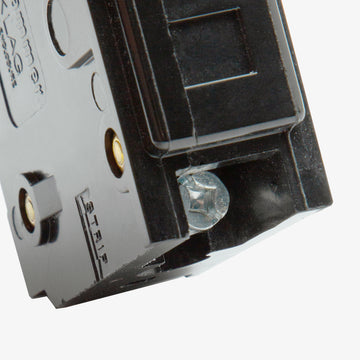

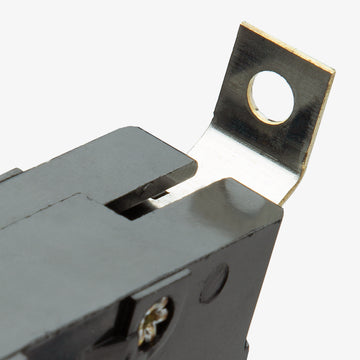

Eaton / Cutler-Hammer BAB1015 Miniature Circuit Breaker
- 15A
- 1 Pole
- Bolt-On
Eaton / Cutler-Hammer
BAB1015
Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
BAB1015
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer BAB1015 - 15A 1 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer BAB1015 - 15A 1 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BAB1015 |
| Series | BAB |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC, 24VDC, 48VDC, 62.5VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC, 5kA @ 24VDC, 5kA @ 48VDC, 3.8kA @ 62.5VDC |
| Frame Type | BAB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Pow-R-Line Panelboards, Westinghouse Panelboards, Cutler-Hammer Panelboards, Bryant Panelboards |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment, Handle Lock |
|---|---|
| Standards | CSA C22.2 No. 5, HACR, SWD, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated, HID Rated |
Quantity
Eaton / Cutler-Hammer BAB1015 - 15A 1 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BAB1015-R |
| Series | BAB |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC, 24VDC, 48VDC, 62.5VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC, 5kA @ 24VDC, 5kA @ 48VDC, 3.8kA @ 62.5VDC |
| Frame Type | BAB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Pow-R-Line Panelboards, Westinghouse Panelboards, Cutler-Hammer Panelboards, Bryant Panelboards |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment, Handle Lock |
|---|---|
| Standards | CSA C22.2 No. 5, HACR, SWD, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated, HID Rated |
Similar Items
Eaton / Cutler-HammerBABRP1020
20A 1 Pole Miniature Circuit Breaker
20A 1 Pole Miniature Circuit Breaker
10A 1 Pole Miniature Circuit Breaker
Description
Part of the Quicklag family, this 15-amp single-pole breaker offers specialized SWD and HACR ratings for fluorescent lighting and air conditioning equipment. It fastens securely into Eaton, Westinghouse, and Bryant panelboards using standard bolt-on terminals. With a 10kA interrupting capacity, the thermal-magnetic unit ensures reliable commercial circuit defense and acts as a seamless cross-reference for legacy QB and BA models.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BAB1015 |
| Series | BAB |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC, 24VDC, 48VDC, 62.5VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC, 5kA @ 24VDC, 5kA @ 48VDC, 3.8kA @ 62.5VDC |
| Frame Type | BAB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Pow-R-Line Panelboards, Westinghouse Panelboards, Cutler-Hammer Panelboards, Bryant Panelboards |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment, Handle Lock |
|---|---|
| Standards | CSA C22.2 No. 5, HACR, SWD, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated, HID Rated |
Product FAQs
5 answersIs the Eaton BAB1015 the same as the Westinghouse BAB1015?
Yes. Eaton acquired the Westinghouse electrical distribution business and now manufactures the Quicklag BAB series. The Eaton BAB1015 is the direct, exact replacement for legacy Westinghouse and Cutler-Hammer BAB1015 breakers.
Which panelboards are compatible with the BAB1015 breaker?
This breaker is designed for commercial bolt-on panelboards. It fits Eaton and Cutler-Hammer Pow-R-Line 1a, 2a, 1X, and 2X series panelboards, as well as legacy Westinghouse and Bryant panels configured for BAB and QBHW type subchassis.
Is the 15A BAB1015 breaker SWD and HACR rated?
Yes. The BAB1015 carries an SWD (Switching Duty) rating for 120VAC fluorescent lighting applications, and an HACR rating, making it suitable for heating, air conditioning, and refrigeration equipment circuits.
Can I install the BAB1015 in a standard residential load center?
No. The BAB1015 features a bolt-on connection type intended for commercial panelboards. It will not fit in residential plug-on load centers, which typically require BR or CH style breakers.
Can I use the BAB1015 to replace a QBHW1015 breaker?
While they share the same physical dimensions and bolt-on mounting, the BAB1015 has a 10kAIC rating, whereas the QBHW1015 has a 22kAIC rating. You should only substitute the BAB1015 if the available fault current at the panel requires 10kAIC or less.
