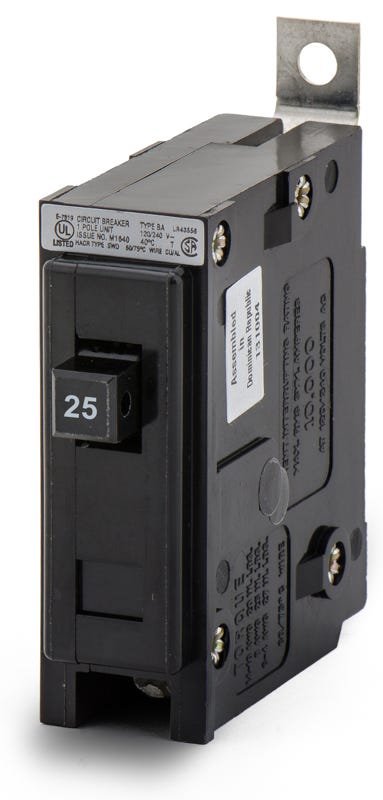

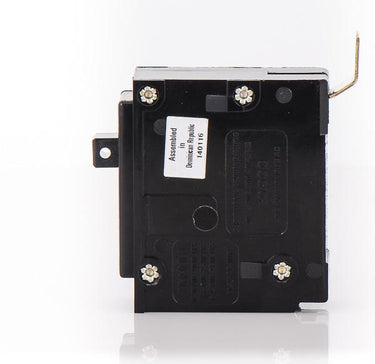

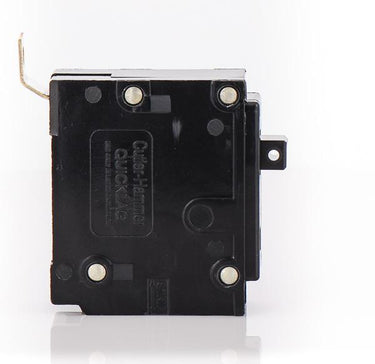

Eaton / Cutler-Hammer BAB1025 Miniature Circuit Breaker
- 25A
- 1 Pole
- Bolt-On
Eaton / Cutler-Hammer
BAB1025
Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
BAB1025
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer BAB1025 - 25A 1 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerBABRP1030
30A 1 Pole Miniature Circuit Breaker
30A 1 Pole Miniature Circuit Breaker
20A 1 Pole Miniature Circuit Breaker
Description
Designed for commercial and industrial electrical systems, this 25A single-pole breaker delivers consistent thermal-magnetic protection. It installs seamlessly into Eaton Pow-R-Line, Cutler-Hammer, and legacy Westinghouse panelboards using a secure bolt-on connection. Serving as an exact replacement for older QNBL1025 units, it maintains a standard 10kA interrupting capacity at 120/240V. The HACR rating ensures suitability for heating, air conditioning, and refrigeration equipment circuits.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BAB1025 |
| Series | BAB |
| Amperage | 25A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC, 24VDC, 48VDC, 62.5VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC, 5kA @ 24VDC, 5kA @ 48VDC, 3.8kA @ 62.5VDC |
| Frame Type | BAB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Pow-R-Line Panelboards, Westinghouse Panelboards, Cutler-Hammer Panelboards, Bryant Panelboards |
| Wire Gauge | 14-4 AWG (Al/Cu) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment, Handle Lock |
|---|---|
| Accessories | Extended Tang Line Terminal |
| Standards | HACR, UL 489, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Product FAQs
8 answersWhich panelboards are compatible with the BAB1025 circuit breaker?
The BAB1025 is compatible with modern Eaton Pow-R-Line panelboards. It is also designed to fit legacy Westinghouse, Cutler-Hammer, and Bryant panelboards that accept bolt-on BAB frame breakers.
Will the BAB1025 fit in a standard residential plug-on load center?
No. The BAB1025 features a bolt-on connection designed specifically for commercial and industrial panelboards. It cannot be used in Eaton BR, CH, or other residential load centers that require plug-on or snap-in breakers.
What are the terminal torque specifications for installing the BAB1025 breaker?
Eaton specifies a terminal torque of 20 in-lbs for 14 to 10 AWG wire, 25 in-lbs for 8 AWG wire, and 27 in-lbs for 6 to 4 AWG wire.
How much space does the BAB1025 occupy in a panelboard?
As a 1-pole miniature circuit breaker in the Quicklag family, the BAB1025 requires a single 1-inch wide space on the panelboard bus.
Is the BAB1025 rated for heating, refrigeration, and commercial lighting loads?
Yes, this miniature circuit breaker is HACR rated for heating, air conditioning, and refrigeration equipment. It is also rated for High Intensity Discharge (HID) lighting applications.
Can the BAB1025 be used in DC electrical applications?
Yes. While primarily rated for 120/240V AC systems, it also carries specific direct current ratings. It is rated to safely interrupt 5 kAIC at 24V or 48V DC, and 3.8 kAIC at 62.5V DC.
How does the thermal-magnetic trip unit protect the electrical circuit?
The BAB1025 features both fixed thermal and fixed magnetic trip elements. The thermal component provides long-time delay protection against sustained overloads, while the magnetic component triggers an instantaneous trip to safely clear severe short circuits.
Can the Eaton BAB1025 replace legacy Cutler-Hammer or Westinghouse breakers?
Yes. Eaton acquired these legacy brands and continues to manufacture the Quicklag BAB line. The modern Eaton BAB1025 is a direct, exact replacement for older Cutler-Hammer, Westinghouse, and Bryant breakers bearing the same BAB1025 catalog number.
