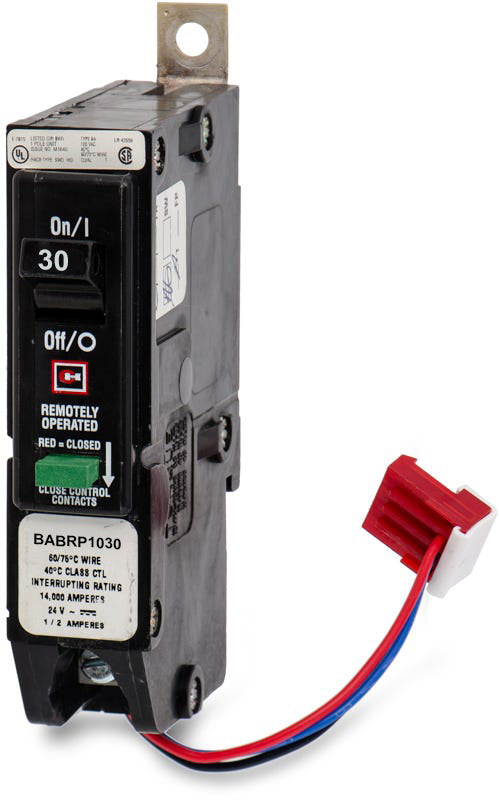

Eaton / Cutler-Hammer BABRP1030 Miniature Circuit Breaker
- 30A
- 1 Pole
- Bolt-On
Eaton / Cutler-Hammer
BABRP1030
Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
BABRP1030
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer BABRP1030 - 30A 1 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
30A 1 Pole Miniature Circuit Breaker
35A 1 Pole Miniature Circuit Breaker
25A 1 Pole Miniature Circuit Breaker
Description
Built for advanced commercial applications, the BABRP1030 combines standard overcurrent protection with remote-controlled switching. This 30-amp Quicklag breaker is an essential component for energy management systems, allowing automated lighting loads. The device features a bolt-on mounting configuration tailored for Eaton Pow-R-Line panelboards. Integrating the control solenoid simplifies wiring. Rated at 10 kAIC at 120VAC, this single-pole unit is HACR rated for HVAC equipment.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BABRP1030 |
| Series | BAB |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | BAB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Pow-R-Line Panelboards |
| Wire Gauge | 14-10 AWG (Al/Cu) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment, Handle Lock |
|---|---|
| Accessories | Integral Remote Control Solenoid |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
Product FAQs
6 answersWhich panelboards accept the BABRP1030 circuit breaker?
This bolt-on breaker is designed exclusively for Eaton Pow-R-Line panelboards. It secures directly to the busbar using a bolt-on connection for a stable, vibration-resistant installation.
What is the purpose of the "RP" designation in the BABRP1030 part number?
The "RP" indicates that this is a remotely operated breaker. It features an integrated solenoid that allows the breaker to be pulsed on and off remotely via a PLC, relay, or pushbutton. This makes it ideal for automated lighting control and energy management systems.
Can the BABRP1030 be used to protect HVAC circuits?
Yes, this breaker is HACR rated. It is certified for use with heating, air conditioning, and refrigeration equipment that requires a 30A, 120VAC single-pole circuit.
Are Cutler-Hammer and Westinghouse BABRP1030 breakers interchangeable with the Eaton version?
Yes. Eaton acquired the Cutler-Hammer and Westinghouse electrical distribution lines. Breakers marked with the BABRP1030 catalog number from any of these three brands are identical and fully interchangeable.
What wire gauge and material can be used with the BABRP1030 terminals?
The box lugs on this breaker accept 14 AWG to 10 AWG wire. Both aluminum and copper conductors are supported.
Does this breaker provide ground fault or arc fault protection?
No. The BABRP1030 is a standard thermal-magnetic breaker with remote switching capabilities. It provides long-time and instantaneous trip functions for overcurrent and short circuits, but it does not contain GFCI or AFCI protection.
