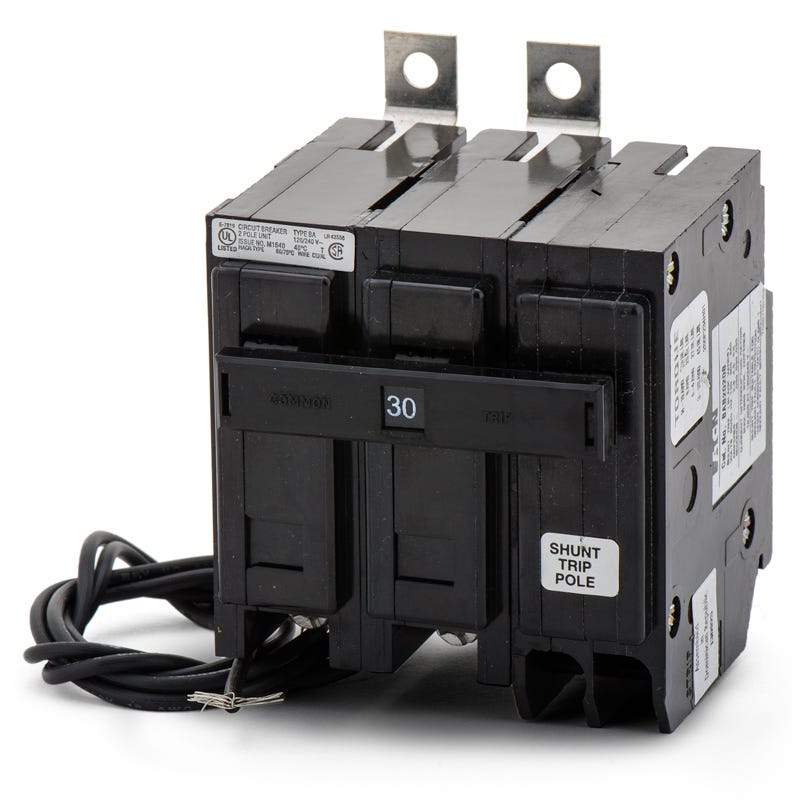

Eaton / Cutler-Hammer BAB2030S Miniature Circuit Breaker
- 30A
- 2 Pole
- Bolt-On
Eaton / Cutler-Hammer
BAB2030S
Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
BAB2030S
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer BAB2030S - 30A 2 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer BAB2030S - 30A 2 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BAB2030S |
| Series | BAB |
| Amperage | 30A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC, 24VDC, 48VDC, 62.5VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC, 5kA @ 24VDC, 5kA @ 48VDC, 3.8kA @ 62.5VDC |
| Frame Type | BAB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Pow-R-Line Panelboards, Westinghouse Panelboards, Cutler-Hammer Panelboards |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment, Handle Lock |
|---|---|
| Accessories | Shunt Trip |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Sold out
Quantity
Eaton / Cutler-Hammer BAB2030S - 30A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BAB2030S-R |
| Series | BAB |
| Amperage | 30A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC, 24VDC, 48VDC, 62.5VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC, 5kA @ 24VDC, 5kA @ 48VDC, 3.8kA @ 62.5VDC |
| Frame Type | BAB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Pow-R-Line Panelboards, Westinghouse Panelboards, Cutler-Hammer Panelboards |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment, Handle Lock |
|---|---|
| Accessories | Shunt Trip |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Similar Items
25A 2 Pole Miniature Circuit Breaker
40A 2 Pole Miniature Circuit Breaker
20A 2 Pole Miniature Circuit Breaker
Description
Engineered for commercial facilities, the Eaton BAB2030S is a 2-pole, 30A thermal-magnetic circuit breaker. It includes a built-in 120/208/240VAC shunt trip mechanism, allowing users to remotely disconnect power for safety purposes. The unit bolts securely into Eaton Pow-R-Line, Cutler-Hammer, and legacy Westinghouse panelboards. It provides a direct cross-reference for older QNBL2030 shunt trip models. Rated at 10 kAIC, this Quicklag breaker is HACR certified and accepts 14-4 AWG conductors.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BAB2030S |
| Series | BAB |
| Amperage | 30A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC, 24VDC, 48VDC, 62.5VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC, 5kA @ 24VDC, 5kA @ 48VDC, 3.8kA @ 62.5VDC |
| Frame Type | BAB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Pow-R-Line Panelboards, Westinghouse Panelboards, Cutler-Hammer Panelboards |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment, Handle Lock |
|---|---|
| Accessories | Shunt Trip |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Product FAQs
6 answersWhat does the S suffix in the BAB2030S part number indicate?
The S suffix designates that this circuit breaker is equipped with a factory-installed shunt trip. This mechanism allows for remote tripping of the breaker by sending a voltage signal to the coil, which is commonly used for emergency power-off systems.
Can the BAB2030S replace older Westinghouse circuit breakers?
Yes, Eaton continues to manufacture this breaker to be fully backward compatible with legacy Westinghouse and Cutler-Hammer panelboards. It also serves as a direct replacement for older QNBL2030 shunt trip models.
What is the advantage of the bolt-on connection for this breaker?
As a bolt-on breaker, the BAB2030S fastens directly to the panelboard bus with screws. This creates a secure, vibration-resistant electrical connection that is ideal for demanding commercial and industrial environments, preventing the breaker from shifting or loosening.
What specific protection does the LI trip function provide?
The fixed thermal-magnetic trip unit includes Long-Time (L) and Instantaneous (I) protection. The thermal element responds to sustained overloads by heating up over time, while the magnetic element forces an immediate trip to quickly clear severe short circuits.
Which panelboard systems are compatible with this Quicklag breaker?
The BAB2030S is designed for Eaton Pow-R-Line panelboards. It is also approved for installation in older Cutler-Hammer and Westinghouse commercial panelboards that are configured to accept BAB-frame bolt-on breakers.
Are the terminals on the BAB2030S rated for aluminum conductors?
Yes, the built-in box lugs are AL/CU rated, meaning they are certified to accept both aluminum and copper wiring. Installers must ensure the lugs are tightened to the specific torque values listed on the side of the breaker to maintain a compliant connection.
