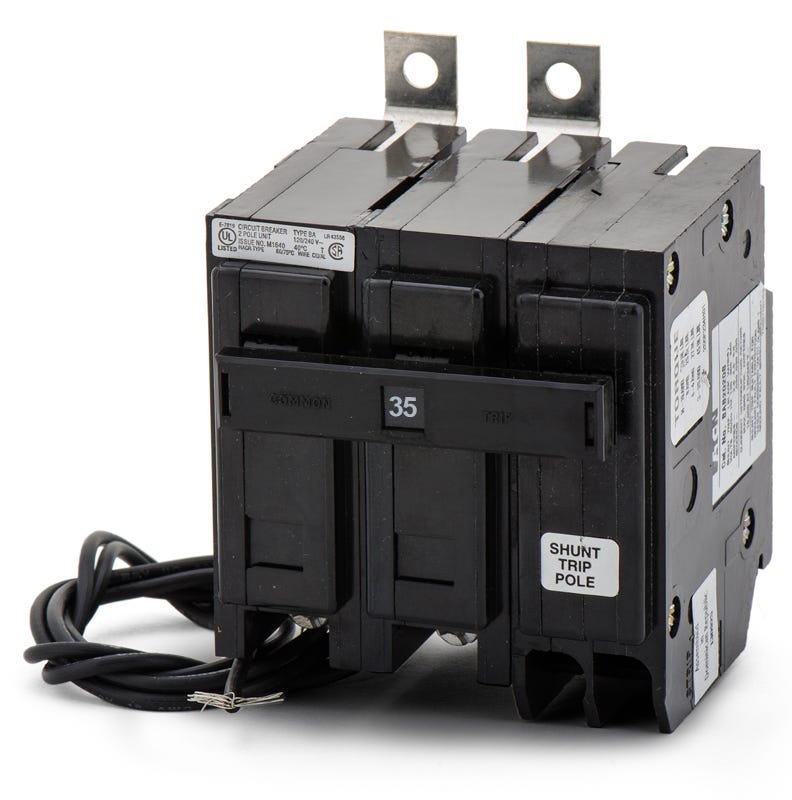

Eaton / Cutler-Hammer BAB2035S Miniature Circuit Breaker
- 35A
- 2 Pole
- Bolt-On
Eaton / Cutler-Hammer
BAB2035S
Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
BAB2035S
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer BAB2035S - 35A 2 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
30A 2 Pole Miniature Circuit Breaker
45A 2 Pole Miniature Circuit Breaker
25A 2 Pole Miniature Circuit Breaker
Description
Built for commercial and industrial applications, the BAB2035S features an integrated 120VAC shunt trip that enables remote tripping for enhanced safety and control. This two-pole, 35A breaker mounts into Eaton Pow-R-Line, Westinghouse, and Cutler-Hammer panelboards using a secure bolt-on connection. Delivering a 10kAIC interrupting rating at 120/240VAC, it utilizes reliable thermal-magnetic trip technology. The unit is HACR rated and replaces legacy QNBL2035 shunt trip breakers.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BAB2035S |
| Series | BAB |
| Amperage | 35A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC, 24VDC, 48VDC, 62.5VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC, 5kA @ 24VDC, 5kA @ 48VDC, 3.8kA @ 62.5VDC |
| Frame Type | BAB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Pow-R-Line Panelboards, Westinghouse Panelboards, Cutler-Hammer Panelboards |
| Wire Gauge | 14-4 AWG |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Shunt Trip (120VAC) |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Product FAQs
6 answersWhat does the "S" suffix indicate on the BAB2035S catalog number?
The "S" suffix designates that this breaker is equipped with a factory-installed 120VAC shunt trip. This allows the breaker to be tripped remotely for emergency shutdowns or automated control systems.
How does the 120VAC shunt trip function operate on the BAB2035S?
The shunt trip requires an external 120VAC control signal. When voltage is applied to the shunt trip coil, it mechanically forces the breaker to open, disconnecting power to the load. The shunt trip coil draws approximately 2.6A at 120VAC during the tripping action.
Can the BAB2035S replace older Westinghouse breakers?
Yes, the BAB2035S serves as a direct replacement for legacy Westinghouse QNBL2035 shunt trip breakers.
Is the BAB2035S suitable for use with heating and air conditioning equipment?
Yes, this breaker is HACR rated, making it suitable for use with heating, air conditioning, and refrigeration equipment that requires a 35-amp overcurrent protection device.
How is the BAB2035S installed into a panelboard?
This breaker features a bolt-on connection. It must be mechanically bolted directly to the busbar of a compatible Eaton Pow-R-Line, Cutler-Hammer, or Westinghouse panelboard. It cannot be used in plug-on load centers or DIN rail applications.
How much panel space does the BAB2035S require?
As a 2-pole miniature circuit breaker in the Quicklag family, the BAB2035S requires two standard 1-inch spaces in a compatible panelboard.
