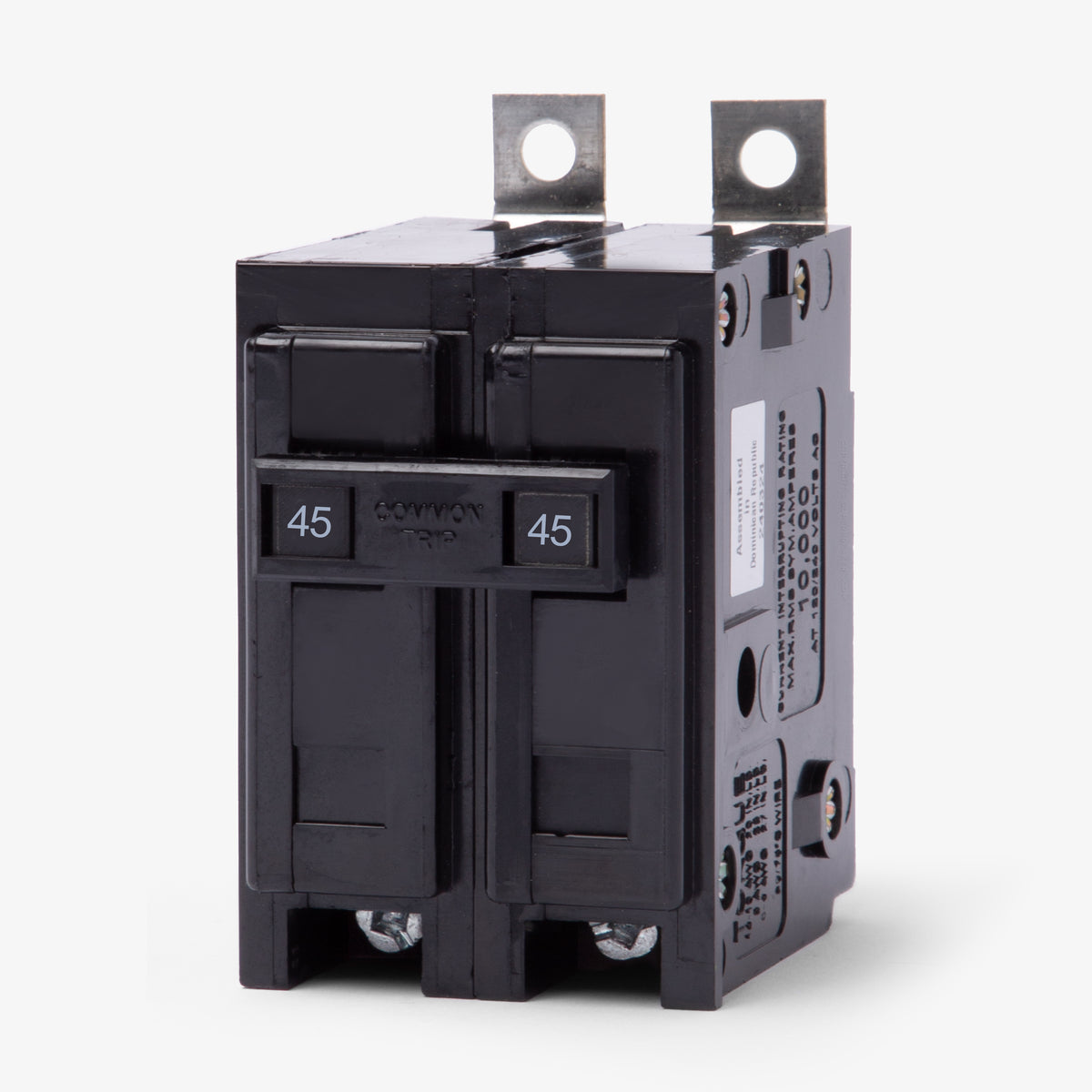

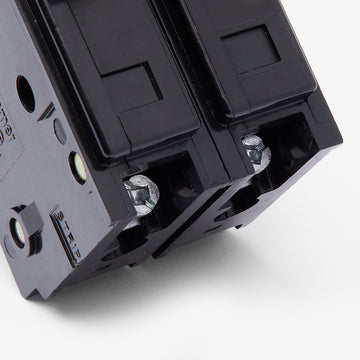

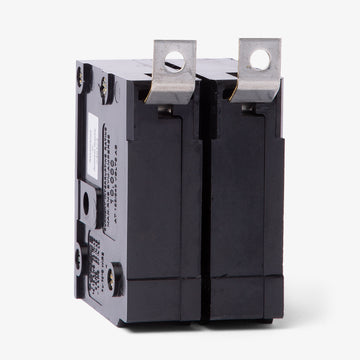

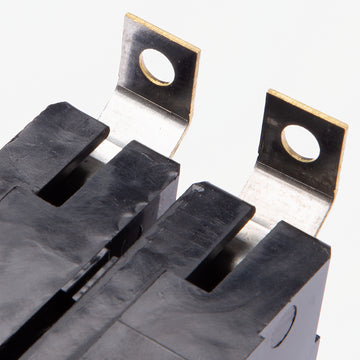

Eaton / Cutler-Hammer BAB2045 Miniature Circuit Breaker
- 45A
- 2 Pole
- Bolt-On
Eaton / Cutler-Hammer
BAB2045
Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
BAB2045
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer BAB2045 - 45A 2 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
50A 2 Pole Miniature Circuit Breaker
50A 2 Pole Miniature Circuit Breaker
40A 2 Pole Miniature Circuit Breaker
Description
Engineered for commercial environments, the BAB2045 provides 10kAIC interrupting capacity at 120/240V. This two-pole Quicklag unit mounts securely into Eaton Pow-R-Line, Westinghouse, and legacy Cutler-Hammer panelboards. Featuring fixed thermal and magnetic trip settings, it serves as an exact replacement for older QNBL models. The HACR-rated construction accommodates 14-4 AWG copper or aluminum wiring, making it a versatile choice for HVAC equipment and general facility distribution.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BAB2045 |
| Series | BAB |
| Amperage | 45A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC, 24VDC, 48VDC, 62.5VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC, 5kA @ 24VDC, 5kA @ 48VDC, 3.8kA @ 62.5VDC |
| Frame Type | BAB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Pow-R-Line Panelboards, Westinghouse Panelboards, Cutler-Hammer Panelboards |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Standards | HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Product FAQs
5 answersWhich panelboards are compatible with the BAB2045 circuit breaker?
The BAB2045 is a bolt-on breaker designed for use in Eaton Pow-R-Line commercial panelboards. It is also fully backwards compatible with legacy Westinghouse and Cutler-Hammer panelboards that require BAB frame bolt-on breakers.
Can I install the BAB2045 in a standard residential load center?
No. The BAB2045 features a bolt-on connection designed for commercial panelboards. It will not fit in standard plug-on residential load centers, such as Eaton BR or CH series enclosures.
Is there a 22kAIC version of the BAB2045 available?
Yes. If your system requires a higher interrupting rating, the Eaton QBHW2045 is the direct 22kAIC equivalent to the standard 10kAIC BAB2045. Both share the same physical dimensions and bolt-on mounting style.
Do I need a separate mounting kit to install the BAB2045 in a Pow-R-Line panelboard?
No, the BAB2045 is designed to bolt directly to the chassis bus of standard Eaton Pow-R-Line panelboards without the need for an additional mounting kit or adapter.
Is the BAB2045 rated for use with heating, air conditioning, and refrigeration equipment?
Yes, like all Eaton Quicklag breakers in the 15A to 100A range, the BAB2045 is HACR rated for use with HVAC and refrigeration equipment.
