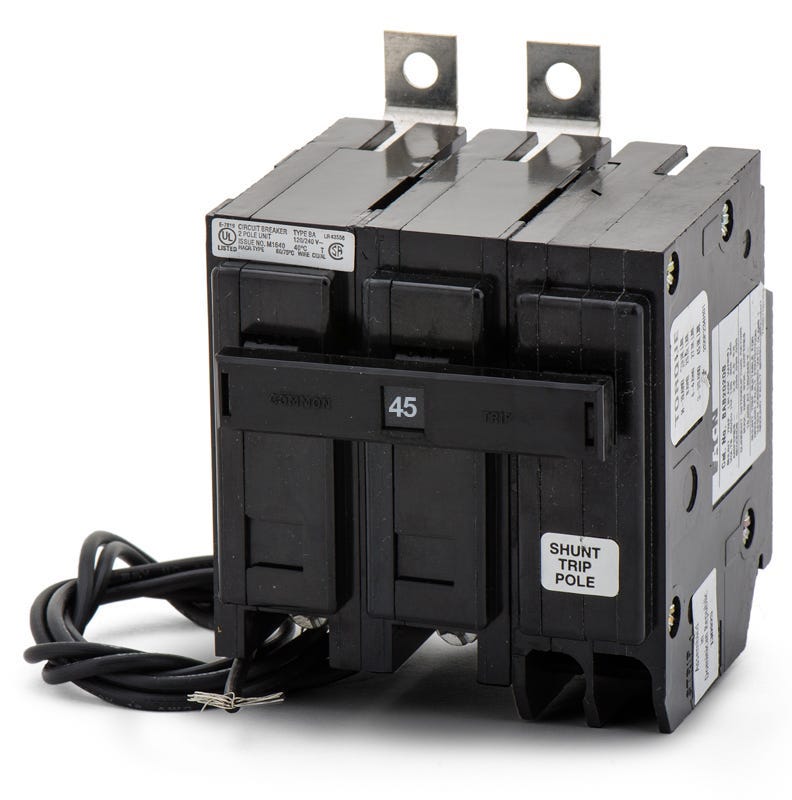

Eaton / Cutler-Hammer BAB2045S Miniature Circuit Breaker
- 45A
- 2 Pole
- Bolt-On
Eaton / Cutler-Hammer
BAB2045S
Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
BAB2045S
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer BAB2045S - 45A 2 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
40A 2 Pole Miniature Circuit Breaker
35A 2 Pole Miniature Circuit Breaker
60A 2 Pole Miniature Circuit Breaker
Description
Integrating remote shutdown capabilities, this Quicklag model includes a factory-installed shunt trip mechanism operating at 120-240VAC. The two-pole configuration delivers standard 10kAIC protection while allowing automated or emergency tripping from a remote control switch. It installs seamlessly into Eaton Pow-R-Line and legacy Westinghouse enclosures. Rated for HACR applications, this non-interchangeable trip unit effectively replaces older QNBL breakers requiring shunt functionality.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BAB2045S |
| Series | BAB |
| Amperage | 45A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC, 24VDC, 48VDC, 62.5VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC, 5kA @ 24VDC, 5kA @ 48VDC, 3.8kA @ 62.5VDC |
| Frame Type | BAB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Pow-R-Line Panelboards, Westinghouse Panelboards |
| Wire Gauge | 14-4 AWG (Al/Cu) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Shunt Trip (120-240VAC) |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Product FAQs
7 answersWhich panelboards are compatible with the BAB2045S circuit breaker?
The BAB2045S is a bolt-on circuit breaker designed for use in Eaton Pow-R-Line panelboards and legacy Westinghouse panelboards that accept Quicklag BAB-frame breakers.
What does the "S" suffix in the BAB2045S catalog number indicate?
The "S" suffix indicates that this breaker includes a factory-installed 120VAC shunt trip accessory. This allows the breaker to be tripped remotely by applying a 120V control signal.
How does the BAB2045S connect to the panelboard bus?
The BAB2045S is a Quicklag bolt-on breaker. It secures directly to the panelboard bus using a bolted connection, providing a secure, vibration-resistant contact compared to standard plug-on breakers.
Can I use the Eaton BAB2045S to replace an older Cutler-Hammer or Westinghouse breaker?
Yes. Eaton acquired the Cutler-Hammer and Westinghouse distribution equipment lines. The Eaton BAB2045S is a direct, exact replacement for older Cutler-Hammer and Westinghouse BAB2045S breakers.
What is the difference between Eaton BAB and QBHW circuit breakers?
Both are Quicklag bolt-on breakers with identical physical dimensions. The difference is their interrupting capacity: BAB breakers are rated at 10kAIC, while QBHW breakers are rated at 22kAIC.
Is the BAB2045S HACR rated?
Yes, Eaton Quicklag BAB breakers from 15A to 100A are HACR rated, meaning they are suitable for use with heating, air conditioning, and refrigeration equipment.
Does the BAB2045S have an adjustable trip setting?
No, this breaker features a fixed thermal-magnetic trip unit. The long-time and instantaneous trip functions are factory set and cannot be adjusted in the field.
