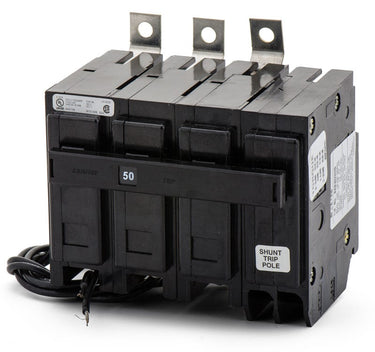

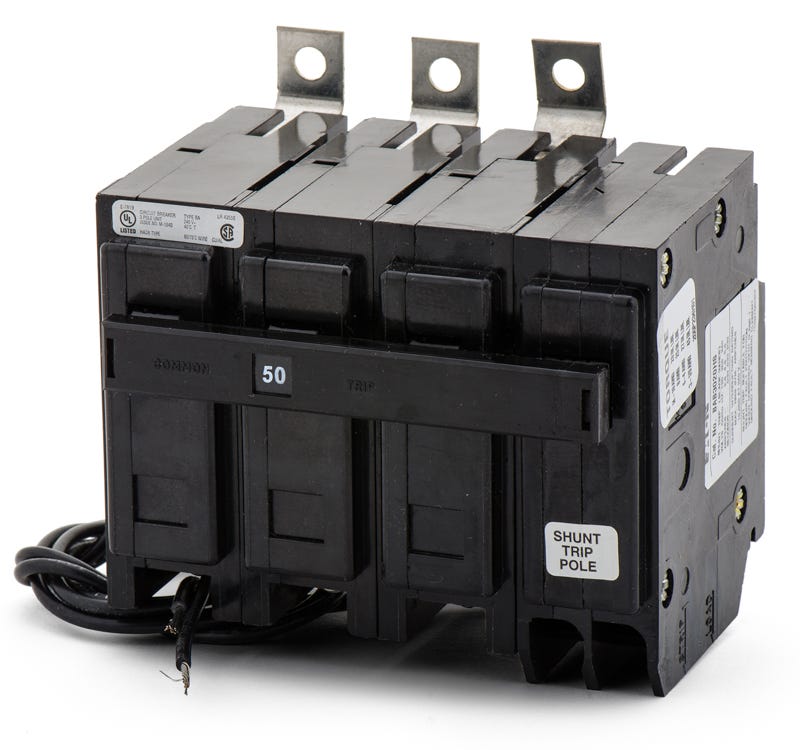

Eaton / Cutler-Hammer BAB3050HS Miniature Circuit Breaker
- 50A
- 3 Pole
- Bolt-On
Eaton / Cutler-Hammer
BAB3050HS
Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
BAB3050HS
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer BAB3050HS - 50A 3 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer BAB3050HS - 50A 3 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BAB3050HS |
| Series | BAB |
| Amperage | 50A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Eaton Pow-R-Line Panelboards, Westinghouse Panelboards |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Shunt Trip |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Sold out
Quantity
Eaton / Cutler-Hammer BAB3050HS - 50A 3 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BAB3050HS-R |
| Series | BAB |
| Amperage | 50A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Eaton Pow-R-Line Panelboards, Westinghouse Panelboards |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Shunt Trip |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Similar Items
Eaton / Cutler-HammerBAB3060HS
60A 3 Pole Miniature Circuit Breaker
Eaton / Cutler-HammerBAB3040HS
40A 3 Pole Miniature Circuit Breaker
Eaton / Cutler-HammerBAB3035HS
35A 3 Pole Miniature Circuit Breaker
Description
Built for demanding commercial environments, the BAB3050HS is a three-pole, 50A miniature circuit breaker from Eaton's reliable Quicklag family. It utilizes a secure bolt-on mounting style, making it fully compatible with Eaton Pow-R-Line load centers as well as legacy Westinghouse enclosures. Rated for 10kAIC at 240VAC, this thermal-magnetic unit includes a built-in 120-240VAC shunt trip mechanism to facilitate remote opening for enhanced safety and control.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BAB3050HS |
| Series | BAB |
| Amperage | 50A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Eaton Pow-R-Line Panelboards, Westinghouse Panelboards |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Shunt Trip |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Product FAQs
8 answersWhat does the HS suffix indicate on the BAB3050HS catalog number?
The HS suffix signifies that this breaker includes a factory-installed shunt trip mechanism. This allows the circuit to be opened remotely via an external control signal, distinguishing it from standard BAB3050H models.
What are common applications for the integrated shunt trip on this breaker?
The shunt trip is utilized for remote, commanded shutdown operations. Typical applications include emergency power-off (EPO) circuits, fire alarm system integrations, and automated load shedding to protect personnel and equipment.
Is this breaker a suitable replacement for legacy Westinghouse panelboards?
Yes. Eaton maintains backward compatibility across the Quicklag line, so current Eaton BAB breakers serve as direct drop-in replacements for equivalent legacy Cutler-Hammer and Westinghouse panelboards.
How does this breaker physically attach to the panelboard bus?
It utilizes an extended tang line terminal for a direct bolt-on connection to the bus. This provides a highly secure, vibration-resistant electrical joint compared to standard plug-on designs.
Are special lugs required to terminate aluminum branch circuit wiring?
No, the factory-installed box lugs on the load side are dual-rated for both copper and aluminum conductors. They accept wire sizes from 14 AWG up to 4 AWG without requiring specialized termination hardware.
Can the thermal-magnetic trip curves be adjusted in the field?
No, this breaker relies on a fixed trip element. Both the long-time thermal overload and instantaneous short-circuit protection thresholds are preset at the factory and cannot be modified.
Does the shunt trip require a separate side-mounted accessory module?
No, the BAB3050HS features an internally integrated shunt trip mechanism. This eliminates the need for panel builders to source, align, and field-install an external accessory module.
What is the relationship between the Quicklag and BAB designations?
Quicklag is the overarching family name for this line of Eaton industrial miniature breakers. BAB refers specifically to the bolt-on frame type used in Eaton Pow-R-Line panelboards.
