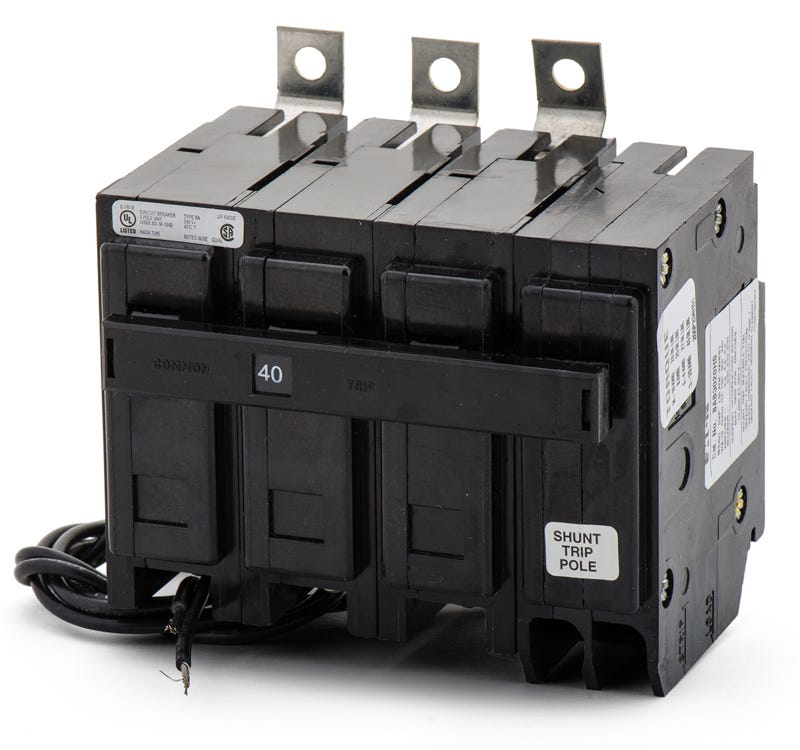

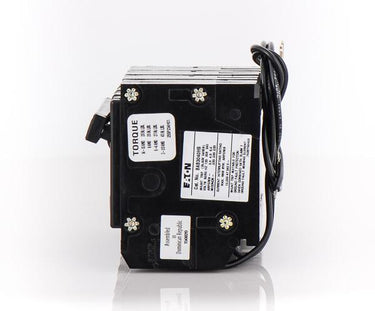

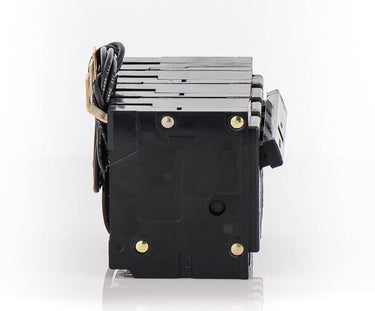

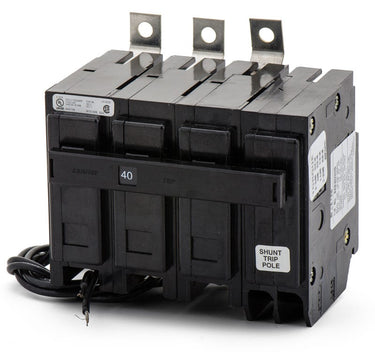

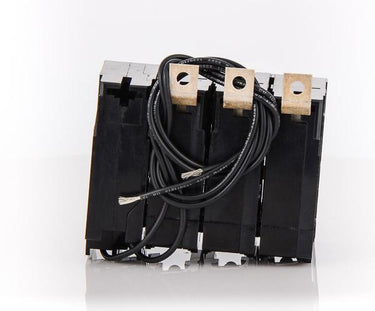

Eaton / Cutler-Hammer BAB3040HS Miniature Circuit Breaker
- 40A
- 3 Pole
- Bolt-On
Eaton / Cutler-Hammer
BAB3040HS
Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
BAB3040HS
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer BAB3040HS - 40A 3 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer BAB3040HS - 40A 3 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BAB3040HS |
| Series | BAB |
| Amperage | 40A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Eaton Pow-R-Line Panelboards, Westinghouse Panelboards |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Shunt Trip |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Sold out
Quantity
Eaton / Cutler-Hammer BAB3040HS - 40A 3 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BAB3040HS-R |
| Series | BAB |
| Amperage | 40A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Eaton Pow-R-Line Panelboards, Westinghouse Panelboards |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Shunt Trip |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Similar Items
Eaton / Cutler-HammerBAB3035HS
35A 3 Pole Miniature Circuit Breaker
Eaton / Cutler-HammerBAB3050HS
50A 3 Pole Miniature Circuit Breaker
Eaton / Cutler-HammerBAB3030HS
30A 3 Pole Miniature Circuit Breaker
Description
Part of the Quicklag family, this 40A three-pole miniature circuit breaker is designed for commercial and industrial power distribution. It provides reliable thermal-magnetic protection for demanding electrical systems. This unit bolts securely into Eaton Pow-R-Line and legacy Westinghouse panelboards. It also serves as an exact replacement for older QNBL series breakers. Rated for 10kAIC at 240VAC, it features a factory-installed shunt trip for remote disconnect applications.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BAB3040HS |
| Series | BAB |
| Amperage | 40A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Eaton Pow-R-Line Panelboards, Westinghouse Panelboards |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Shunt Trip |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Product FAQs
6 answersWhich panelboards accept the BAB3040HS circuit breaker?
This bolt-on miniature breaker is designed for use in Eaton Pow-R-Line panelboards, such as the PRL1a and PRL2a, as well as legacy Westinghouse panelboards that accept Quicklag BAB series breakers.
Can the shunt trip on this breaker be field-installed?
No. For miniature breakers in the Quicklag family, the shunt trip is a factory-installed option only. It cannot be added as a field accessory to a standard BAB circuit breaker.
How is the shunt trip activated on the BAB3040HS?
The factory-installed shunt trip module contains a coil that trips the breaker and opens the circuit when an external control voltage is applied. This is typically wired to a fire alarm system, emergency stop button, or other remote control source.
What type of protection does the thermal-magnetic trip mechanism provide?
The thermal element responds to continuous, long-time overloads by heating up and tripping the breaker, while the magnetic element provides instantaneous tripping in the event of a high-fault short circuit.
Can this breaker replace legacy Westinghouse or QNBL breakers?
Yes. Eaton acquired the Westinghouse distribution equipment line, so modern Eaton or Cutler-Hammer BAB breakers are exact, direct replacements for older Westinghouse BAB and standard QNBL series bolt-on breakers with the same specifications.
Is this circuit breaker suitable for HVAC applications?
Yes. Eaton Quicklag miniature circuit breakers in this amperage range carry an HACR rating, certifying them for use with compatible heating, air conditioning, and refrigeration equipment.
