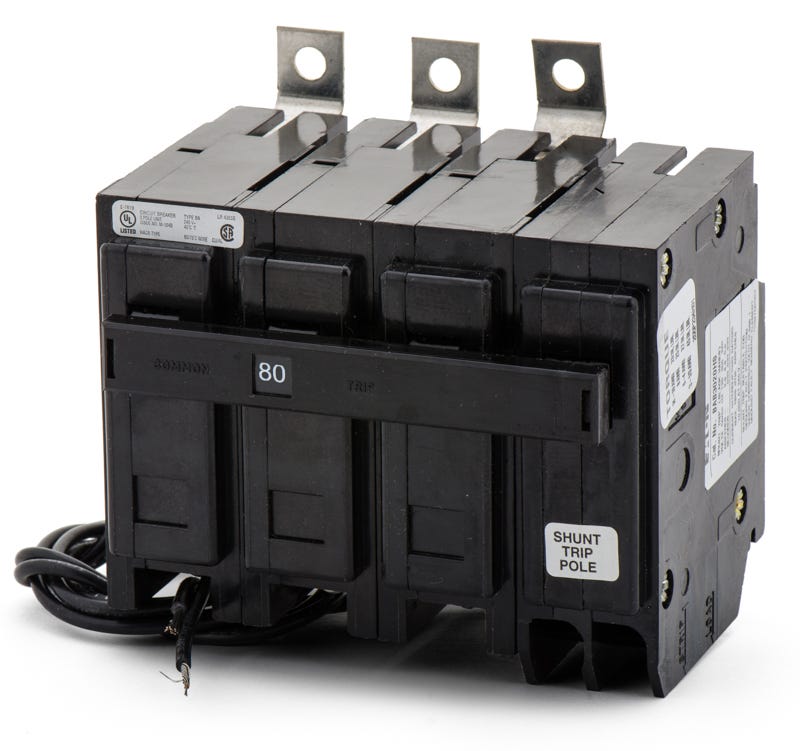

Eaton / Cutler-Hammer BAB3080HS Miniature Circuit Breaker
- 80A
- 3 Pole
- Bolt-On
Eaton / Cutler-Hammer
BAB3080HS
Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
BAB3080HS
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer BAB3080HS - 80A 3 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerBAB3070HS
70A 3 Pole Miniature Circuit Breaker
Eaton / Cutler-HammerBAB3100HS
100A 3 Pole Miniature Circuit Breaker
Eaton / Cutler-HammerBAB3060HS
60A 3 Pole Miniature Circuit Breaker
Description
Designed for advanced control, the Eaton BAB3080HS combines standard thermal-magnetic protection with remote tripping capabilities. This 3-pole, 80-amp miniature circuit breaker includes a factory-installed shunt trip mechanism rated for 120/208/240VAC control circuits. The unit bolts firmly into Eaton Pow-R-Line, Cutler-Hammer, and Westinghouse panelboards. It provides a robust, vibration-proof bus connection. Delivering a 10 kAIC interrupt rating at 240VAC, this breaker ensures safety.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BAB3080HS |
| Series | BAB |
| Amperage | 80A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Eaton Pow-R-Line Panelboards, Westinghouse Panelboards, Cutler-Hammer Panelboards |
| Wire Gauge | 8-1/0 AWG (Al/Cu) |
| Max Wire | 1/0 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Shunt Trip |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Product FAQs
9 answersWhat does the "HS" suffix mean on the BAB3080HS?
The "HS" suffix indicates that this breaker is equipped with a factory-installed 120V AC shunt trip. This allows the breaker to be tripped remotely by applying a 120V signal, which is commonly used for emergency stops or automated control systems.
Can I field-install a shunt trip on a standard BAB3080 breaker?
No, shunt trips and other internal accessories for Eaton Quicklag miniature breakers are factory-installed. You must purchase the breaker with the accessory already integrated, such as this "HS" model.
Does this breaker require a separate control power source for the shunt trip?
Yes, the 120V AC shunt trip requires an external control voltage source to operate. When 120V is applied to the shunt trip leads, it mechanically trips the breaker to open the circuit.
What is the difference between the BAB3080HS and the QBHW3080HS?
The primary difference is the short-circuit interrupting rating. The BAB series is rated for 10kAIC at 240V AC, while the QBHW series is rated for 22kAIC. You must verify your panel's fault current requirements before substituting.
Can I use the BAB3080HS in a standard residential load center?
No, this is a bolt-on breaker designed for commercial and industrial panelboards. Standard residential load centers typically require plug-on breakers, such as the BR or CH series.
How does this breaker connect to the panelboard bus?
As a bolt-on breaker, it fastens directly to the busbars using screws rather than snapping into place. This provides a highly secure, vibration-resistant connection typical in commercial Pow-R-Line panelboards.
What does the "LI" trip function code mean for this breaker?
The "LI" designation indicates that the thermal-magnetic trip unit provides Long-Time (thermal) protection against overloads and Instantaneous (magnetic) protection against short circuits.
How much panel space does the BAB3080HS require?
This three-pole Quicklag breaker requires three standard 1-inch spaces in the panelboard.
Can I use this 240V breaker on a 208V or 120V system?
Yes, the 240V AC rating is a maximum voltage limit. This breaker is fully compatible with lower voltage systems, including 208V AC and 120V AC applications.
