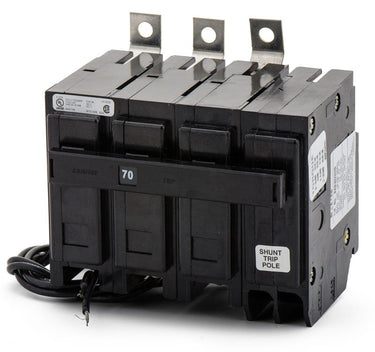

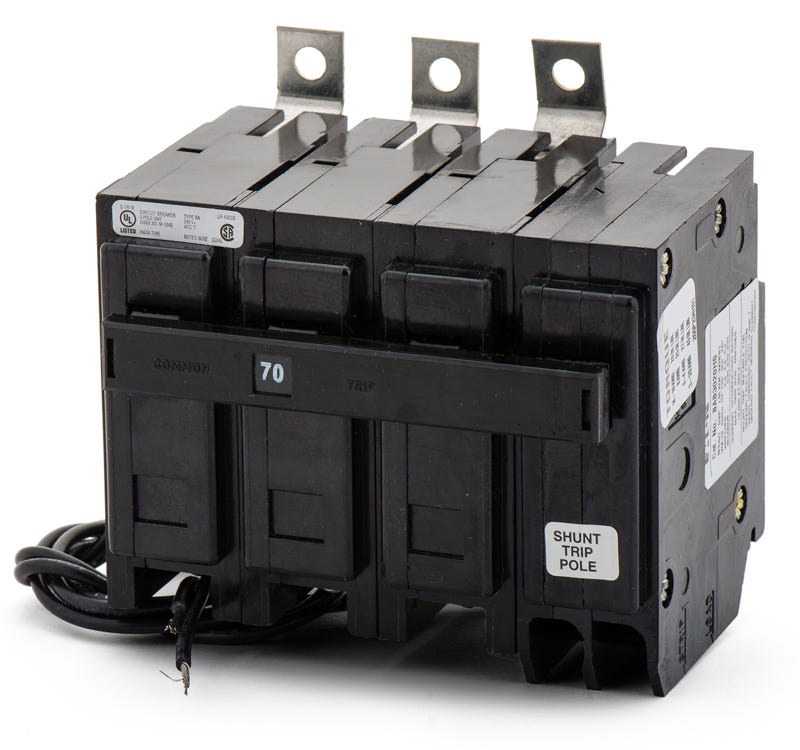

Eaton / Cutler-Hammer BAB3070HS Miniature Circuit Breaker
- 70A
- 3 Pole
- Bolt-On
Eaton / Cutler-Hammer
BAB3070HS
Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
BAB3070HS
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer BAB3070HS - 70A 3 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer BAB3070HS - 70A 3 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BAB3070HS |
| Series | BAB |
| Amperage | 70A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Eaton Pow-R-Line Panelboards, Westinghouse Panelboards |
| Wire Gauge | 8-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Shunt Trip |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Sold out
Quantity
Eaton / Cutler-Hammer BAB3070HS - 70A 3 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BAB3070HS-R |
| Series | BAB |
| Amperage | 70A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Eaton Pow-R-Line Panelboards, Westinghouse Panelboards |
| Wire Gauge | 8-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Shunt Trip |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Similar Items
Eaton / Cutler-HammerBAB3060HS
60A 3 Pole Miniature Circuit Breaker
Eaton / Cutler-HammerBAB3090HS
90A 3 Pole Miniature Circuit Breaker
Eaton / Cutler-HammerBAB3050HS
50A 3 Pole Miniature Circuit Breaker
Description
Part of the Quicklag family, this 70A miniature circuit breaker features an integrated shunt trip for remote power disconnection. It provides essential thermal-magnetic protection for 240V commercial distribution systems. Designed for secure installation, the three-pole unit mounts into Eaton Pow-R-Line and Westinghouse panels. It serves as a substitute for legacy QNBL shunt trip breakers. The device carries a 10kAIC interrupt rating and is HACR certified for heating and cooling equipment.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BAB3070HS |
| Series | BAB |
| Amperage | 70A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Eaton Pow-R-Line Panelboards, Westinghouse Panelboards |
| Wire Gauge | 8-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Shunt Trip |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Product FAQs
7 answersWhich panelboards are compatible with the BAB3070HS circuit breaker?
This bolt-on breaker is designed for use in Eaton Pow-R-Line panelboards, including PRL1X, PRL2X, and PRL3a series, as well as legacy Westinghouse panelboards that accept BAB frame breakers.
What does the "HS" suffix indicate on the BAB3070HS catalog number?
The "HS" suffix designates that this breaker includes a factory-installed 120VAC shunt trip, allowing for remote tripping of the circuit breaker via an emergency stop or control circuit.
Can the BAB3070HS replace older Westinghouse shunt trip breakers?
Yes, this Eaton BAB breaker serves as a direct replacement for legacy Westinghouse QNBL shunt trip breakers with matching amperage and voltage requirements.
Is the BAB3070HS rated for heating and cooling equipment?
Yes, this breaker is HACR rated, making it suitable for use with heating, air conditioning, and refrigeration equipment that requires a 70A overcurrent protection device.
Do I need special lugs to use aluminum wire with the BAB3070HS?
No, the factory-installed box lugs are dual-rated for both copper and aluminum conductors ranging from 8 AWG to 1/0 AWG. Always apply a suitable oxide inhibitor when terminating aluminum wire.
How is the shunt trip wired on the BAB3070HS?
The 120VAC shunt trip mechanism features integrated pigtail leads that must be connected to your remote control circuit or emergency stop system to enable remote tripping functionality.
Can the BAB3070HS be mounted on a standard DIN rail?
No, this is a bolt-on circuit breaker designed to attach directly to the busbar of compatible Eaton and Westinghouse panelboards. It cannot be installed on a DIN rail or in plug-on load centers.
