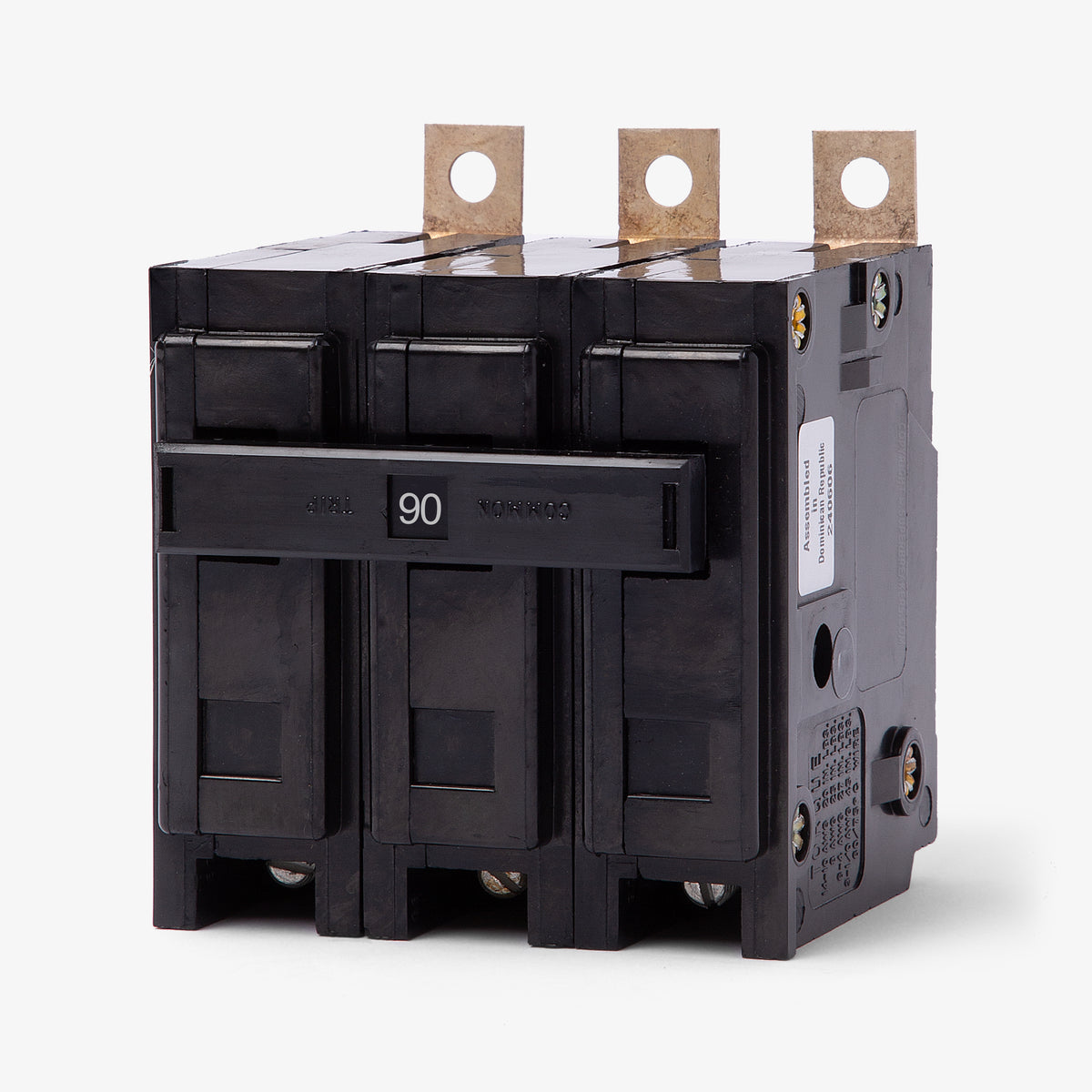

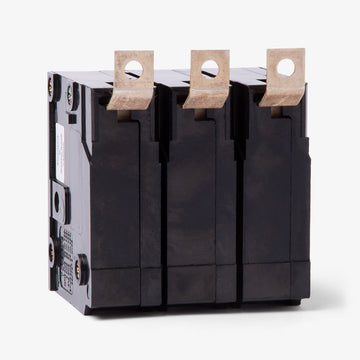

Eaton / Cutler-Hammer BAB3090H Miniature Circuit Breaker
- 90A
- 3 Pole
- Bolt-On
Eaton / Cutler-Hammer
BAB3090H
Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
BAB3090H
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer BAB3090H - 90A 3 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer BAB3090H - 90A 3 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BAB3090H |
| Series | BAB |
| Amperage | 90A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Eaton Pow-R-Line Panelboards, Westinghouse Panelboards |
| Wire Gauge | 8-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Sold out
Quantity
Eaton / Cutler-Hammer BAB3090H - 90A 3 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BAB3090H-R |
| Series | BAB |
| Amperage | 90A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Eaton Pow-R-Line Panelboards, Westinghouse Panelboards |
| Wire Gauge | 8-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Similar Items
100A 3 Pole Miniature Circuit Breaker
Eaton / Cutler-HammerBAB3100HS
100A 3 Pole Miniature Circuit Breaker
80A 3 Pole Miniature Circuit Breaker
Description
Built for demanding electrical systems, this 90-amp miniature circuit breaker offers dependable thermal-magnetic protection. It is designed to handle commercial and industrial loads while maintaining consistent performance under standard operating conditions. The bolt-on configuration ensures a stable, vibration-resistant connection within Eaton Pow-R-Line enclosures.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BAB3090H |
| Series | BAB |
| Amperage | 90A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Eaton Pow-R-Line Panelboards, Westinghouse Panelboards |
| Wire Gauge | 8-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Product FAQs
5 answersWhich panelboards are compatible with the BAB3090H?
This Quicklag breaker bolts directly into Eaton Pow-R-Line 1 (PRL1a and PRL1X) panelboards. It is also backward compatible with legacy Cutler-Hammer, Westinghouse, Challenger, and Bryant panelboards designed for BAB-frame breakers.
How does the BAB3090H mount to the panelboard?

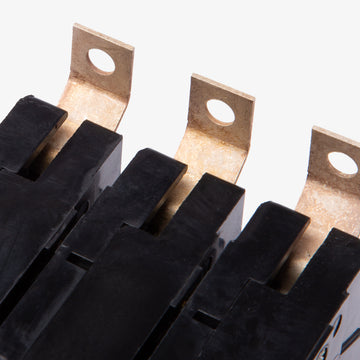

This is a bolt-on circuit breaker. It physically bolts directly to the busbar of the panelboard, providing a secure, vibration-resistant connection commonly required in commercial and industrial power distribution systems.
Are BAB and QBHW series breakers interchangeable?
Both series share the same bolt-on form factor and mount in the same Eaton Pow-R-Line panelboards. The difference is the short-circuit interrupting rating. BAB breakers are rated for 10kAIC, while QBHW breakers provide a higher 22kAIC rating. Verify your system's fault current requirements before substituting.
What wire types and sizes can be used with the BAB3090H?

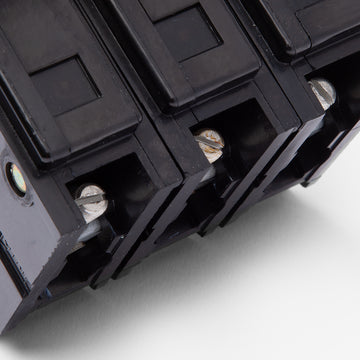

The factory-installed box lugs accept copper (Cu) or aluminum (Al) conductors ranging from 8 AWG up to 1/0 AWG. Always apply the manufacturer-specified torque listed on the side of the breaker to ensure a proper connection and prevent terminal overheating.
Does the BAB3090H include ground fault or arc fault protection?
No, this is a standard thermal-magnetic breaker designed exclusively for overload and short-circuit protection. It does not feature GFCI or AFCI capabilities. For ground fault protection in an Eaton bolt-on panel, a QBGFT or similar series breaker is required.
