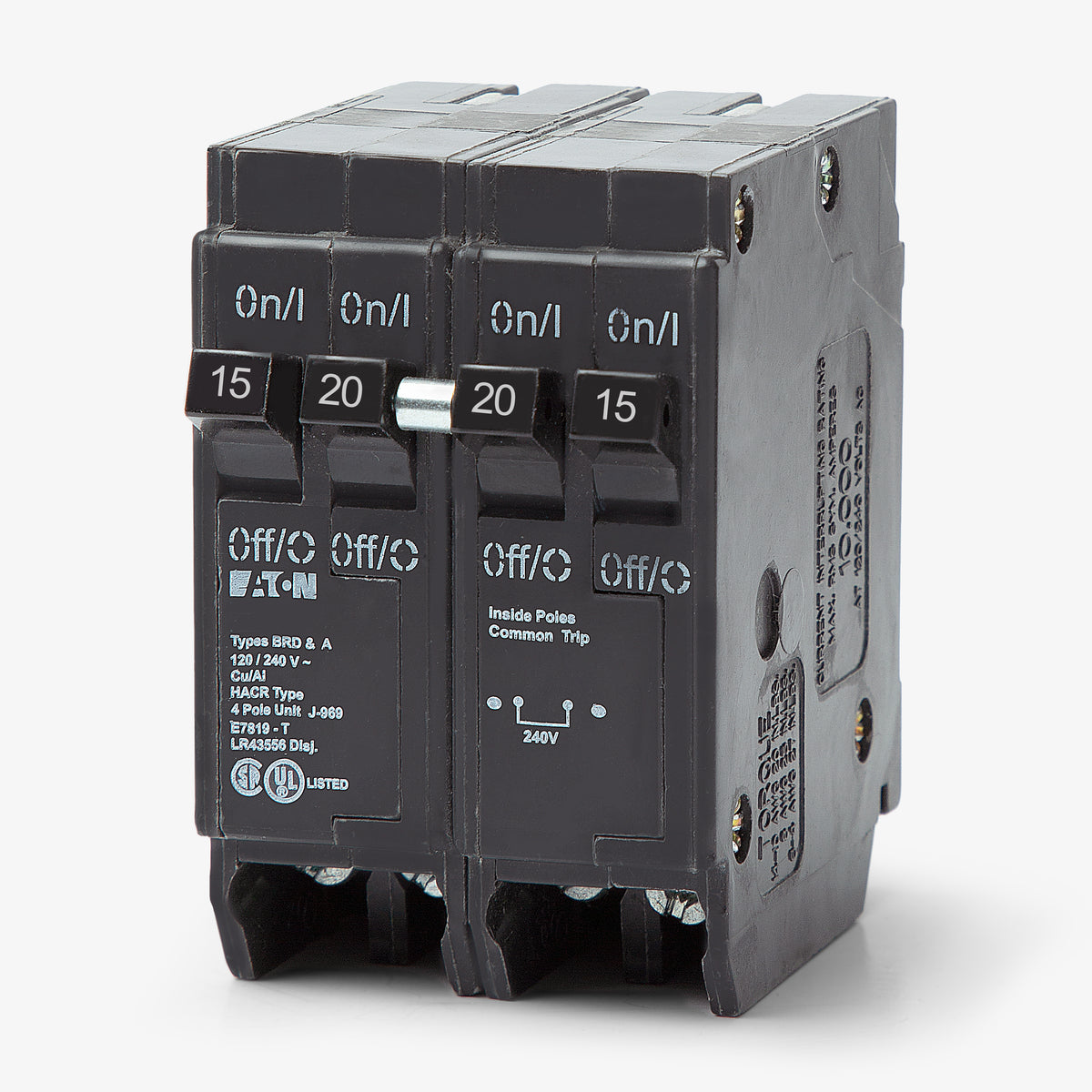

Eaton / Cutler-Hammer BQ2202115 15/20A Quadplex Miniature Circuit Breaker
- 15/20A
- 4 Pole
- Plug-On
Eaton / Cutler-Hammer
BQ2202115
15/20A Quadplex Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
BQ2202115
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer BQ2202115 - 15/20A Quadplex Miniature Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer BQ2202115 - 15/20A Quadplex Miniature Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BQ2202115 |
| Series | BQ |
| Amperage | 15/20A |
| Poles | 4 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Type BR Load Centers |
| Wire Gauge | 14-4 AWG |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | Quadplex |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Rejection Tab |
| Standards | CSA C22.2 No. 5, Federal Specification W-C375, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
Sold out
Quantity
Eaton / Cutler-Hammer BQ2202115 - 15/20A Quadplex Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BQ2202115-R |
| Series | BQ |
| Amperage | 15/20A |
| Poles | 4 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Type BR Load Centers |
| Wire Gauge | 14-4 AWG |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | Quadplex |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Rejection Tab |
| Standards | CSA C22.2 No. 5, Federal Specification W-C375, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
Similar Items
Eaton / Cutler-HammerBQ2202120
20/20A Quadplex Miniature Circuit Breaker
20/20A Quadplex Miniature Circuit Breaker
Eaton / Cutler-HammerBQ2252120
20/25A Quadplex Miniature Circuit Breaker
Description
Providing a practical solution for full electrical panels, this 15/20A quad breaker combines multiple circuits into a single two-pole space. The space-saving configuration is ideal for residential upgrades and light commercial expansions where enclosure slots are limited. Installs into standard Type BR load centers via a simple plug-on mounting style. It accepts 14-4 AWG copper or aluminum wiring. This 10kAIC rated device includes a rejection tab and carries a switch duty classification.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BQ2202115 |
| Series | BQ |
| Amperage | 15/20A |
| Poles | 4 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Type BR Load Centers |
| Wire Gauge | 14-4 AWG |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | Quadplex |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Rejection Tab |
| Standards | CSA C22.2 No. 5, Federal Specification W-C375, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
Product FAQs
6 answersHow are the 15A and 20A circuits configured on the BQ2202115?
This quadplex breaker provides two 15A single-pole circuits on the outer positions and one 20A two-pole circuit in the center. The outer poles supply 120V, while the center poles supply 240V.
How much panel space does the BQ2202115 require?
It requires two standard 1-inch spaces in a compatible Eaton or Cutler-Hammer Type BR load center. The breaker includes a CTL rejection tab, so the panel bus bar must be notched to accept tandem or quadplex breakers.
Does the BQ2202115 feature common trip or independent trip operation?
This model features independent trip operation. A fault on one of the 15A outer poles will not automatically trip the other outer pole or the 20A center circuit.
Is this quadplex breaker HACR rated?
Yes, Eaton Type BQ quadplex circuit breakers carry an HACR listing, making them suitable for protecting heating, air conditioning, and refrigeration equipment.
Can the BQ2202115 be installed in older Westinghouse or Bryant panels?
Eaton Type BR breakers are the direct, UL listed replacements for many legacy Westinghouse, Bryant, and Challenger load centers. You must verify the original panel label to confirm it accepts Type BR or Type BQ breakers.
Are the 15A single-pole circuits on this breaker switch duty rated?
Yes, the 15A single-pole outer circuits carry a switch duty rating. This allows them to be used for switching 120V fluorescent lighting loads on a regular basis.
