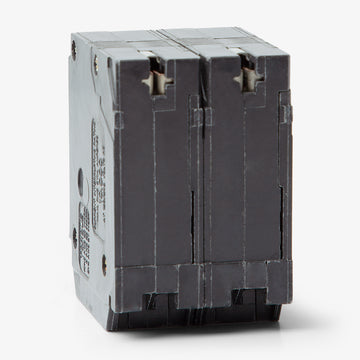

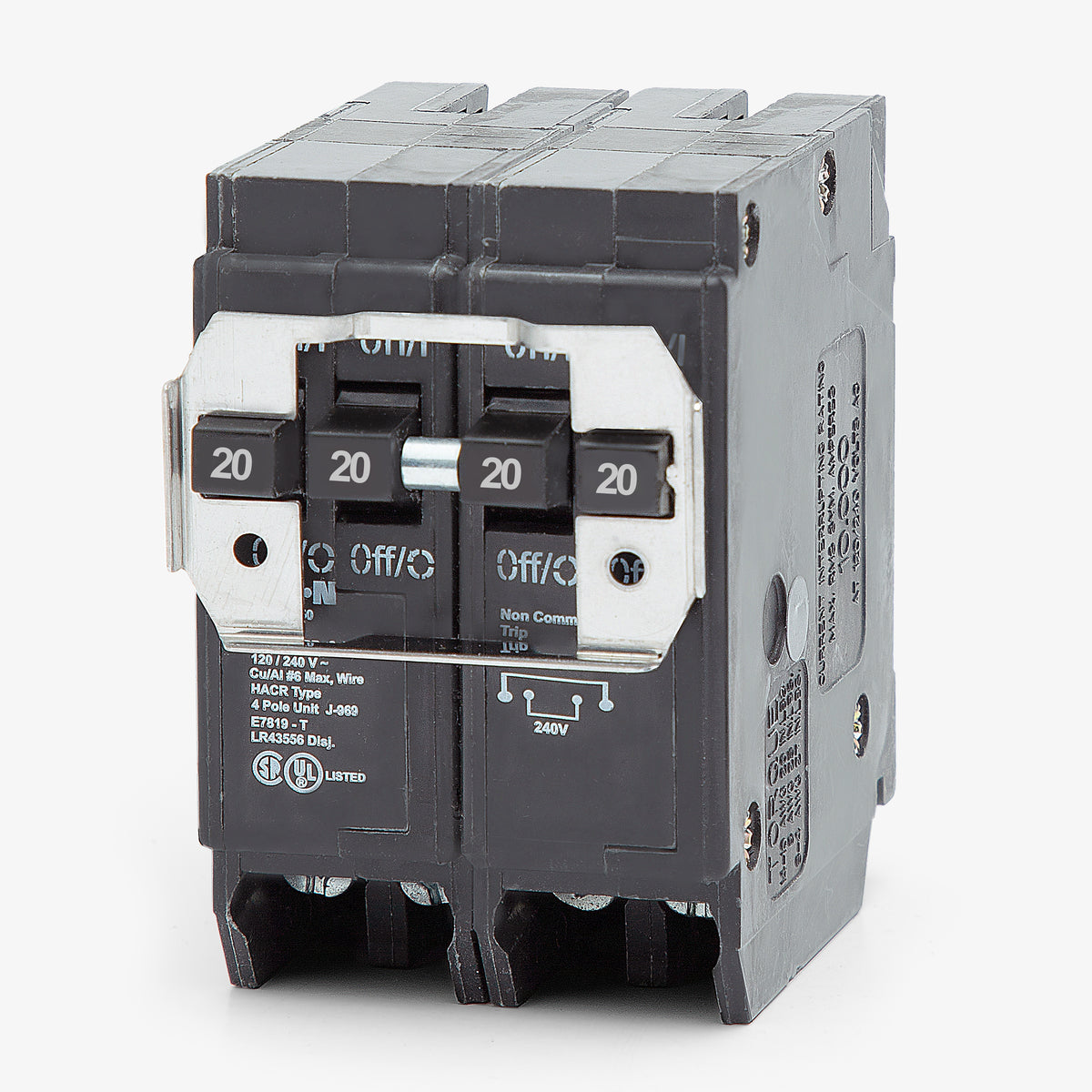

Eaton / Cutler-Hammer BQ220220 20/20A Quadplex Miniature Circuit Breaker
- 20/20A
- 4 Pole

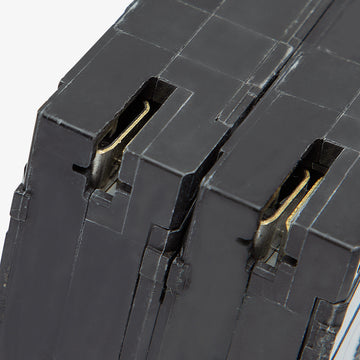

- Plug-On
Eaton / Cutler-Hammer
BQ220220
20/20A Quadplex Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
BQ220220
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer BQ220220 - 20/20A Quadplex Miniature Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer BQ220220 - 20/20A Quadplex Miniature Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BQ220220 |
| Series | BQ |
| Amperage | 20/20A |
| Poles | 4 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |

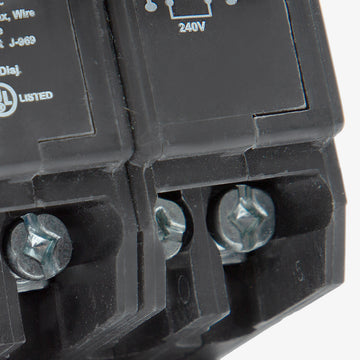

| Terminal Type | Box Lugs |
|---|---|
| For Use With | Eaton BR Load Centers, Bryant Load Centers, Westinghouse Load Centers, Challenger Load Centers |
| Wire Gauge | 14-4 AWG |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | Quadplex |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Rejection Tab |
| Standards | CSA C22.2 No. 5, Federal Specification W-C375, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Independent Trip, Rejection Tab |
Sold out
Quantity
Eaton / Cutler-Hammer BQ220220 - 20/20A Quadplex Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BQ220220-R |
| Series | BQ |
| Amperage | 20/20A |
| Poles | 4 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Eaton BR Load Centers, Bryant Load Centers, Westinghouse Load Centers, Challenger Load Centers |
| Wire Gauge | 14-4 AWG |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | Quadplex |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Rejection Tab |
| Standards | CSA C22.2 No. 5, Federal Specification W-C375, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Independent Trip, Rejection Tab |
Similar Items
15/20A Quadplex Miniature Circuit Breaker
Eaton / Cutler-HammerBQ2202115
15/20A Quadplex Miniature Circuit Breaker
25/25A Quadplex Miniature Circuit Breaker
Description
Built to expand circuit capacity, the Eaton BQ220220 quadplex breaker offers two independent 20A two-pole circuits in a compact two-inch form factor. This design is ideal for adding new 240V loads to a fully populated panel without the expense of a subpanel upgrade. The breaker features a plug-on mounting style with a rejection tab, ensuring proper fitment in Class CTL panels. It is fully compatible with Eaton BR, Bryant, Challenger, and Westinghouse load centers.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BQ220220 |
| Series | BQ |
| Amperage | 20/20A |
| Poles | 4 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Eaton BR Load Centers, Bryant Load Centers, Westinghouse Load Centers, Challenger Load Centers |
| Wire Gauge | 14-4 AWG |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | Quadplex |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Rejection Tab |
| Standards | CSA C22.2 No. 5, Federal Specification W-C375, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Independent Trip, Rejection Tab |
Product FAQs
8 answersWhat load centers are compatible with the BQ220220 circuit breaker?
This breaker is designed for use in Eaton BR series load centers. It is also a direct, UL-listed replacement for legacy Bryant, Westinghouse, and Challenger panels that accept Type BR breakers.
How much panel space does the BQ220220 require?
As a quadplex breaker, it provides two separate 20A, two-pole circuits while only occupying two standard 1-inch spaces in the panel. This allows you to add 240V capacity without requiring a subpanel.
What does independent trip mean on this quadplex breaker?
It means the breaker contains two separate two-pole circuits (the inner poles and the outer poles) that operate independently of each other. A fault on the inner 20A circuit will not automatically trip the outer 20A circuit.
Can I use the BQ220220 to power 240V appliances?
Yes, this quadplex breaker provides two independent 120/240V, two-pole circuits. It can be used to supply power to two separate 240V loads up to 20 amps each, such as dedicated appliance circuits or HVAC equipment.
Does this breaker provide AFCI or GFCI protection?
No, the BQ220220 is a standard thermal-magnetic circuit breaker. It provides essential overload and short-circuit protection but does not feature Arc Fault (AFCI) or Ground Fault (GFCI) capabilities.
Can I install this breaker in a Square D or Siemens panel?
No, the BQ220220 is strictly for use in Eaton BR, Bryant, Westinghouse, and Challenger load centers. It is not listed or designed for use in Square D, Siemens, or GE panels.
Is the BQ220220 a direct replacement for older Westinghouse quad breakers?
Yes, Eaton acquired the Westinghouse and Bryant load center lines. The Eaton BR series, including the BQ220220, is the official, UL-listed replacement for these legacy panels.
Is the BQ220220 rated for both copper and aluminum conductors?
Yes, the box lugs are rated for both copper (Cu) and aluminum (Al) wiring. When terminating aluminum conductors, it is recommended to apply a suitable joint compound or oxide inhibitor to prevent corrosion.
