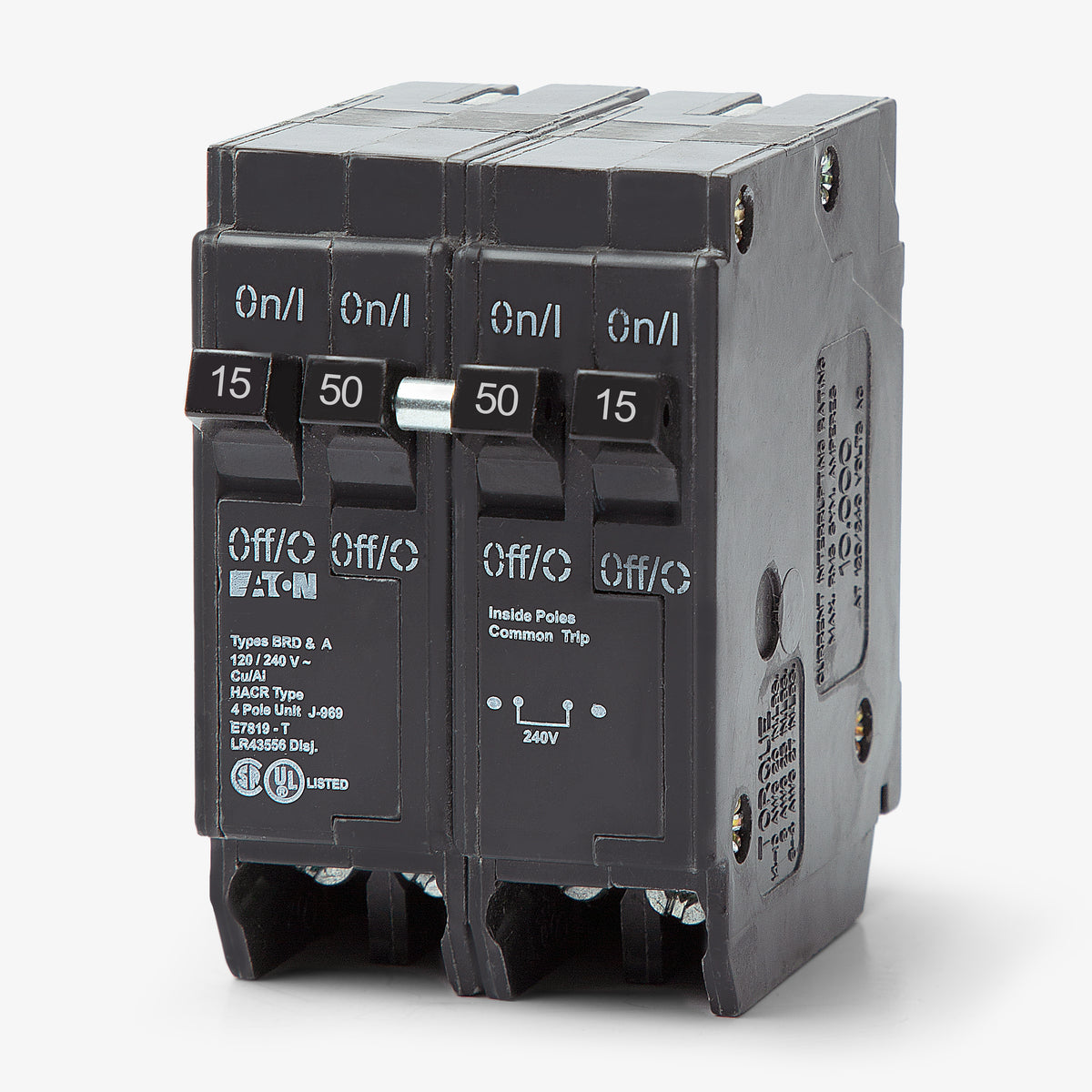

Eaton / Cutler-Hammer BQ2502115 15/50A Quadplex Miniature Circuit Breaker
- 15/50A
- 4 Pole
- Plug-On
Eaton / Cutler-Hammer
BQ2502115
15/50A Quadplex Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
BQ2502115
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer BQ2502115 - 15/50A Quadplex Miniature Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer BQ2502115 - 15/50A Quadplex Miniature Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BQ2502115 |
| Series | BQ |
| Amperage | 15/50A |
| Poles | 4 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Eaton BR Load Centers, Westinghouse Load Centers, Bryant Load Centers, Challenger Load Centers |
| Wire Gauge | 14-4 AWG |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | Quadplex |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Rejection Tab |
| Standards | CSA C22.2 No. 5, Federal Specification W-C375, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
Sold out
Quantity
Eaton / Cutler-Hammer BQ2502115 - 15/50A Quadplex Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BQ2502115-R |
| Series | BQ |
| Amperage | 15/50A |
| Poles | 4 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Eaton BR Load Centers, Westinghouse Load Centers, Bryant Load Centers, Challenger Load Centers |
| Wire Gauge | 14-4 AWG |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | Quadplex |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Rejection Tab |
| Standards | CSA C22.2 No. 5, Federal Specification W-C375, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
Similar Items
20/50A Quadplex Miniature Circuit Breaker
30/50A Quadplex Miniature Circuit Breaker
40/50A Quadplex Miniature Circuit Breaker
Description
Engineered to save valuable enclosure space, this 15/50A quad breaker offers four poles of thermal-magnetic protection. It serves as an ideal solution for adding new branch circuits to existing residential setups. The unit mounts into standard Eaton BR load centers, as well as legacy Bryant and Challenger panels. It requires only two standard one-inch spaces to provide full functionality. Operating at 120/240VAC with a 10kAIC rating, it utilizes independent trip mechanisms for safety.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BQ2502115 |
| Series | BQ |
| Amperage | 15/50A |
| Poles | 4 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Eaton BR Load Centers, Westinghouse Load Centers, Bryant Load Centers, Challenger Load Centers |
| Wire Gauge | 14-4 AWG |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | Quadplex |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Rejection Tab |
| Standards | CSA C22.2 No. 5, Federal Specification W-C375, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
Product FAQs
7 answersWhat load centers accept the BQ2502115 quadplex breaker?
This breaker is designed for Eaton BR series load centers. Because Eaton acquired Cutler-Hammer, Westinghouse, and Bryant, it is also the direct, UL-listed replacement for legacy panels from those brands that accept Type BR breakers.
Does the BQ2502115 require a notched bus bar?
Yes. This is a CTL (Circuit Total Limitation) breaker equipped with a rejection tab. It must be installed in a panel with notched bus stabs designed to accept tandem or quadplex breakers.
How much panel space does this quadplex breaker require?
The BQ2502115 requires two standard 1-inch spaces to provide four independent poles of protection.
How are the circuits configured on the BQ2502115?
The outside poles provide two independent 15A single-pole circuits for 120V applications. The center poles provide one 50A two-pole circuit for 120/240V applications.
What is the difference between Eaton BQ and BQC quadplex breakers?
BQ breakers feature an independent trip mechanism, meaning each pole trips independently during a fault. BQC breakers feature an internal common trip mechanism for the two-pole circuits. The BQ2502115 is an independent trip breaker.
Is the BQ2502115 rated for HVAC equipment?
Yes. All Eaton BQ quadplex circuit breakers carry a listing for HACR (Heating, Air Conditioning, and Refrigeration) applications.
Are the 15A circuits on this breaker switch-duty rated?
Yes. The 15A single-pole circuits on the BQ2502115 are switch-duty rated, meaning they can be used to manually control lighting circuits on a regular basis.
