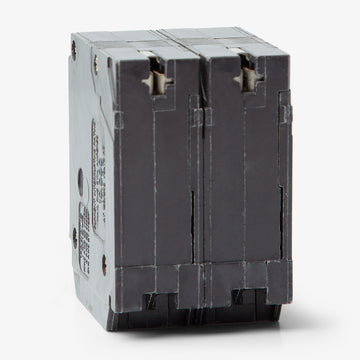

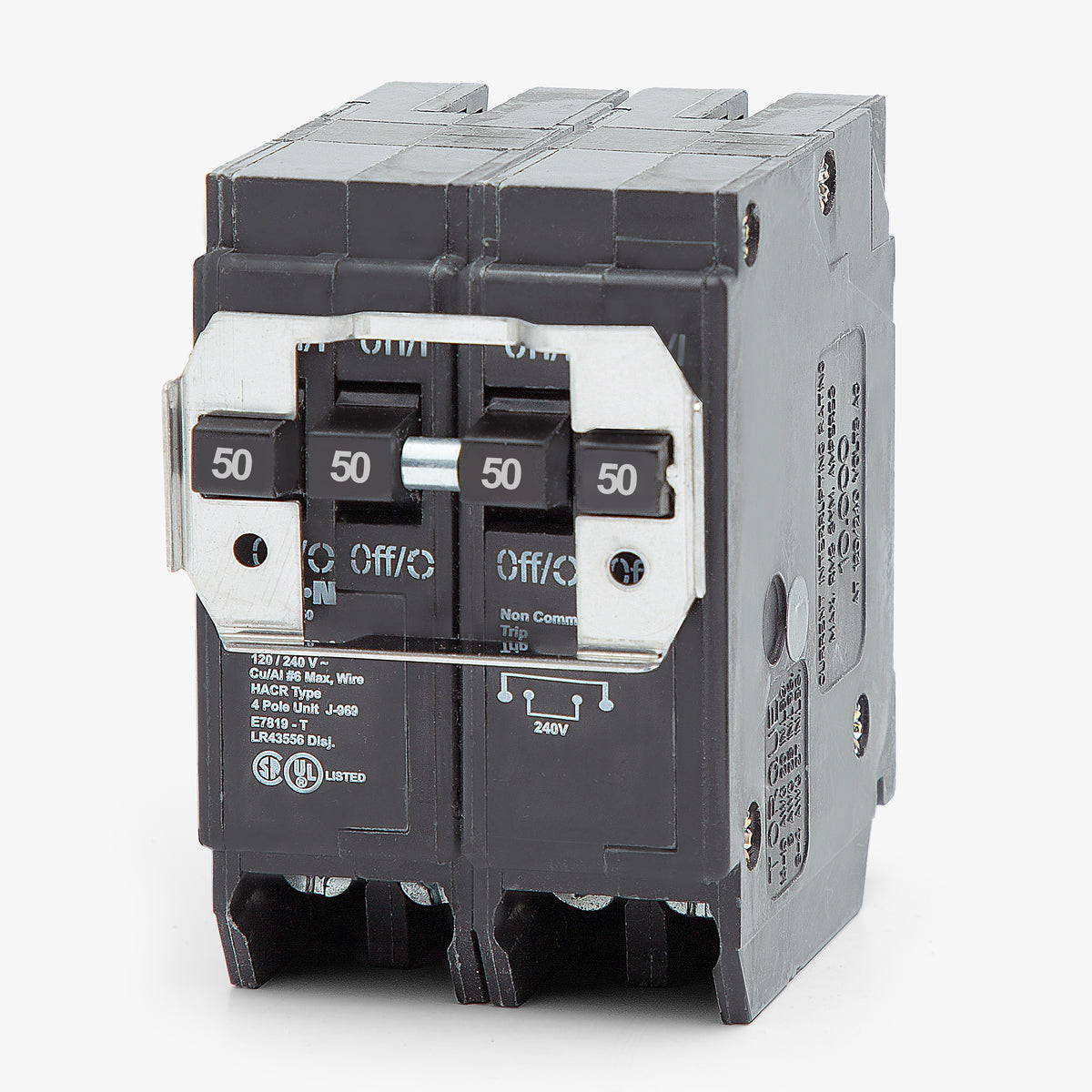

Eaton / Cutler-Hammer BQ250250 50/50A Quadplex Miniature Circuit Breaker
- 50/50A
- 4 Pole

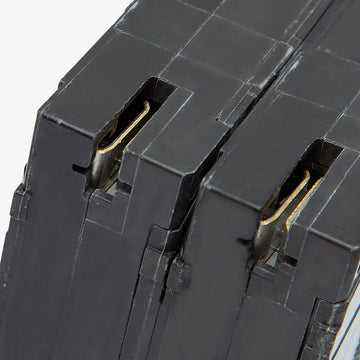

- Plug-On
Eaton / Cutler-Hammer
BQ250250
50/50A Quadplex Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
BQ250250
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer BQ250250 - 50/50A Quadplex Miniature Circuit Breaker
New
Quantity
Similar Items
20/50A Quadplex Miniature Circuit Breaker
30/50A Quadplex Miniature Circuit Breaker
40/50A Quadplex Miniature Circuit Breaker
Description
The BQ250250 is a quadplex miniature circuit breaker from Eaton's BR family, providing two separate 50A, 240V circuits while occupying just two standard panel spaces. This configuration is ideal for residential applications where panel capacity is limited. Engineered for plug-on installation, it fits Eaton Type BR, Bryant, Westinghouse, and Challenger load centers. Rated for 10 kAIC at 120/240VAC, it features independent trip mechanisms and is fully HACR rated for HVAC equipment.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BQ250250 |
| Series | BQ |
| Amperage | 50/50A |
| Poles | 4 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |

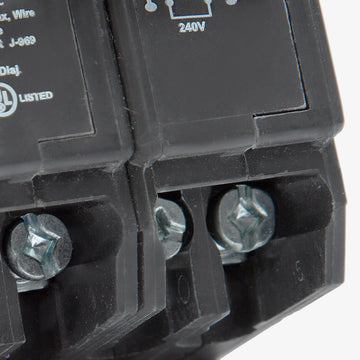

| Terminal Type | Box Lugs |
|---|---|
| For Use With | Eaton BR Load Centers, Bryant Load Centers, Westinghouse Load Centers, Challenger Load Centers |
| Wire Gauge | 14-4 AWG |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | Quadplex |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Rejection Tab |
| Standards | CSA C22.2 No. 5, Federal Specification W-C375, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | HACR Rated, Common Trip, Rejection Tab |
Product FAQs
6 answersHow many panel spaces does the BQ250250 require?
This quadplex breaker provides two separate 2-pole 50A circuits while occupying only two standard 1-inch panel spaces.
Which load centers are compatible with the BQ250250?
This plug-on breaker is compatible with Eaton Type BR, Bryant, Westinghouse, and Challenger load centers that accept Class CTL breakers.
Does this breaker have a rejection tab?
Yes, the BQ250250 is a Class CTL breaker equipped with a rejection tab. This ensures it can only be installed in panel slots specifically designed to accept tandem or quadplex breakers.
What is the difference between the BQ250250 and BQC250250?
The BQ250250 features independent trip mechanisms, while the BQC250250 features common trip mechanisms. Check your local electrical code and equipment requirements to determine which trip type is required for your 240V loads.
Is the BQ250250 suitable for HVAC equipment?
Yes, this breaker is HACR rated, making it suitable for use with heating, air conditioning, and refrigeration equipment.
Can I use this breaker in a Square D or Siemens panel?
No, the BQ250250 is strictly designed for Eaton BR, Bryant, Westinghouse, and Challenger load centers. It is not interchangeable with Square D, Siemens, or other manufacturer panels.
