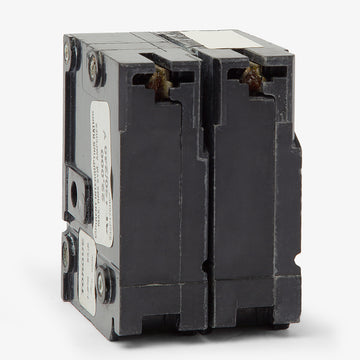

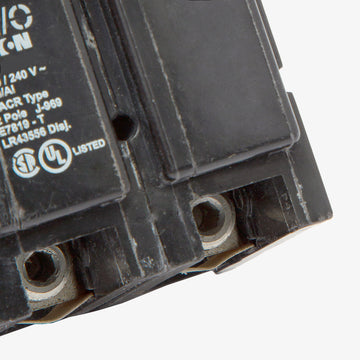

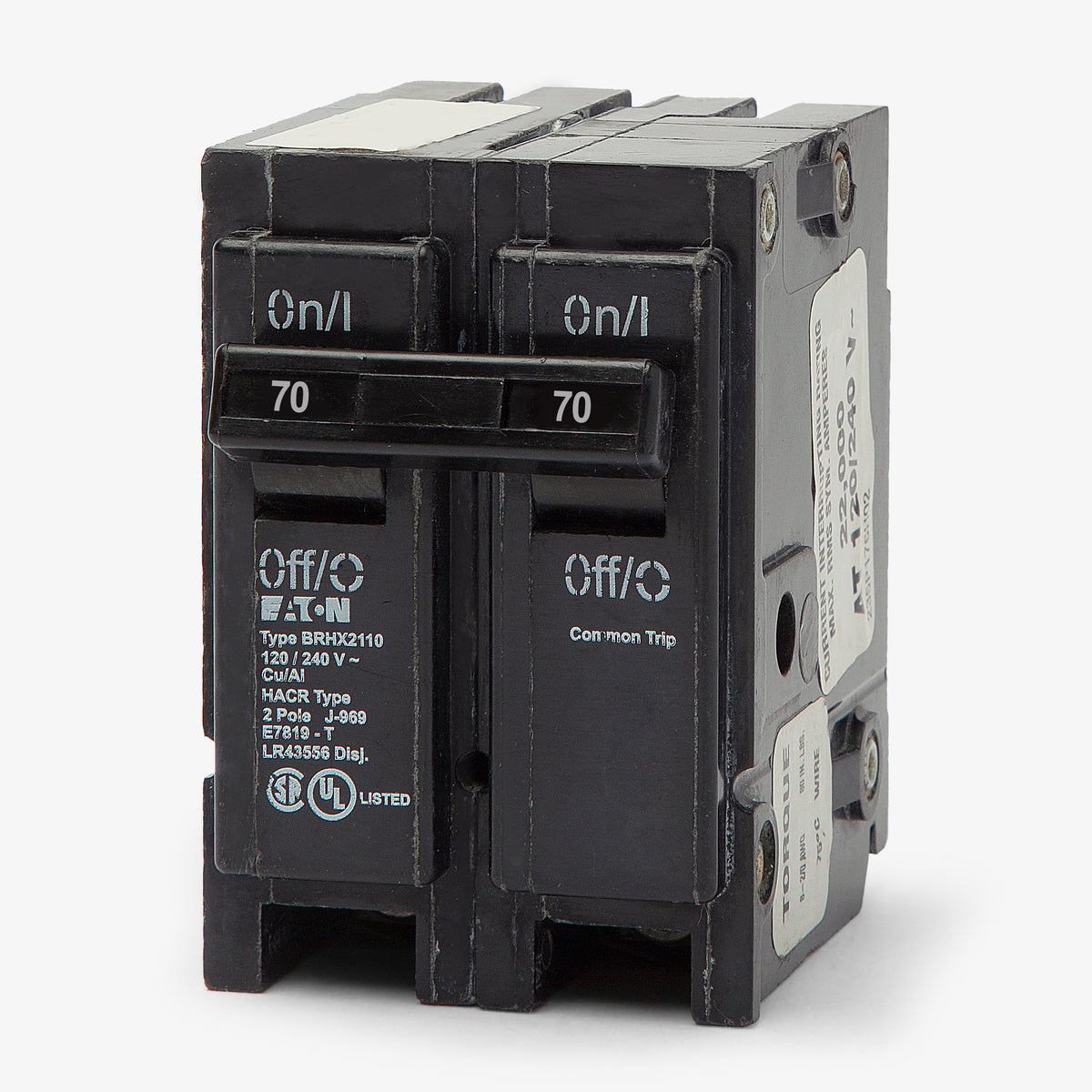

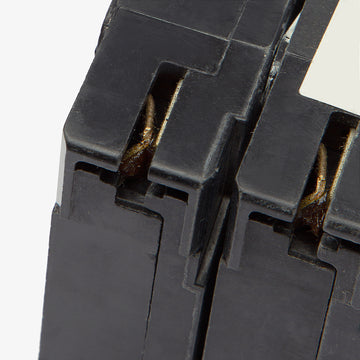

Eaton / Cutler-Hammer BR270 Miniature Circuit Breaker
- 70A
- 2 Pole
- Plug-On
Eaton / Cutler-Hammer
BR270
Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
BR270
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer BR270 - 70A 2 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer BR270 - 70A 2 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BR270 |
| Series | BR |
| Amperage | 70A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | BR |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Type BR Load Centers |
| Wire Gauge | 8-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment |
|---|---|
| Standards | Federal Specification W-C375, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | Common Trip, HACR Rated |
Sold out
Quantity
Eaton / Cutler-Hammer BR270 - 70A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BR270-R |
| Series | BR |
| Amperage | 70A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | BR |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Type BR Load Centers |
| Wire Gauge | 8-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment |
|---|---|
| Standards | Federal Specification W-C375, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | Common Trip, HACR Rated |
Similar Items
60A 2 Pole Miniature Circuit Breaker
90A 2 Pole Miniature Circuit Breaker
90A 2 Pole Miniature Circuit Breaker
Description
Built to safeguard residential systems, this 70A, two-pole Eaton breaker offers dependable thermal-magnetic protection. It handles demanding 120/240V applications like subpanels and large appliances. Designed for Eaton Type BR load centers, it utilizes a convenient plug-on mounting style. It requires two 1-inch spaces in the panelboard and accommodates 8-1/0 AWG wiring. Carrying a 10 kAIC rating, this unit ensures robust performance. It is fully HACR rated for HVAC equipment.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BR270 |
| Series | BR |
| Amperage | 70A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | BR |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Type BR Load Centers |
| Wire Gauge | 8-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment |
|---|---|
| Standards | Federal Specification W-C375, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | Common Trip, HACR Rated |
Product FAQs
7 answersWhat load centers are compatible with the BR270?
It is designed for Eaton and Cutler-Hammer Type BR load centers. It is also UL approved for use in specific legacy Westinghouse, Challenger, and Bryant panels that accept Type BR breakers.
Can I install this breaker in a Square D or Siemens panel?
No. The BR270 is not UL listed for use in Square D, Siemens, or GE load centers. You must use the manufacturer's approved breakers for those panels to maintain safety and code compliance.
How many panel spaces does the BR270 require?
This is a 2-pole breaker with a 1-inch width per pole, so it requires two standard 1-inch spaces in your panelboard.
Does the BR270 replace older Bryant or Westinghouse breakers?
Yes. Eaton acquired these brands, and the BR270 is the direct, UL approved replacement for legacy Bryant BR270 and Westinghouse BR270 70-amp breakers.
Is the BR270 an AFCI or GFCI breaker?
No. This is a standard thermal magnetic circuit breaker. It does not provide arc fault (AFCI) or ground fault (GFCI) protection.
Do the terminals on the BR270 accept aluminum wiring?
Yes. The box lugs are rated for both copper and aluminum conductors ranging from 8 AWG to 1/0 AWG. We recommend applying an approved oxide inhibitor when using aluminum wire.
Is this breaker HACR rated?
Yes. Eaton BR 2-pole circuit breakers are HACR rated, meaning they are approved for use with heating, air conditioning, and refrigeration equipment that requires a 70-amp circuit.
