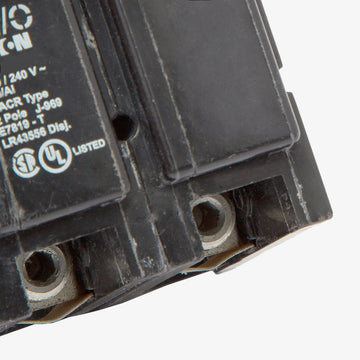

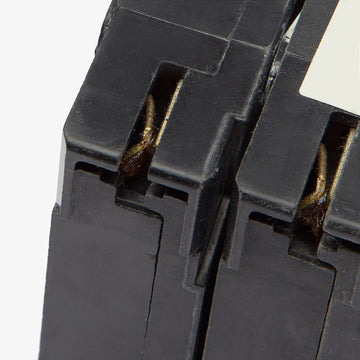

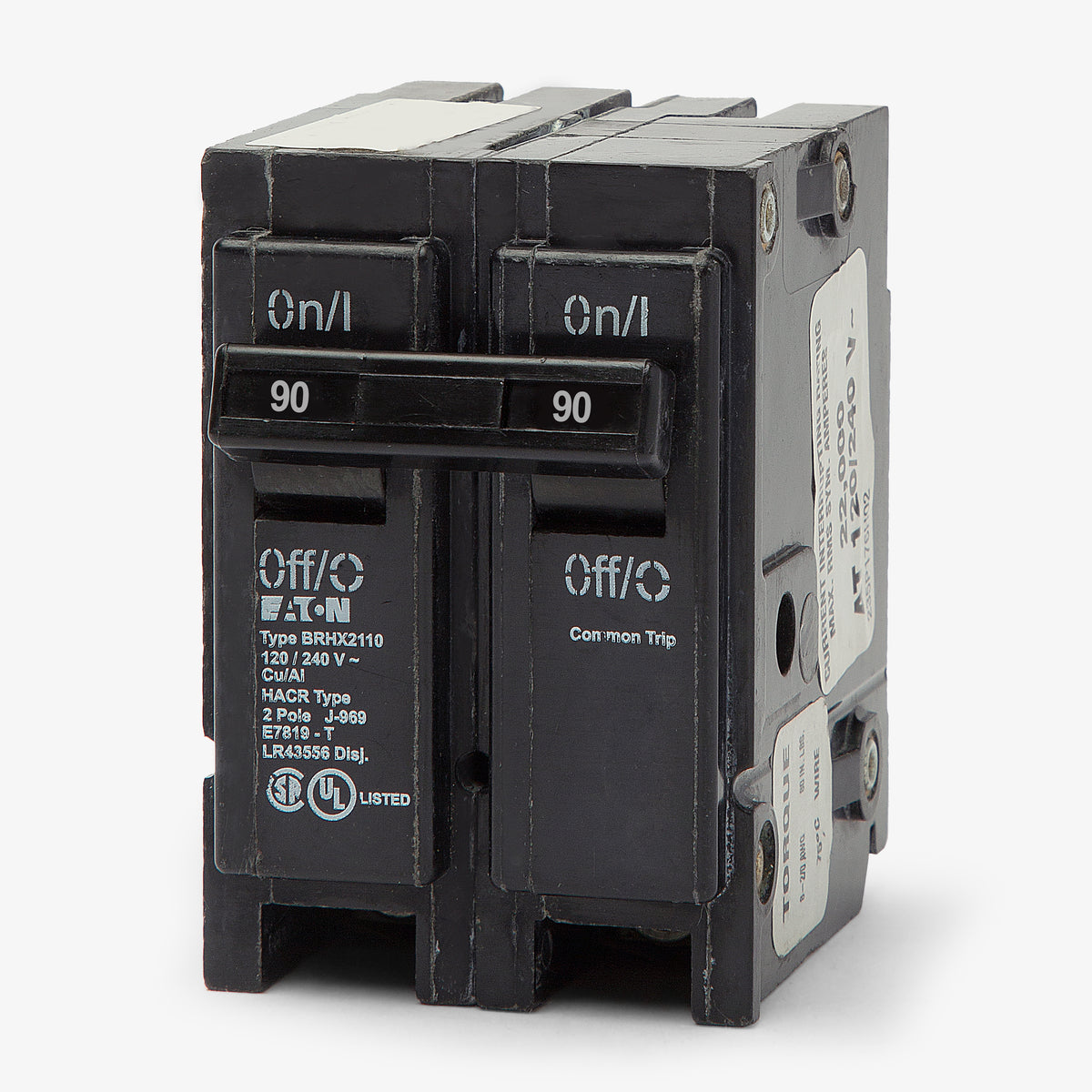

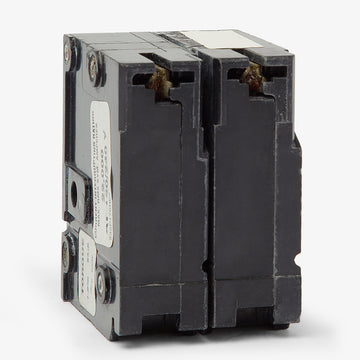

Eaton / Cutler-Hammer BR290 Miniature Circuit Breaker
- 90A
- 2 Pole
- Plug-On
Eaton / Cutler-Hammer
BR290
Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
BR290
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer BR290 - 90A 2 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer BR290 - 90A 2 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BR290 |
| Series | BR |
| Amperage | 90A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | BR |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Type BR Load Centers |
| Wire Gauge | 8 AWG - 1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment, Handle Lock |
|---|---|
| Standards | Federal Specification W-C375, UL 489 |
| Approval | UL |
| Temp Rating | 60C, 75C |
| Construction Features | Common Trip, HACR Rated |
Sold out
Quantity
Eaton / Cutler-Hammer BR290 - 90A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BR290-R |
| Series | BR |
| Amperage | 90A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | BR |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Type BR Load Centers |
| Wire Gauge | 8 AWG - 1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment, Handle Lock |
|---|---|
| Standards | Federal Specification W-C375, UL 489 |
| Approval | UL |
| Temp Rating | 60C, 75C |
| Construction Features | Common Trip, HACR Rated |
Similar Items
100A 2 Pole Miniature Circuit Breaker
100A 2 Pole Miniature Circuit Breaker
70A 2 Pole Miniature Circuit Breaker
Description
Built for demanding residential electrical systems, this 90-amp double-pole breaker provides essential thermal-magnetic protection. It is an excellent choice for feeding subpanels, large electric heating systems, or heavy-duty workshop equipment. Installation is straightforward, as the unit snaps into any standard Eaton Type BR load center. It requires two full inches of panel space and is fully backward compatible with legacy Bryant load centers.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BR290 |
| Series | BR |
| Amperage | 90A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | BR |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Type BR Load Centers |
| Wire Gauge | 8 AWG - 1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment, Handle Lock |
|---|---|
| Standards | Federal Specification W-C375, UL 489 |
| Approval | UL |
| Temp Rating | 60C, 75C |
| Construction Features | Common Trip, HACR Rated |
Product FAQs
5 answersCan the BR290 be used in Challenger or Westinghouse electrical panels?
Yes. Eaton Type BR circuit breakers are UL listed as genuine replacement breakers for most vintage Cutler-Hammer, Bryant, Westinghouse, and Challenger load centers that accept 1-inch plug-on breakers. Always verify the panel label to ensure Type BR or Type C compatibility.
Does the Eaton BR290 replace the Bryant BR290?
Yes. Eaton acquired the Bryant and Westinghouse distribution equipment lines. The current Eaton BR290 is the exact, UL-listed manufacturer replacement for obsolete Bryant BR290 and Westinghouse BR290 circuit breakers.
How much panel space is required to install the BR290?
This 2-pole breaker requires two standard 1-inch spaces in a Type BR load center. It will not fit in load centers designed for 3/4-inch Type CH breakers.
Is this circuit breaker rated for HVAC equipment?
Yes. Eaton Type BR 2-pole breakers are HACR rated, meaning they are UL listed for safe use with heating, air conditioning, and refrigeration motor loads.
How do you properly reset this breaker if it trips?
When tripped, the breaker handle moves to a center position. To restore power, you must firmly push the handle completely to the OFF position first, then move it back to the ON position.
