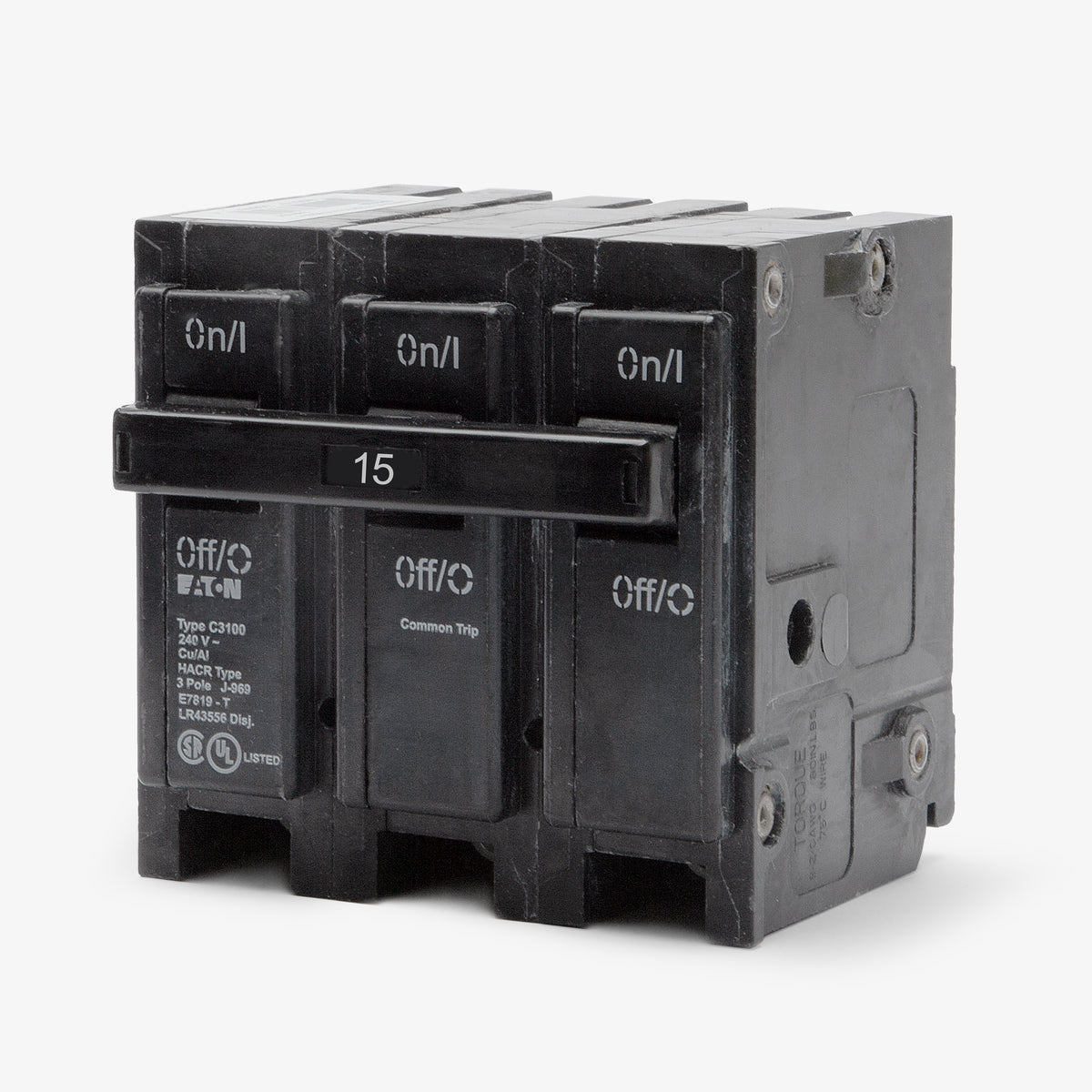

Eaton / Cutler-Hammer BR315 Miniature Circuit Breaker
- 15A
- 3 Pole
- Plug-On
Eaton / Cutler-Hammer
BR315
Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
BR315
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer BR315 - 15A 3 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer BR315 - 15A 3 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BR315 |
| Series | BR |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Plug-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Type BR Load Centers |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment, Handle Lock |
|---|---|
| Standards | Federal Specification W-C375, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | Common Trip, HACR Rated |
Sold out
Quantity
Eaton / Cutler-Hammer BR315 - 15A 3 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BR315-R |
| Series | BR |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Plug-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Type BR Load Centers |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment, Handle Lock |
|---|---|
| Standards | Federal Specification W-C375, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | Common Trip, HACR Rated |
Similar Items
20A 3 Pole Miniature Circuit Breaker
20A 3 Pole Miniature Circuit Breaker
25A 3 Pole Miniature Circuit Breaker
Description
A practical solution for residential power distribution, this 15A three-pole breaker ensures safe operation across multiple circuits. It utilizes proven thermal-magnetic technology to quickly disconnect power during overloads or short circuits. Designed exclusively for Eaton Type BR load centers, the unit features a convenient plug-on mounting style for quick installation. It occupies three standard 1-inch spaces, is HACR rated, and delivers a 10kAIC interrupting capacity at 240VAC.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BR315 |
| Series | BR |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Plug-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Type BR Load Centers |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment, Handle Lock |
|---|---|
| Standards | Federal Specification W-C375, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | Common Trip, HACR Rated |
Product FAQs
4 answersWhich load centers are compatible with the Eaton BR315 circuit breaker?
The BR315 is designed for use in Eaton Type BR load centers. It is also UL approved for installation in compatible Westinghouse, Challenger, Bryant, and Cutler-Hammer panels that accept Type BR breakers.
How much panel space does the BR315 require for installation?
This three-pole breaker requires three standard 1-inch spaces, taking up a total of 3 inches of width on the panel bus.
Is the Eaton BR315 suitable for HVAC equipment?
Yes, this breaker is HACR rated, making it suitable for use with heating, air conditioning, and refrigeration equipment that requires a 15A three-pole breaker.
How does the trip mechanism function on this three-pole breaker?
The BR315 features a common trip mechanism. If an overload or short circuit occurs on any single pole, all three poles will trip simultaneously to safely disconnect power to the entire circuit.
