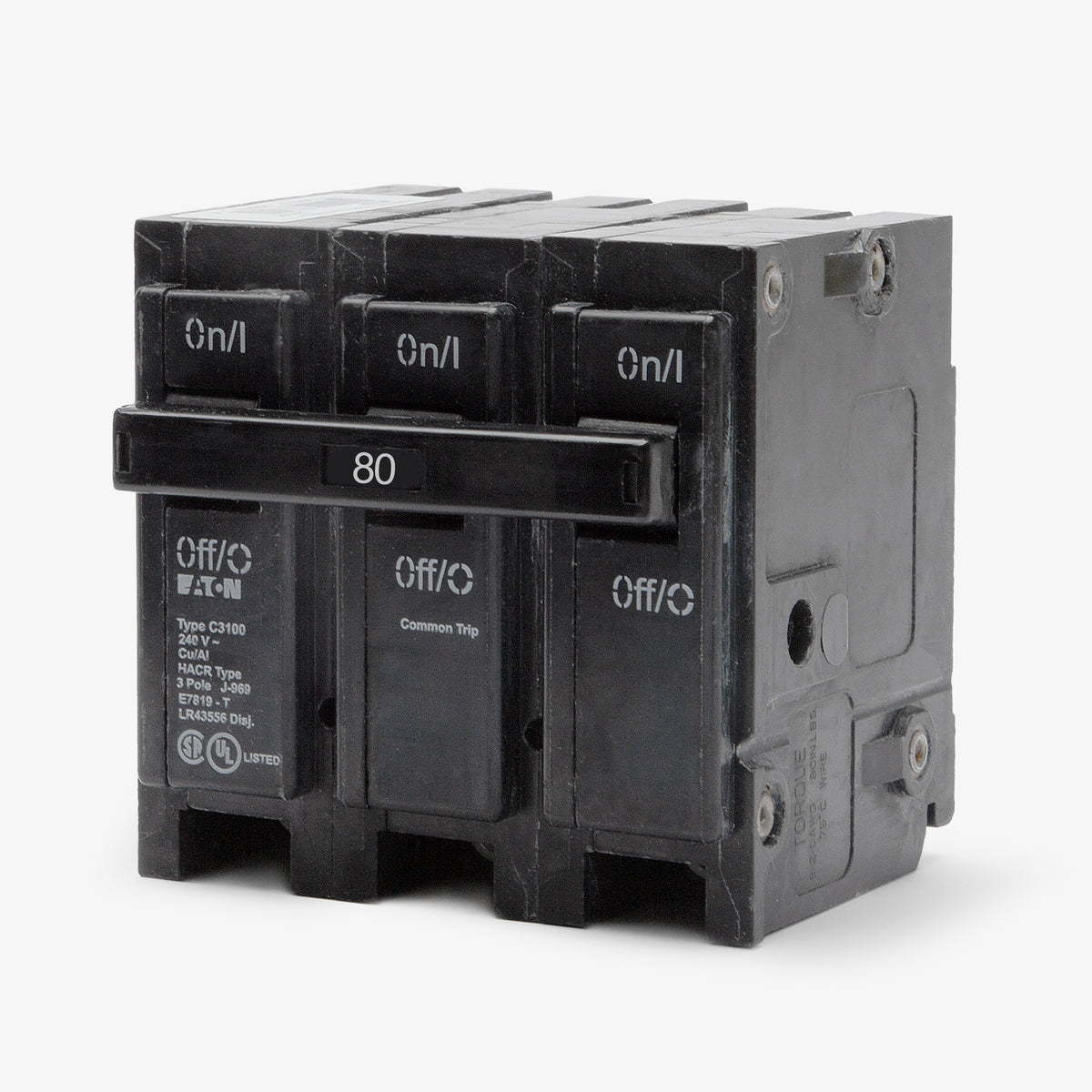

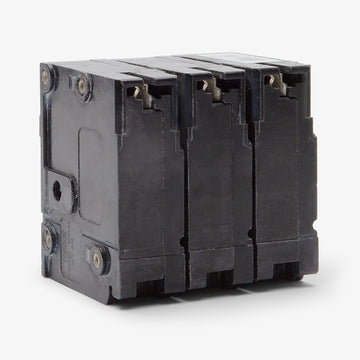

Eaton / Cutler-Hammer BR380 Miniature Circuit Breaker
- 80A
- 3 Pole

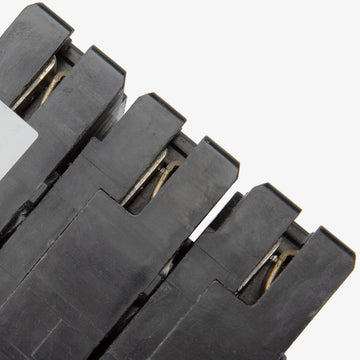

- Plug-On
Eaton / Cutler-Hammer
BR380
Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
BR380
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer BR380 - 80A 3 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer BR380 - 80A 3 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BR380 |
| Series | BR |
| Amperage | 80A |
| Poles | 3 |
| Mounting Style | Plug-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |

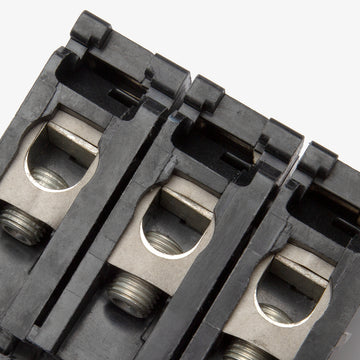

| Terminal Type | Box Lugs |
|---|---|
| For Use With | Type BR Load Centers |
| Wire Gauge | 4-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment |
|---|---|
| Standards | Federal Specification W-C375, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | Common Trip |
Sold out
Quantity
Eaton / Cutler-Hammer BR380 - 80A 3 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BR380-R |
| Series | BR |
| Amperage | 80A |
| Poles | 3 |
| Mounting Style | Plug-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Type BR Load Centers |
| Wire Gauge | 4-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment |
|---|---|
| Standards | Federal Specification W-C375, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | Common Trip |
Similar Items
90A 3 Pole Miniature Circuit Breaker
90A 3 Pole Miniature Circuit Breaker
70A 3 Pole Miniature Circuit Breaker
Description
Manufactured by Eaton, the BR380 is a three-pole miniature breaker built for residential and commercial applications. It provides thermal-magnetic protection for 240VAC branch circuits. This plug-on unit mounts into standard Type BR load centers. It accepts 4-1/0 AWG wiring and serves as a reliable substitute for legacy QP380, MP380, and THQL32080 components. Rated at 10kAIC, the breaker features common trip functionality and is HACR certified for HVAC equipment.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BR380 |
| Series | BR |
| Amperage | 80A |
| Poles | 3 |
| Mounting Style | Plug-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Type BR Load Centers |
| Wire Gauge | 4-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment |
|---|---|
| Standards | Federal Specification W-C375, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | Common Trip |
Product FAQs
6 answersHow many panel spaces does the BR380 require for installation?
As a 3-pole breaker in the Type BR series, it requires three standard 1-inch spaces, occupying a total width of 3 inches on the panel bus.
Can the BR380 be used to replace breakers in older Challenger or Westinghouse panels?
Yes, Eaton Type BR breakers are UL approved direct replacements for legacy Challenger Type C breakers, as well as older Westinghouse and Bryant Type BR breakers.
Is this breaker interchangeable with Eaton Type CH breakers?
No. Eaton Type BR breakers measure 1 inch per pole, whereas Type CH breakers measure 3/4 inch per pole. Their mounting footprints and panel bus designs are entirely different and incompatible.
Will this 3-pole breaker fit in a typical residential 120/240V load center?
No. Standard residential load centers are single-phase and only accept 1-pole or 2-pole breakers. This 3-pole breaker is designed exclusively for 3-phase Eaton BR panels.
What is required if I want to back-feed this breaker as a main?
When back-feeding the BR380 to use as a main breaker, the National Electrical Code (NEC) requires a compatible Eaton hold-down kit to secure the breaker firmly to the panel bus.
Can this breaker be installed in systems with an available fault current exceeding 10 kA?
No, the BR380 has a maximum interrupting rating of 10 kAIC at 240 VAC. For panels with higher available fault currents, you must specify a high-interrupting version such as the 22 kAIC rated BRH380.
