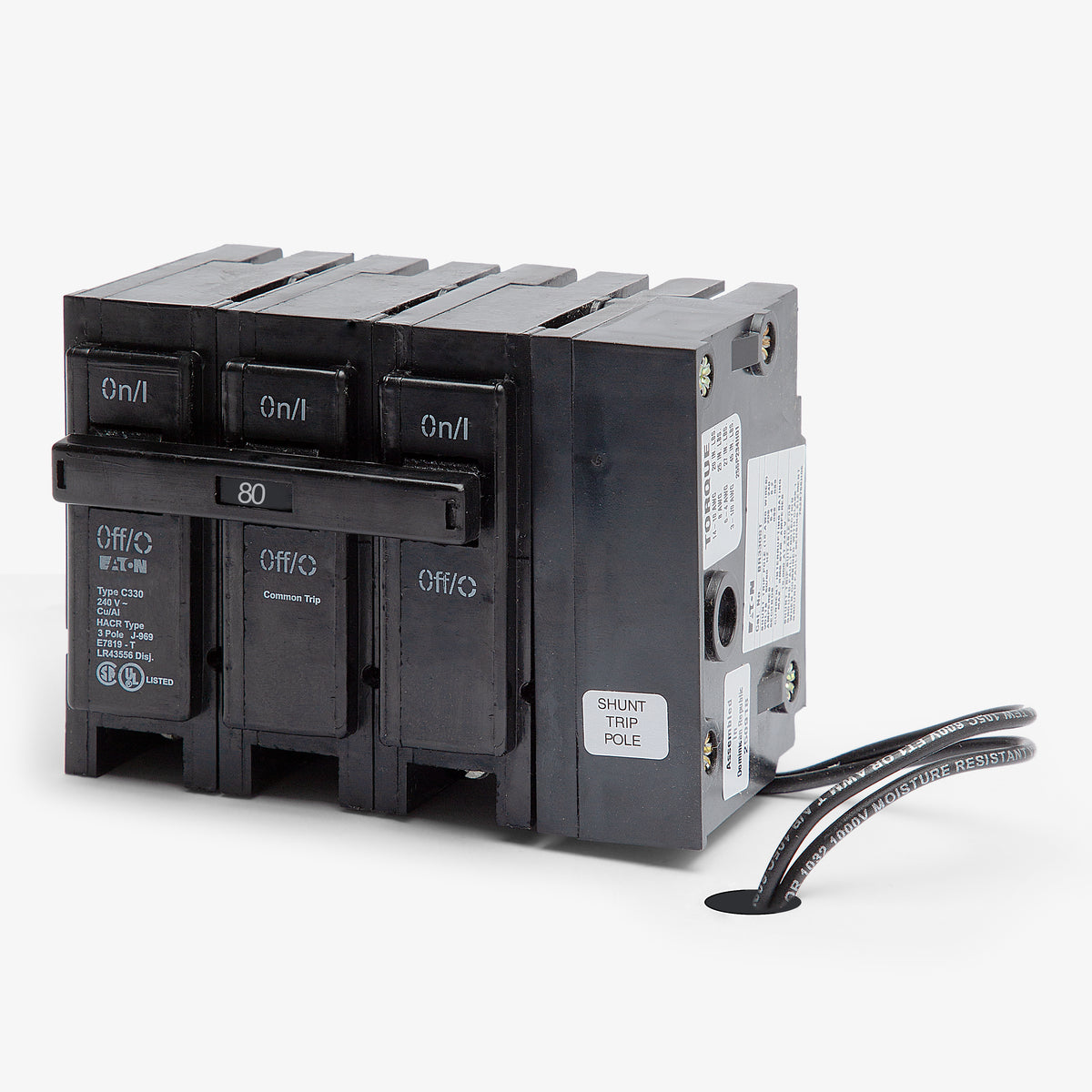

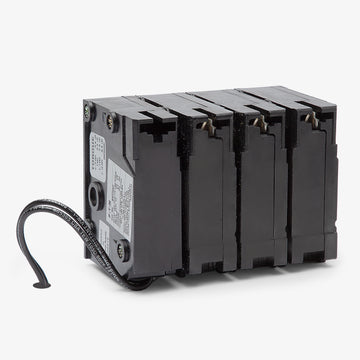

Eaton / Cutler-Hammer BR380ST Miniature Circuit Breaker
- 80A
- 3 Pole
- Plug-On
Eaton / Cutler-Hammer
BR380ST
Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
BR380ST
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer BR380ST - 80A 3 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
70A 3 Pole Miniature Circuit Breaker
100A 3 Pole Miniature Circuit Breaker
60A 3 Pole Miniature Circuit Breaker
Description
Built for commercial applications, the Eaton BR380ST is a three-pole miniature breaker equipped with a shunt trip accessory. This allows the unit to be tripped remotely for emergency shutdowns. The 80A device features a plug-on mounting style for installation into standard Type BR load centers. It utilizes box lugs that accommodate 4-1/0 AWG copper or aluminum conductors. Delivering 10kAIC at 240VAC, the breaker utilizes thermal-magnetic technology with common trip functionality.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | BR |
| Amperage | 80A |
| Poles | 3 |
| Mounting Style | Plug-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | BR |
|---|---|

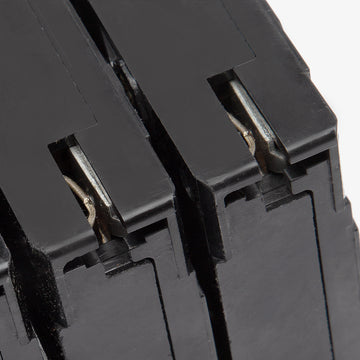

| Terminal Type | Box Lugs |
| For Use With | Type BR Load Centers |
| Wire Gauge | 4-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Shunt Trip |
| Standards | Federal Specifications Classification W-C375, UL 489 |
| Approval | UL |
| Temp Rating | 60C to 75C |
| Construction Features | Common Trip |
Product FAQs
7 answersWhat does the ST suffix indicate on the BR380ST?

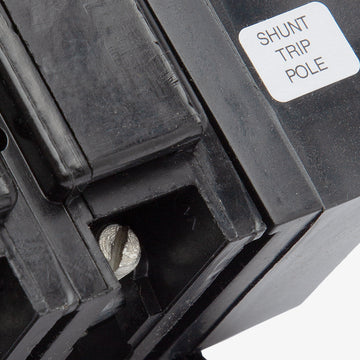

The ST suffix means this breaker includes a factory-installed shunt trip. This allows the breaker to be tripped remotely for emergency shutdowns or control applications.
What voltage is required to operate the shunt trip on this breaker?
The shunt trip requires a 120VAC momentary signal to activate. A continuous voltage signal should not be applied, as it can burn out the shunt coil.
How many panel spaces does the BR380ST occupy?
The BR380ST requires four 1-inch spaces in the panel. While it is a 3-pole breaker, the factory-installed shunt trip accessory occupies one additional 1-inch space.
Can I add a shunt trip to a standard BR380 breaker in the field?
No. Shunt trips cannot be field-installed on Eaton Type BR miniature circuit breakers. If your application requires remote tripping, you must order a breaker with a factory-installed shunt trip like the BR380ST.
Can this breaker be installed in older Bryant panels?
Yes, Eaton Type BR breakers are backward compatible with legacy Cutler-Hammer and Bryant panels that accept Type BR plug-on breakers. You will need four available 1-inch spaces to accommodate the breaker and the shunt trip.
Is the BR380ST rated for HVAC equipment?
Yes, all Eaton Type BR 3-pole circuit breakers are HACR rated for use with heating, air conditioning, and refrigeration equipment.
Does this breaker feature a common trip mechanism?
Yes, it features an internal common trip mechanism. If an overload or short circuit occurs on any single phase, all three poles will trip simultaneously to disconnect power to the load.
