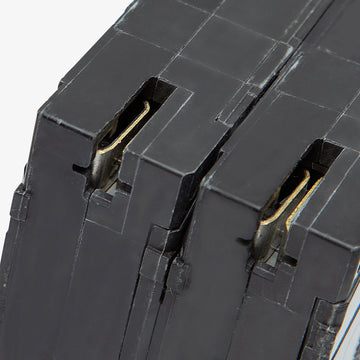

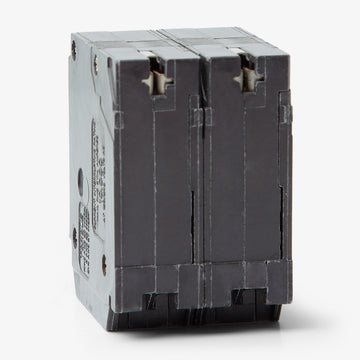

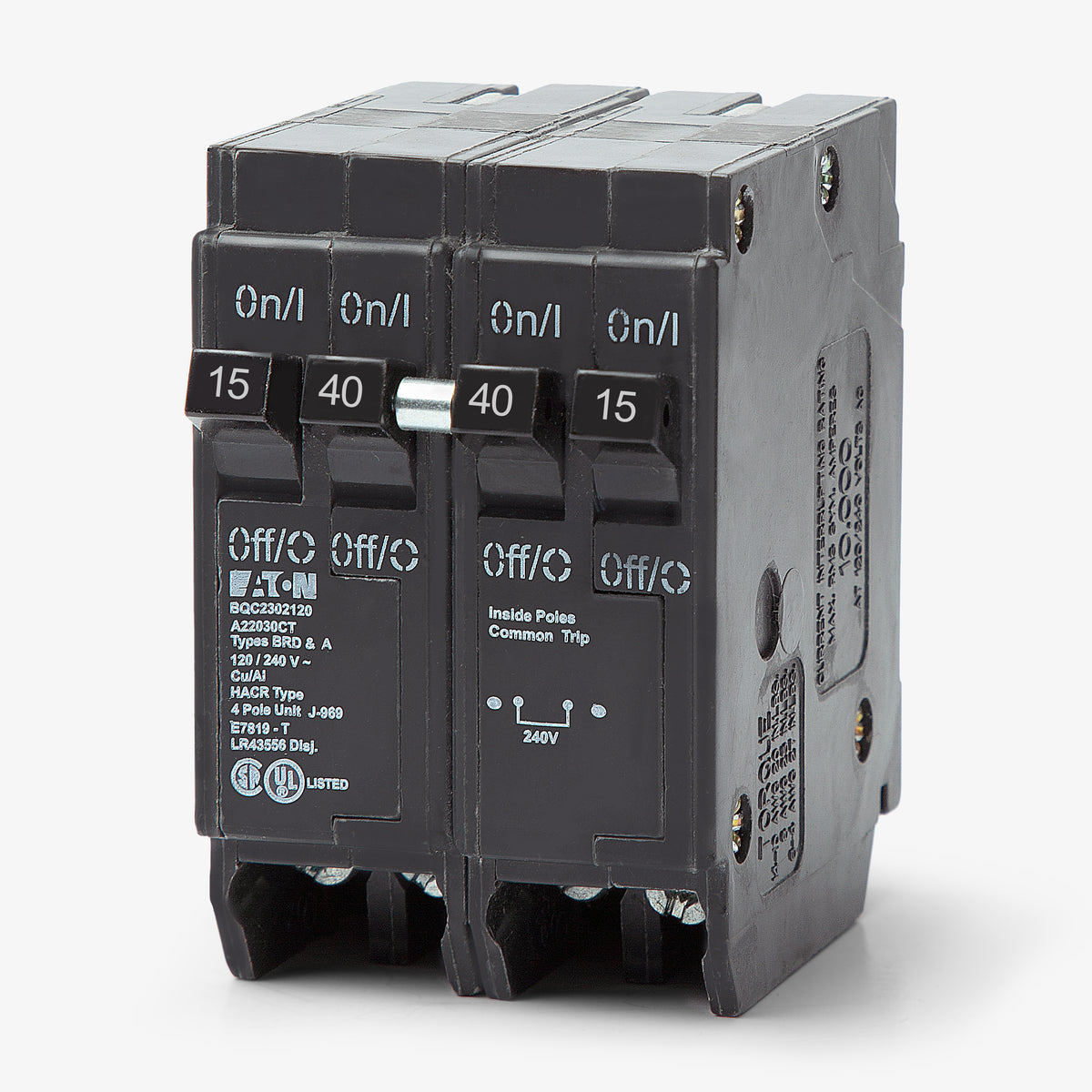

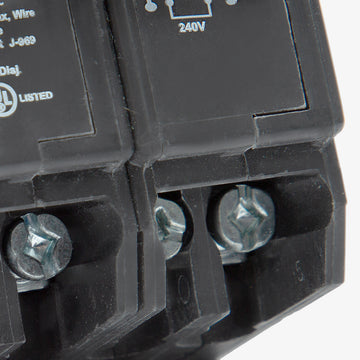

Eaton / Cutler-Hammer BRD2402115 15/40A Quadplex Miniature Circuit Breaker
- 15/40A
- 4 Pole
- Plug-On
Eaton / Cutler-Hammer
BRD2402115
15/40A Quadplex Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
BRD2402115
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer BRD2402115 - 15/40A Quadplex Miniature Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerBRD230240
30/40A Quadplex Miniature Circuit Breaker
Eaton / Cutler-HammerBRD220250
20/50A Quadplex Miniature Circuit Breaker
Eaton / Cutler-HammerBRD230250
30/50A Quadplex Miniature Circuit Breaker
Description
Built to optimize enclosure capacity, this 15/40A non-CTL quadplex breaker supplies four independent poles of protection in a standard two-pole footprint. It is widely used in residential and commercial environments to safely add circuits to existing setups. The plug-on unit fits Type BR load centers and serves as a drop-in replacement for legacy DNPL154015 and BQ2402115 breakers.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | BRD |
| Amperage | 15/40A |
| Poles | 4 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | BR |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Type BR Load Centers |
| Wire Gauge | 14-4 AWG |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | Quadplex |
|---|---|
| Available Options | Padlock Attachment |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Non-CTL, HACR Rated, Independent Trip |
Product FAQs
6 answersWhich load centers are compatible with the BRD2402115 quad breaker?
It is designed for Eaton, Cutler-Hammer, Bryant, Westinghouse, and Challenger Type BR load centers that accept non-CTL quadplex breakers.
How are the 15A and 40A circuits configured on this quadplex breaker?
The outer poles provide two independent 1-pole 15A circuits for 120V loads, while the inner poles provide one 2-pole 40A circuit for 240V applications.
What legacy catalog numbers does the BRD2402115 replace?
This unit is a direct drop-in replacement for older Cutler-Hammer, Bryant, and Westinghouse DNPL154015 and BQ2402115 quadplex breakers.
Is this a CTL or non-CTL circuit breaker?
The BRD2402115 is a non-CTL breaker. It does not feature a rejection clip and is intended for use in older panels installed before Circuit Total Limiting requirements were adopted.
How many panel spaces does this quad breaker require?
Despite providing four independent poles of protection, this quadplex breaker fits into a standard two-pole space in the load center.
Is it safe to install this Type BR breaker in a different brand's panel?
No. Installing this breaker in an unapproved or incompatible panel can cause loose connections, leading to severe fire or shock hazards. Only use it in listed Eaton, Cutler-Hammer, or approved legacy enclosures.
