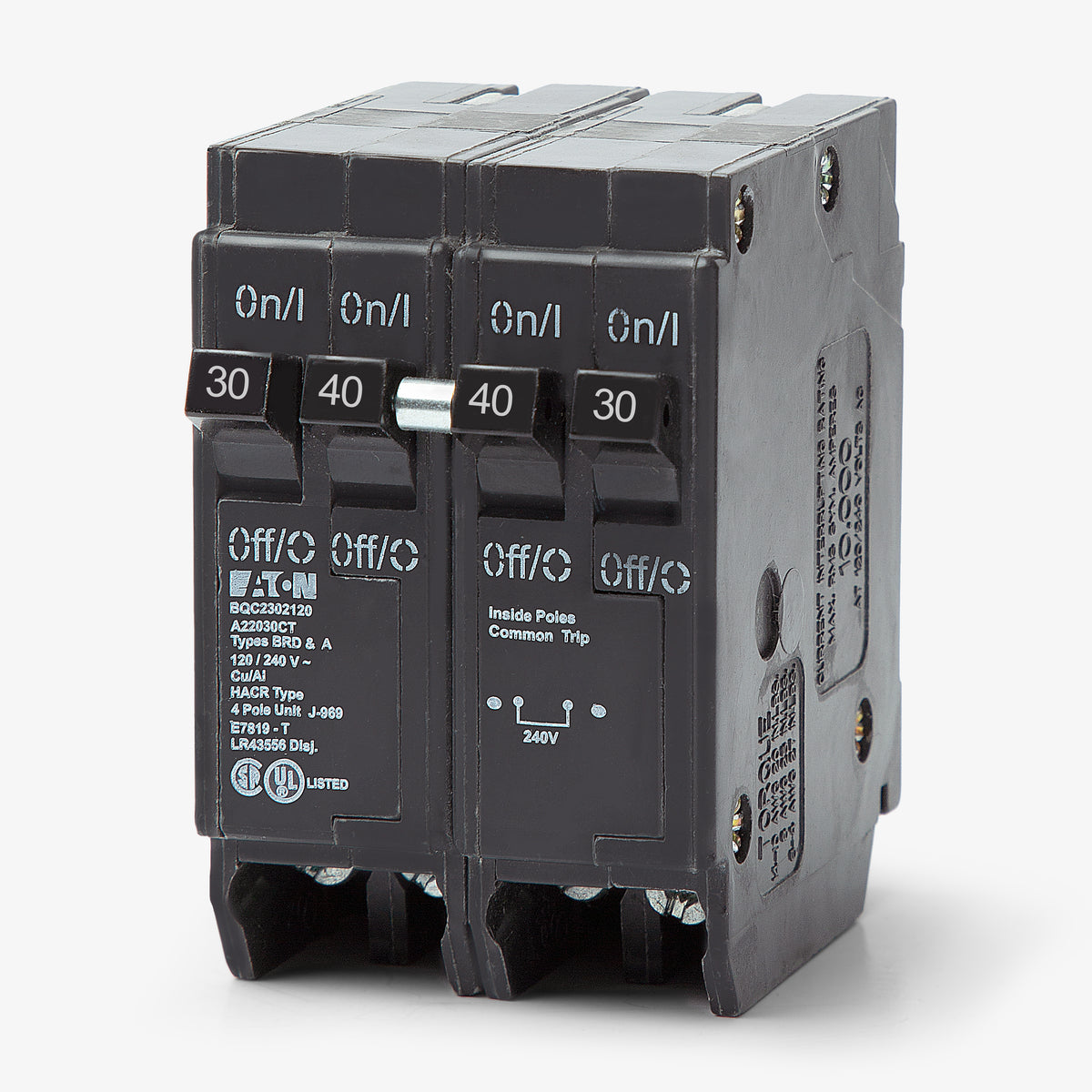

Eaton / Cutler-Hammer BRD230240 30/40A Quadplex Miniature Circuit Breaker
- 30/40A
- 4 Pole
- Plug-On
Eaton / Cutler-Hammer
BRD230240
30/40A Quadplex Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
BRD230240
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer BRD230240 - 30/40A Quadplex Miniature Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerBRD2402115
15/40A Quadplex Miniature Circuit Breaker
Eaton / Cutler-HammerBRD220250
20/50A Quadplex Miniature Circuit Breaker
Eaton / Cutler-HammerBRD230250
30/50A Quadplex Miniature Circuit Breaker
Description
Engineered for high-density power distribution, the Eaton BRD230240 quadplex breaker supplies one 30A and one 40A 240V circuit. It occupies only two standard 1-inch spaces, freeing up valuable room in residential and commercial enclosures. This non-CTL plug-on breaker fits perfectly into Eaton Type BR load centers. It also serves as an exact substitute for the legacy BQ230240, making it a reliable solution for older panels. The HACR-rated breaker provides a 10 kAIC interrupt capacity.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | BRD |
| Amperage | 30/40A |
| Poles | 4 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | BR |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Type BR Load Centers |
| Wire Gauge | 14-4 AWG Cu/Al |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | Quadplex |
|---|---|
| Available Options | Padlock Attachment |
| Standards | Federal Specification W-C375, UL 489 |
| Approval | UL |
| Temp Rating | 60 to 75C |
| Construction Features | HACR Rated |
Product FAQs
4 answersIs the BRD230240 a CTL or Non-CTL circuit breaker?
The BRD230240 is a Non-CTL quadplex breaker. It lacks a rejection clip, allowing it to be installed in older pre-1968 load centers with unnotched bus stabs. It is intended for replacement use only.
Which poles are 30A and which are 40A on the BRD230240?
This quadplex breaker features a 2-pole 30A outer circuit and a 2-pole 40A inner (center) circuit.
What legacy panel brands accept the BRD230240?
In addition to current Eaton Type BR load centers, this breaker is backward compatible as a replacement for older Bryant, Westinghouse, Challenger, and Cutler-Hammer BR-series panels that accept Non-CTL quad breakers.
How much panel space does the Eaton BRD230240 require?
It provides two independent 2-pole circuits (30A and 40A) while occupying exactly two standard 1-inch spaces on the busbar.
