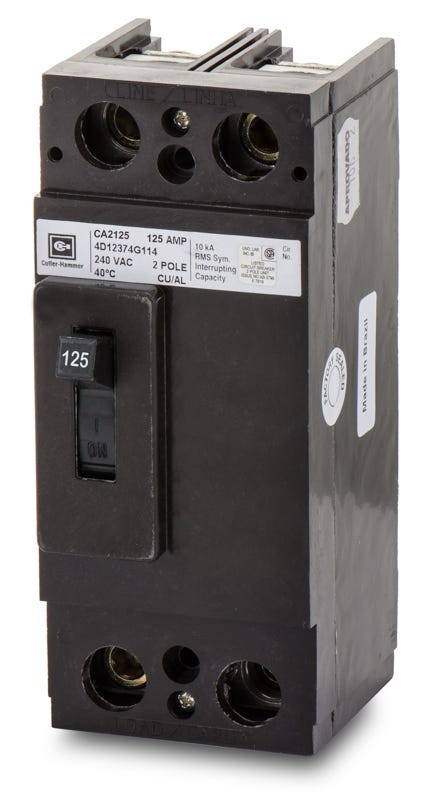

Eaton / Cutler-Hammer CA2125 Molded Case Circuit Breaker
- 125A
- 2 Pole
- Unit Mount
Eaton / Cutler-Hammer
CA2125
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
CA2125
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer CA2125 - 125A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
Eaton / Cutler-Hammer CA2125 - 125A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CA2125 |
| Series | CA |
| Amperage | 125A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | CA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Westinghouse CDP, FDP, Pow-R-Line Panelboards |
| Wire Gauge | 3 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 3 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | UL 489, NEMA AB-1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Quantity
Eaton / Cutler-Hammer CA2125 - 125A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CA2125-R |
| Series | CA |
| Amperage | 125A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | CA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Westinghouse CDP, FDP, Pow-R-Line Panelboards |
| Wire Gauge | 3 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 3 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | UL 489, NEMA AB-1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Similar Items
125A 3 Pole Molded Case Circuit Breaker
125A 2 Pole Molded Case Circuit Breaker
Description
Designed to support industrial and commercial facilities, the Eaton CA2125 is a 2-pole, 125A molded case circuit breaker. It delivers consistent power management for systems relying on traditional unit-mount hardware. This component installs into legacy Westinghouse CDP, FDP, and Pow-R-Line panelboards. It provides an exact fit for older setups, serving as a substitute for the CC2125, while the EHD2125 is its modern replacement.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CA2125-R |
| Series | CA |
| Amperage | 125A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | CA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Westinghouse CDP, FDP, Pow-R-Line Panelboards |
| Wire Gauge | 3 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 3 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | UL 489, NEMA AB-1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Product FAQs
5 answersWhich panelboards are compatible with the CA2125 circuit breaker?
It is designed to bolt into legacy Westinghouse CDP and FDP distribution panels, as well as Eaton Pow-R-Line panelboards.
What wire sizes are accepted by the lugs on the CA2125?
The factory-installed line and load lugs accept 3 AWG to 300 kcmil conductors. They are dual-rated for both aluminum and copper wiring.
Can the CA2125 replace older Westinghouse circuit breakers?
Yes. The Eaton CA2125 is an exact replacement for the original Westinghouse CA2125. It also serves as a direct substitute for the legacy CC2125. For a modern equivalent, the EHD2125 is the current replacement for this frame.
What does the LI trip function indicate on this breaker?
The LI designation means it features a thermal-magnetic trip unit with Long-Time (L) and Instantaneous (I) protection. The thermal element provides fixed overload protection, while the magnetic element offers fixed short-circuit protection.
How does the CA2125 mount into a panelboard?
It is a unit-mount breaker with a feed-thru connection. This means it bolts directly to the panel chassis or mounting pan and uses lugs on both the line and load sides, rather than plugging onto a busbar.
