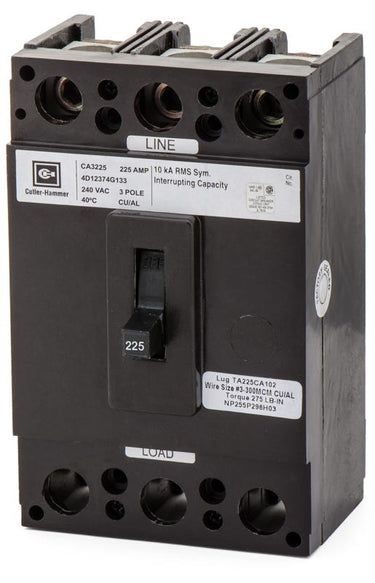

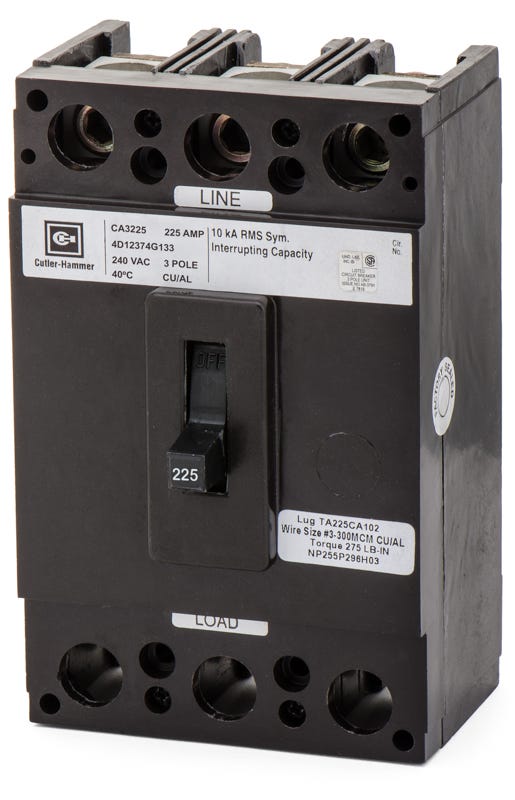

Eaton / Cutler-Hammer CA3225 Molded Case Circuit Breaker
- 225A
- 3 Pole
- Unit Mount
Eaton / Cutler-Hammer
CA3225
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
CA3225
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer CA3225 - 225A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
Eaton / Cutler-Hammer CA3225 - 225A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CA3225 |
| Series | CA |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Westinghouse CDP, FDP, Pow-R-Line Panelboards |
| Wire Gauge | 3 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 3 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | UL 489, NEMA AB-1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip, Trip-Free Mechanism |
Quantity
Eaton / Cutler-Hammer CA3225 - 225A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CA3225-R |
| Series | CA |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Westinghouse CDP, FDP, Pow-R-Line Panelboards |
| Wire Gauge | 3 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 3 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | UL 489, NEMA AB-1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip, Trip-Free Mechanism |
Similar Items
150A 3 Pole Molded Case Circuit Breaker
125A 3 Pole Molded Case Circuit Breaker
Description
Designed to support existing infrastructure, this three-phase molded case circuit breaker delivers robust overcurrent protection for commercial facilities. The unit-mount configuration integrates seamlessly into vintage Westinghouse FDP, CDP, and Pow-R-Line panelboards. Equipped with non-interchangeable fixed thermal and magnetic trip elements, it handles up to 10kA fault currents at 240VAC. Facility managers often utilize this exact frame before transitioning to the modern EHD3225 replacement.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CA3225-R |
| Series | CA |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Westinghouse CDP, FDP, Pow-R-Line Panelboards |
| Wire Gauge | 3 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 3 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | UL 489, NEMA AB-1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip, Trip-Free Mechanism |
Product FAQs
6 answersAre Eaton, Cutler-Hammer, and Westinghouse CA3225 breakers the same?
Yes. The CA3225 breaker was originally manufactured by Westinghouse, and later produced under the Cutler-Hammer and Eaton brands. A CA3225 from any of these brands will share the exact same physical dimensions and electrical specifications.
What panelboards can I install the CA3225 in?
The CA3225 is compatible with legacy Westinghouse and Cutler-Hammer CDP, FDP, and older Pow-R-Line panelboards designed to accept C-frame molded case circuit breakers.
What does unit mount mean for the CA3225?
As a unit-mount breaker, the CA3225 features lugs on both the line and load sides for cable-in, cable-out connections. It is typically surface-mounted independently rather than bolting or plugging directly to a panelboard busbar.
Does this breaker support both aluminum and copper wire?
Yes, the factory lugs on the CA3225 are rated for both Aluminum (Al) and Copper (Cu) conductors ranging from 3 AWG up to 300 kcmil.
Can I adjust the trip settings on the CA3225?
No. This breaker features a fixed thermal and fixed magnetic trip unit. Neither the long-time overload nor the instantaneous short-circuit pickup levels can be adjusted.
Can I use the CA3225 in a system with 22,000 available fault amps?
No. The CA3225 has a maximum interrupting rating of 10kA at 240VAC. If your system requires a 22kAIC or 65kAIC rating, you must source a higher-rated C-frame or F-frame replacement.
