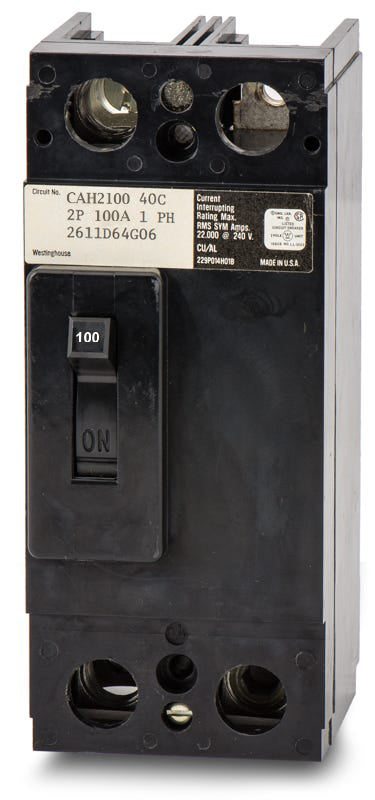

Eaton / Cutler-Hammer CAH2100 Molded Case Circuit Breaker
- 100A
- 2 Pole
- Unit Mount
Eaton / Cutler-Hammer
CAH2100
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
CAH2100
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer CAH2100 - 100A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer CAH2100 - 100A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CAH2100 |
| Series | CAH |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Metering Stacks, Group Metering |
| Wire Gauge | #6 AWG - 350 kcmil |
| Max Wire | 350 kcmil |
| Min Wire | #6 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | UL 489, CSA C22.2 No. 5, NEMA AB 1 |
| Approval | CSA, UL |
| Temp Rating | 40°C |
| Construction Features | High Interrupting Capacity, Feed-Thru Connection, Tenant Main |
Sold out
Quantity
Eaton / Cutler-Hammer CAH2100 - 100A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CAH2100-R |
| Series | CAH |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Metering Stacks, Group Metering |
| Wire Gauge | #6 AWG - 350 kcmil |
| Max Wire | 350 kcmil |
| Min Wire | #6 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | UL 489, CSA C22.2 No. 5, NEMA AB 1 |
| Approval | CSA, UL |
| Temp Rating | 40°C |
| Construction Features | High Interrupting Capacity, Feed-Thru Connection, Tenant Main |
Similar Items
175A 2 Pole Molded Case Circuit Breaker
200A 2 Pole Molded Case Circuit Breaker
225A 2 Pole Molded Case Circuit Breaker
Description
Designed for tenant main applications, the 100A CAH2100 delivers reliable long-time and instantaneous trip functions. This two-pole molded case circuit breaker handles residential and commercial loads with a 22kAIC rating at 240VAC. It mounts into Eaton Cutler-Hammer metering stacks, group metering setups, and compatible enclosures. Featuring a feed-thru connection and standard lug terminals, it serves as a robust solution for multi-tenant power distribution.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CAH2100 |
| Series | CAH |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Metering Stacks, Group Metering |
| Wire Gauge | #6 AWG - 350 kcmil |
| Max Wire | 350 kcmil |
| Min Wire | #6 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | UL 489, CSA C22.2 No. 5, NEMA AB 1 |
| Approval | CSA, UL |
| Temp Rating | 40°C |
| Construction Features | High Interrupting Capacity, Feed-Thru Connection, Tenant Main |
Product FAQs
6 answersWhat types of enclosures is the Eaton CAH2100 designed to fit?
This breaker is specifically designed for use in Eaton and Cutler-Hammer metering stacks and group metering applications, which are commonly used in multi-tenant residential or commercial buildings.
What wire sizes do the lugs on the CAH2100 accept?
The standard lug terminals on this breaker accommodate wire gauges ranging from #6 AWG up to 350 kcmil.
How is the CAH2100 installed in a metering setup?
It features a unit mount design with a feed-thru connection, allowing it to be bolted directly into compatible Eaton group metering enclosures.
What does the 22kAIC rating mean for this metering breaker?
The 22kAIC rating indicates that the breaker can safely interrupt up to 22,000 amps of fault current at 240V AC. This high interrupting capacity provides robust short circuit protection for tenant main applications.
How does the thermal magnetic trip unit protect the circuit?
The breaker uses fixed Long-Time and Instantaneous (LI) trip functions. The thermal component prevents overheating from prolonged mild overloads, while the magnetic component trips the breaker instantly during severe short circuits.
Is the CAH2100 suitable for single-phase power systems?
Yes, this 2-pole breaker is designed for 1-phase, 240V AC electrical systems commonly found in residential and light commercial metering centers.
