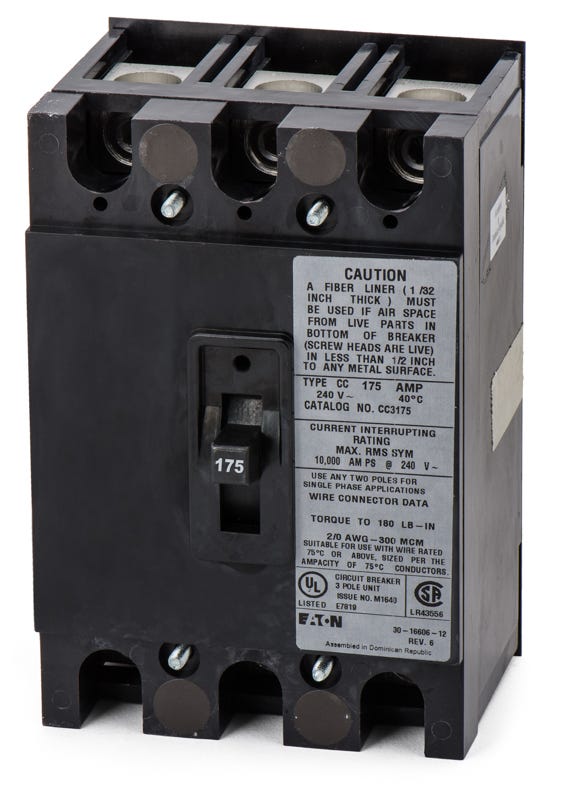

Eaton / Cutler-Hammer CC3175 Molded Case Circuit Breaker
- 175A
- 3 Pole
- Bolt-On
Eaton / Cutler-Hammer
CC3175
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
CC3175
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer CC3175 - 175A 3 Pole Molded Case Circuit Breaker
New
Quantity
Sold out
Quantity
Eaton / Cutler-Hammer CC3175 - 175A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CC3175 |
| Series | CC |
| Amperage | 175A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | 1MP, 1MM, 3MM Meter Stacks, Type ECC Unit Enclosures |
| Wire Gauge | 2/0 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 2/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | Tenant Main |
Sold out
Quantity
Eaton / Cutler-Hammer CC3175 - 175A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CC3175-R |
| Series | CC |
| Amperage | 175A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | 1MP, 1MM, 3MM Meter Stacks, Type ECC Unit Enclosures |
| Wire Gauge | 2/0 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 2/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | Tenant Main |
Similar Items
225A 3 Pole Molded Case Circuit Breaker
175A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial metering centers, the Eaton CC3175 is a 3-pole, 175A molded case circuit breaker. It delivers consistent thermal-magnetic protection for 240VAC distribution networks. This unit bolts into Eaton 1MP, 1MM, and 3MM meter stacks, alongside Type ECC unit enclosures. It is configured to serve as a tenant main breaker, offering a cross-reference to the updated CCV3175 series. Featuring a 10 kAIC interrupt capacity, this breaker includes standard line and load lugs.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CC3175 |
| Series | CC |
| Amperage | 175A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | 1MP, 1MM, 3MM Meter Stacks, Type ECC Unit Enclosures |
| Wire Gauge | 2/0 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 2/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | Tenant Main |
Product FAQs
6 answersWhat enclosures and meter stacks are compatible with the CC3175?
This breaker is engineered to serve as a tenant main and bolts directly into Eaton 1MP, 1MM, and 3MM meter stacks, as well as Type ECC unit enclosures.
What wire sizes and materials are approved for the lugs on this breaker?
The factory-installed line and load lugs accept both copper and aluminum (Cu/Al) conductors ranging from 2/0 AWG to 300 kcmil, accommodating standard 175-amp service feeds.
Is there an updated cross-reference for the CC3175?
Yes, the CC3175 serves as a direct cross-reference to the updated Eaton CCV3175 series of tenant main breakers.
What is the UPC for the Eaton CC3175?
The standard 12-digit UPC for this molded case circuit breaker is 782113266633.
How does the thermal-magnetic trip unit function on this breaker?
The breaker features fixed thermal and fixed magnetic trip elements, providing reliable long-time overload and instantaneous short-circuit protection (LI) for 240V AC distribution networks.
Does this breaker use a plug-on or bolt-on connection?
The CC3175 utilizes a bolt-on mounting style, ensuring a secure, hardwired connection within commercial metering centers and preventing accidental disconnection.
