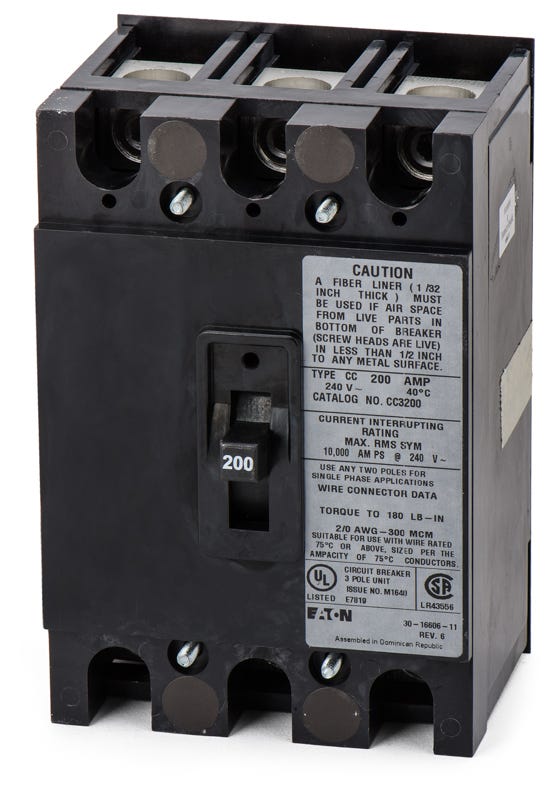

Eaton / Cutler-Hammer CC3200 Molded Case Circuit Breaker
- 200A
- 3 Pole
- Bolt-On
Eaton / Cutler-Hammer
CC3200
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
CC3200
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer CC3200 - 200A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
Eaton / Cutler-Hammer CC3200 - 200A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CC3200 |
| Series | CC |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | 1MP, 1MM, 3MM Meter Stacks, Type ECC Unit Enclosures |
| Wire Gauge | 2/0 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 2/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | Tenant Main |
Quantity
Eaton / Cutler-Hammer CC3200 - 200A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CC3200-R |
| Series | CC |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | 1MP, 1MM, 3MM Meter Stacks, Type ECC Unit Enclosures |
| Wire Gauge | 2/0 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 2/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | Tenant Main |
Similar Items
200A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerCHH3200H4X
200A 3 Pole Molded Case Circuit Breaker
Description
Built for commercial applications, the Eaton CC3200 is a 3-pole, 200A molded case circuit breaker designed as a reliable tenant main. It features thermal-magnetic trip technology for proven overload and short-circuit protection. This bolt-on MCCB mounts into 1MP, 1MM, and 3MM meter stacks, as well as Type ECC unit enclosures. It accepts 2/0 AWG to 300 kcmil wire via included lugs. Rated at 10kAIC at 240VAC, this breaker ensures robust performance and compliance with UL 489 standards.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CC3200-R |
| Series | CC |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | 1MP, 1MM, 3MM Meter Stacks, Type ECC Unit Enclosures |
| Wire Gauge | 2/0 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 2/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | Tenant Main |
Product FAQs
5 answersIn what types of electrical systems is this breaker typically used?
It is most commonly installed as a tenant main breaker in multi-family or commercial group metering systems. It functions as the primary emergency disconnect for individual electrical services that are fed from modular meter stacks.
Are the wire terminals factory installed on this unit?
Yes, this model includes factory installed line and load side lugs. They accept standard copper or aluminum conductors, providing a complete connection point without the need to source separate lug blocks.
How does this tenant main breaker secure into the metering panel?
It utilizes a base mount, bolt-on configuration. The breaker physically bolts directly to the enclosure busbar, which provides a rigid and highly reliable mechanical connection for high-amperage service feeds.
What does the LI designation mean for the trip unit on this device?
The LI code stands for Long-Time and Instantaneous trip functions. The long-time thermal component prevents cable damage from prolonged overloads, while the instantaneous magnetic element clears the circuit immediately during a severe short circuit.
Are Eaton and Cutler-Hammer versions of this breaker identical?
Yes. Because Eaton acquired the Cutler-Hammer brand, older components bearing the Cutler-Hammer logo are functionally identical to newer Eaton units and can be seamlessly interchanged in the field.
