Eaton / Cutler-HammerCHFN115GF
Free Shipping Over $99

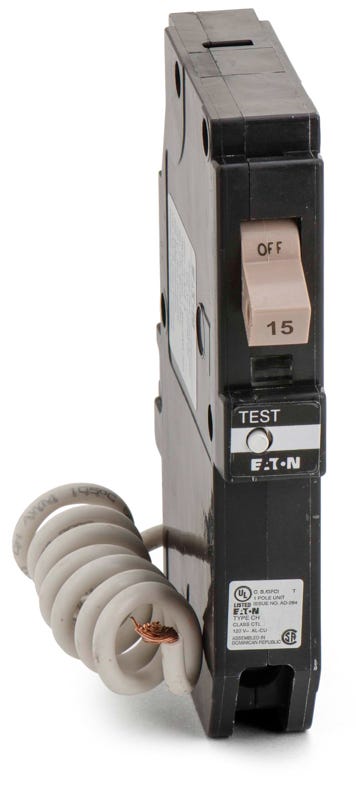

Eaton / Cutler-Hammer CH115GFI GFCI Miniature Circuit Breaker
- 15A
- 1 Pole
- Plug-On
Eaton / Cutler-Hammer
CH115GFI
GFCI Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
CH115GFI
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer CH115GFI - 15A GFCI Miniature Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer CH115GFI - 15A GFCI Miniature Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CH115GFI |
| Series | CH |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Type CH Load Centers |
| Wire Gauge | 14-6 AWG (Cu/Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | UL 489, UL 943, CSA C22.2 |
| Approval | UL, CSA |
| Temp Rating | 60C to 75C |
| Construction Features | HACR Rated, SWD Rated |
Sold out
Quantity
Eaton / Cutler-Hammer CH115GFI - 15A GFCI Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CH115GFI-R |
| Series | CH |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Type CH Load Centers |
| Wire Gauge | 14-6 AWG (Cu/Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | UL 489, UL 943, CSA C22.2 |
| Approval | UL, CSA |
| Temp Rating | 60C to 75C |
| Construction Features | HACR Rated, SWD Rated |
Similar Items
15A GFCI Miniature Circuit Breaker
Eaton / Cutler-HammerCHFGFT115
15A GFCI Miniature Circuit Breaker
Description
Built to detect hazardous leakage currents, this 15-amp ground fault interrupter ensures safety in areas prone to moisture. The breaker mounts into standard Eaton CH series panelboards and utilizes a traditional pigtail wire for the neutral connection. Although the manufacturer has transitioned to the newer CHFN115GF design, this exact replacement maintains full NEC compliance for 5mA personnel protection and features a standard 10kAIC interrupting capacity for residential use.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CH115GFI |
| Series | CH |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Type CH Load Centers |
| Wire Gauge | 14-6 AWG (Cu/Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | UL 489, UL 943, CSA C22.2 |
| Approval | UL, CSA |
| Temp Rating | 60C to 75C |
| Construction Features | HACR Rated, SWD Rated |
Product FAQs
5 answersWhat type of electrical panel is this breaker compatible with?
The CH115GFI is designed exclusively for Eaton and Cutler-Hammer Type CH load centers. It requires a 3/4-inch space per pole and will not fit in 1-inch Type BR panels.
What level of ground fault protection does the CH115GFI provide?
This breaker provides Class A ground fault protection, which trips when a ground fault of 5mA is detected. This meets requirements for personnel protection in locations like bathrooms, kitchens, and outdoor receptacles.
Does this breaker require a plug-on neutral panel?
No, the CH115GFI features a pigtail neutral connection. The coiled white pigtail wire connects directly to the neutral bus bar in the panel, making it compatible with standard Type CH load centers that do not have a plug-on neutral design.
How do I connect the load neutral to this breaker?
For the GFCI protection to function properly, the neutral wire from the branch circuit must be connected directly to the load neutral terminal on the breaker itself, not to the panel neutral bus bar.
Can I use this Eaton breaker to replace an older Cutler-Hammer CH115GFI?
Yes. Eaton acquired Cutler-Hammer and continues to manufacture the Type CH line. The Eaton CH115GFI is the direct replacement for the legacy Cutler-Hammer version with the exact same catalog number.
