Eaton / Cutler-Hammer CHFN115GF GFCI Miniature Circuit Breaker
- 15A
- 1 Pole
- Plug-On
Eaton / Cutler-Hammer
CHFN115GF
GFCI Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
CHFN115GF
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

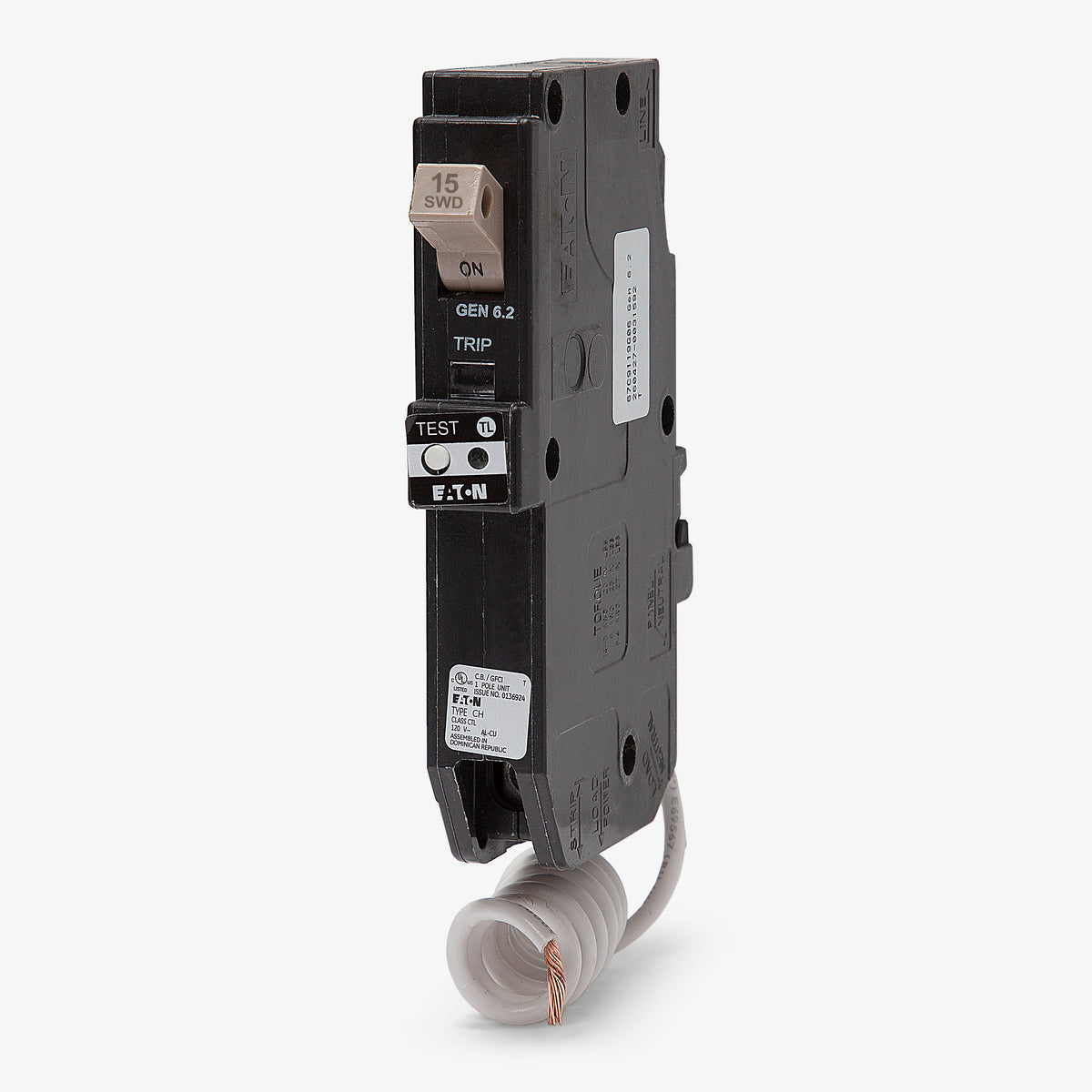

Eaton / Cutler-Hammer CHFN115GF - 15A GFCI Miniature Circuit Breaker
New
Quantity
Similar Items
15A GFCI Miniature Circuit Breaker
Eaton / Cutler-HammerCHFGFT115
15A GFCI Miniature Circuit Breaker
Description
Part of the CH family, the Eaton CHFN115GF provides essential ground-fault protection for wet locations per NEC code. This 1-pole, 15A breaker combines thermal-magnetic protection with self-testing diagnostics. Equipped with a pigtail neutral, it mounts into standard Eaton CH load centers and replaces discontinued CH115GF and CHFGF115 breakers. Rated 10kAIC at 120/240VAC, this SWD and HACR-rated unit handles HVAC loads and features a trip flag for clear visual fault indication.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CHFN115GF |
| Series | CH |
| Amperage | 15A |
| Poles | 1 |

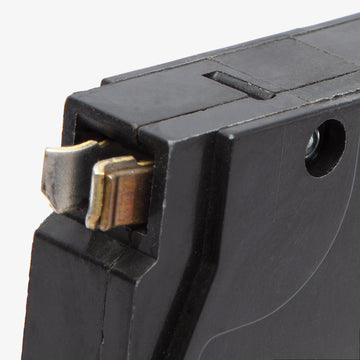

| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | CH |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton CH Load Centers |
| Wire Gauge | 14-6 AWG (Cu/Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | CSA C22.2 No. 5, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated, Visual Trip Indicator, Self-Test |
Product FAQs
5 answersWhat load centers are compatible with the CHFN115GF?
This breaker is designed exclusively for Eaton CH series load centers. It features a 3/4-inch width and is not interchangeable with 1-inch Eaton BR series panels.
Does the CHFN115GF replace older Eaton CH 15A GFCI breakers?
Yes, the CHFN115GF is the direct replacement for the discontinued CH115GF and CHFGF115 circuit breakers.
What level of ground fault protection does this breaker provide?
It provides Class A ground fault protection, which trips when a ground fault of 5mA is detected. This is designed for personnel protection in wet or damp locations as required by the NEC.
How is the neutral connection made for this breaker?

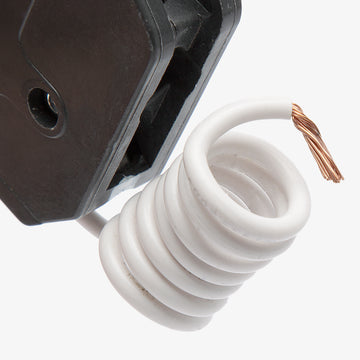

The CHFN115GF features a pigtail neutral connection. The coiled white pigtail wire must be routed and secured directly to the neutral bus bar of the load center to ensure proper GFCI operation.
Does this breaker feature a visual trip indicator?
Yes, this model includes a trip flag that provides clear visual indication when the breaker has tripped due to an overload, short circuit, or ground fault.
