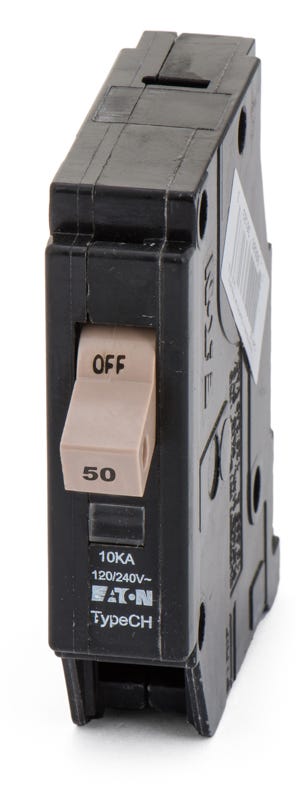

Eaton / Cutler-Hammer CH150 Miniature Circuit Breaker
- 50A
- 1 Pole
- Plug-On
Eaton / Cutler-Hammer
CH150
Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
CH150
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer CH150 - 50A 1 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer CH150 - 50A 1 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CH150 |
| Series | CH |
| Amperage | 50A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | CH |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton CH Load Centers |
| Wire Gauge | 14-2 AWG (Cu/Al) |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Standards | HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | HACR Rated |
Sold out
Quantity
Eaton / Cutler-Hammer CH150 - 50A 1 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CH150-R |
| Series | CH |
| Amperage | 50A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | CH |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton CH Load Centers |
| Wire Gauge | 14-2 AWG (Cu/Al) |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Standards | HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | HACR Rated |
Similar Items
30A 1 Pole Miniature Circuit Breaker
25A 1 Pole Miniature Circuit Breaker
15A 1 Pole Miniature Circuit Breaker
Description
Built for residential and commercial power distribution, the CH150 is a 50A miniature circuit breaker from Eaton. It provides reliable overload and short-circuit protection for branch circuits. Designed exclusively for Eaton Type CH load centers, this plug-on breaker occupies a single 3/4-inch space. It accepts 14-2 AWG wire and serves as a predecessor to the newer CHF150 model. Rated at 10 kAIC, this HACR-rated breaker utilizes standard thermal-magnetic trip technology.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CH150 |
| Series | CH |
| Amperage | 50A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | CH |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton CH Load Centers |
| Wire Gauge | 14-2 AWG (Cu/Al) |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Standards | HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | HACR Rated |
Product FAQs
7 answersWhat load centers are compatible with the CH150 breaker?
The CH150 is designed exclusively for use in Eaton and Cutler-Hammer CH series load centers. It is not compatible with BR series or other manufacturer panels.
How much panel space does the CH150 require?
This breaker requires a single 3/4-inch space in a CH series load center. CH breakers are narrower than standard 1-inch breakers.
Is the Eaton CH150 the same as a Cutler-Hammer CH150?
Yes. Eaton acquired Cutler-Hammer and continues to manufacture the CH series to the exact same specifications. An Eaton CH150 is a direct, code-compliant replacement for a legacy Cutler-Hammer CH150.
Can I install this CH series breaker in an Eaton BR load center?
No. Eaton CH breakers have a 3/4-inch width per pole and a different bus bar connection than BR breakers, which are 1-inch wide. They are not interchangeable.
What type of wire can be used with the CH150 box lugs?
The box lugs on this breaker accept both copper (Cu) and aluminum (Al) conductors ranging from 14 AWG to 2 AWG.
Does the CH150 provide GFCI or AFCI protection?
No. This is a standard thermal-magnetic circuit breaker providing overload and short-circuit protection. It does not include ground-fault or arc-fault circuitry.
What does the LI trip function indicate on the CH150?
The LI designation means the breaker includes Long-Time and Instantaneous trip functions. This provides standard thermal-magnetic protection against both gradual overloads and sudden short circuits.
