Eaton / Cutler-Hammer CH2150 Miniature Circuit Breaker
- 150A
- 2 Pole
- Plug-On
Eaton / Cutler-Hammer
CH2150
Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
CH2150
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer CH2150 - 150A 2 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer CH2150 - 150A 2 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CH2150 |
| Series | CH |
| Amperage | 150A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | CH |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Type CH Load Centers |
| Wire Gauge | 3/0 AWG (Cu/Al) |
| Max Wire | 3/0 AWG |
| Min Wire | 3/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Standards | UL 489 |
| Approval | UL |
| Temp Rating | 60C to 75C |
| Construction Features | Common Trip, HACR Rated |
Sold out
Quantity
Eaton / Cutler-Hammer CH2150 - 150A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CH2150-R |
| Series | CH |
| Amperage | 150A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | CH |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Type CH Load Centers |
| Wire Gauge | 3/0 AWG (Cu/Al) |
| Max Wire | 3/0 AWG |
| Min Wire | 3/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Standards | UL 489 |
| Approval | UL |
| Temp Rating | 60C to 75C |
| Construction Features | Common Trip, HACR Rated |
Similar Items
125A 2 Pole Miniature Circuit Breaker
110A 2 Pole Miniature Circuit Breaker
100A 2 Pole Miniature Circuit Breaker
Description

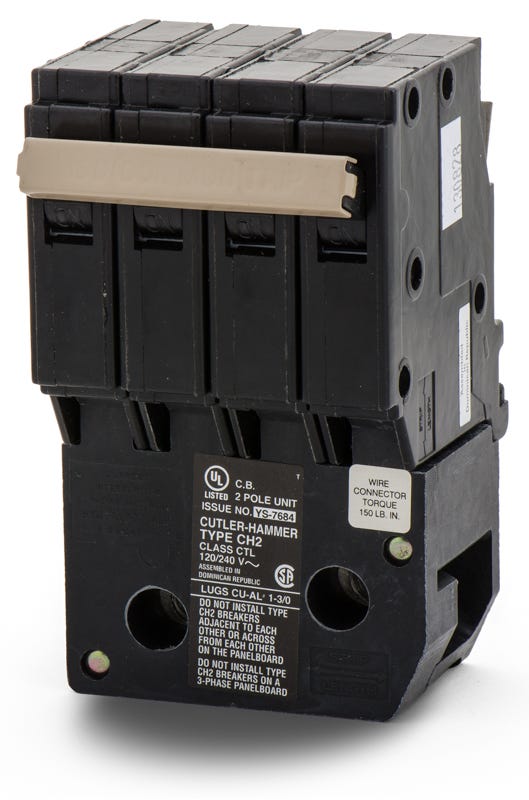

Built for high-demand residential and commercial applications, the Eaton CH2150 delivers reliable 150A thermal-magnetic protection. This 2-pole breaker features a common trip mechanism and is HACR rated for use with HVAC equipment. It installs into Eaton Type CH load centers and requires four 3/4-inch pole spaces due to its high amperage capacity. The unit accepts 3/0 AWG copper or aluminum wire via box lug terminals. Rated at 10 kAIC for 120/240V systems, it meets UL 489 safety standards.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CH2150 |
| Series | CH |
| Amperage | 150A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | CH |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Type CH Load Centers |
| Wire Gauge | 3/0 AWG (Cu/Al) |
| Max Wire | 3/0 AWG |
| Min Wire | 3/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Standards | UL 489 |
| Approval | UL |
| Temp Rating | 60C to 75C |
| Construction Features | Common Trip, HACR Rated |
Product FAQs
4 answersHow many panel spaces does the CH2150 require?
Despite being a 2-pole breaker, the high-amperage CH2150 requires four 3/4-inch spaces in the panel. The unit totals 3 inches in width and mounts side by side on the bus bar rather than spanning across it.
Is this breaker compatible with three-phase Type CH panels?
No. The CH2150 is designed exclusively for single-phase Eaton and Cutler-Hammer Type CH load centers. It is not suitable or certified for use in three-phase panelboards.
Is the CH2150 breaker HACR rated?
Yes, it carries an HACR rating, meaning it is tested and approved to safely handle the unique inrush currents of heating, air conditioning, and refrigeration equipment.
Will a new Eaton CH2150 replace my old Cutler-Hammer CH2150?
Yes. Eaton acquired Cutler-Hammer and continues to manufacture the Type CH line to the exact same physical and electrical specifications. A modern Eaton CH2150 is a direct drop-in replacement for legacy Cutler-Hammer versions.
