Eaton / Cutler-Hammer CH2125ST Miniature Circuit Breaker
- 125A
- 2 Pole
- Plug-On
Eaton / Cutler-Hammer
CH2125ST
Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
CH2125ST
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

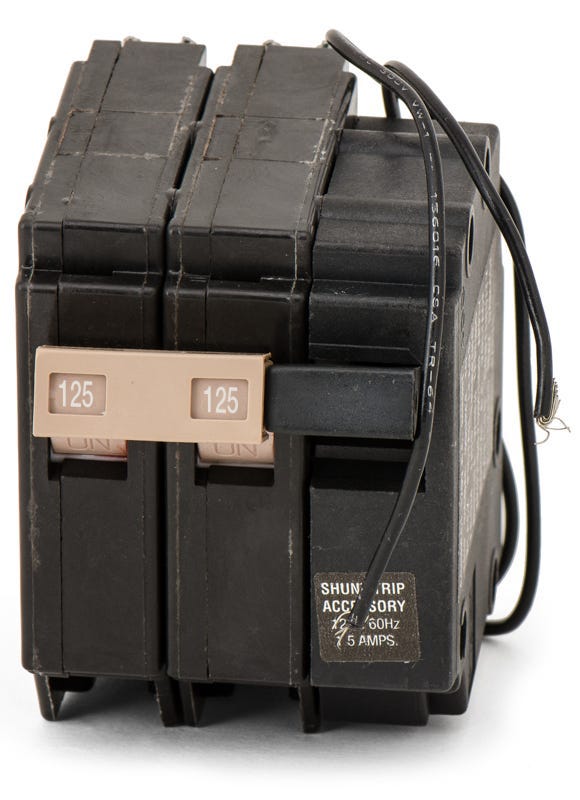

Eaton / Cutler-Hammer CH2125ST - 125A 2 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
90A 2 Pole Miniature Circuit Breaker
80A 2 Pole Miniature Circuit Breaker
70A 2 Pole Miniature Circuit Breaker
Description
Integrating remote shutdown capabilities, the Eaton CH2125ST is a 125A, two-pole miniature circuit breaker. It is engineered for commercial environments requiring automated circuit interruption. This unit mounts into standard Eaton Type CH load centers. Delivering a 10 kAIC interrupting rating at 120/240V, it utilizes thermal-magnetic technology for standard overcurrent protection. The breaker features a factory-installed shunt trip and is HACR rated for HVAC systems.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CH2125ST |
| Series | CH |
| Amperage | 125A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | CH |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton CH Load Centers |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Shunt Trip |
| Standards | UL 489, CSA C22.2 No. 5, HACR |
| Approval | UL, CSA |
| Temp Rating | 60C to 75C |
| Construction Features | Common Trip, HACR Rated |
Product FAQs
7 answersCan I install the CH2125ST in an older Cutler-Hammer panel?
Yes. Eaton acquired Cutler-Hammer, and their CH series product lines are identical. This breaker is fully compatible with legacy Cutler-Hammer CH load centers.
What does the ST suffix indicate on the CH2125ST?
The ST designates a factory-installed shunt trip. This allows the breaker to be tripped remotely when a voltage signal is applied to the shunt trip coil, which is commonly used for emergency stops or automated safety shutdowns.
Are the terminals on this breaker rated for aluminum wiring?
Yes, the box lugs are dual-rated for both copper and aluminum conductors. They accept wire sizes ranging from 10 AWG up to 1/0 AWG.
Can this 125A breaker be used as a main breaker?
Yes, depending on the load center design, a 125A 2-pole CH breaker can serve as a main breaker or as a high-capacity branch breaker for subpanels and large equipment.
What type of protection does the thermal magnetic trip provide?
It provides two layers of protection. The thermal element trips on prolonged, mild overloads to prevent overheating, while the magnetic element trips instantaneously during severe short circuits.
Will this breaker fit in an Eaton BR series load center?
No. The CH2125ST is a 3/4-inch format breaker designed exclusively for Eaton CH load centers. It is not interchangeable with the 1-inch BR series or panels from other manufacturers.
Does this 2-pole breaker feature an internal common trip?
Yes, it features an internal common trip mechanism. If an overcurrent or short circuit occurs on either leg, both poles will trip simultaneously to completely disconnect power to the circuit.
