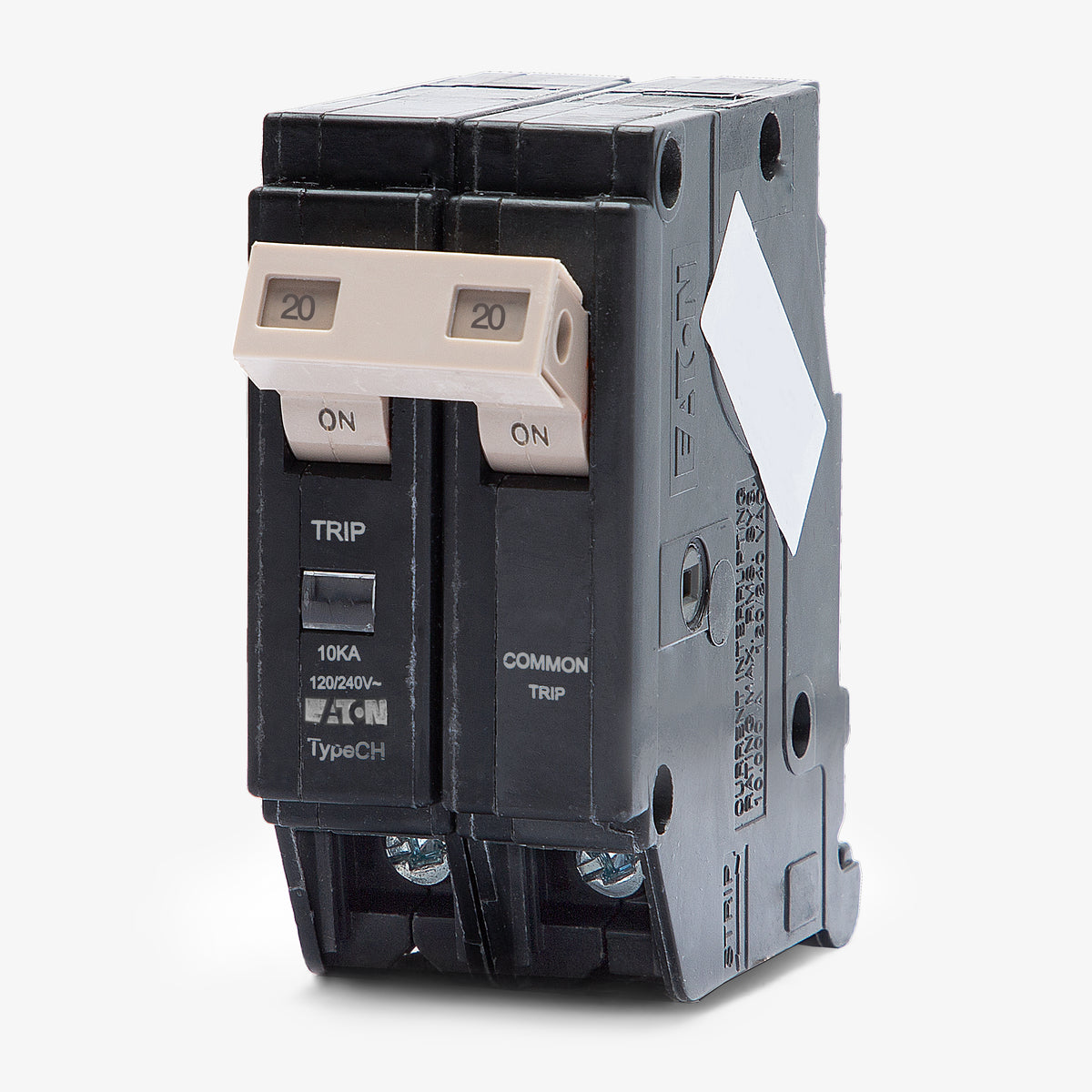

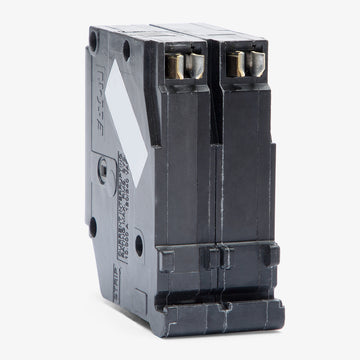

Eaton / Cutler-Hammer CH220 Miniature Circuit Breaker
- 20A
- 2 Pole
- Plug-On
Eaton / Cutler-Hammer
CH220
Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
CH220
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer CH220 - 20A 2 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer CH220 - 20A 2 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CH220 |
| Series | CH |
| Amperage | 20A |
| Poles | 2 |

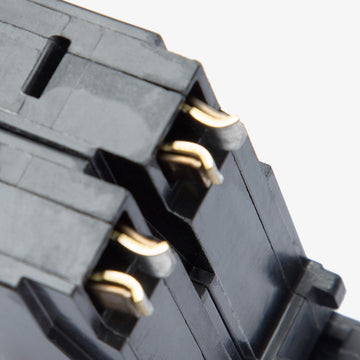

| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | CH |
|---|---|

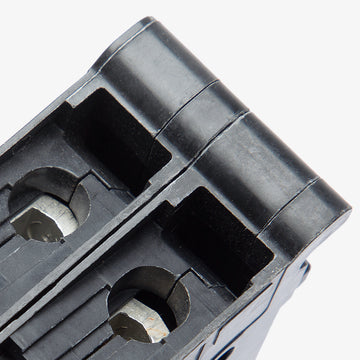

| Terminal Type | Box Lugs |
| For Use With | Type CH Load Centers |
| Wire Gauge | (1) 14-8 AWG (Cu/Al), (2) 14-10 AWG (Cu/Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment |
|---|---|
| Standards | HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | Common Trip, HACR Rated |
Sold out
Quantity
Eaton / Cutler-Hammer CH220 - 20A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CH220-R |
| Series | CH |
| Amperage | 20A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | CH |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Type CH Load Centers |
| Wire Gauge | (1) 14-8 AWG (Cu/Al), (2) 14-10 AWG (Cu/Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment |
|---|---|
| Standards | HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | Common Trip, HACR Rated |
Similar Items
15A 2 Pole Miniature Circuit Breaker
30A 2 Pole Miniature Circuit Breaker
35A 2 Pole Miniature Circuit Breaker
Description
A staple for residential wiring, the Eaton CH220 provides 20A of thermal-magnetic protection for 240V branch circuits. This two-pole miniature circuit breaker is commonly deployed for dedicated loads like baseboard heaters or small air conditioning units. It mounts into 3/4-inch spaces within Eaton and Cutler-Hammer Type CH load centers. This model crosses over to the CHF220 replacement, which adds a visual trip indicator flag. Rated at 10kAIC, it includes a common trip mechanism.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CH220 |
| Series | CH |
| Amperage | 20A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | CH |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Type CH Load Centers |
| Wire Gauge | (1) 14-8 AWG (Cu/Al), (2) 14-10 AWG (Cu/Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment |
|---|---|
| Standards | HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | Common Trip, HACR Rated |
Product FAQs
7 answersCan I install the Eaton CH220 in a Type BR load center?
No. The CH220 is designed exclusively for Eaton and Cutler-Hammer Type CH load centers. Type CH breakers are 3/4 inches wide per pole, whereas Type BR breakers are 1 inch wide per pole and use a different busbar connection.
Will the CH220 fit in Square D QO or Homeline panels?
No. The CH220 is only UL listed for use in Eaton or Cutler-Hammer Type CH load centers. Using it in panels from other manufacturers violates UL listings and NEC requirements.
How much panel space does the CH220 require?
As a 2-pole Type CH breaker, it requires two 3/4-inch spaces, taking up a total of 1.5 inches on the busbar.
Can I terminate two wires under the lugs of the CH220?
Yes. The box lugs on the CH220 are rated to accept either a single 14-8 AWG wire or two 14-10 AWG wires, supporting both copper and aluminum conductors.
What is the difference between the CH220 and the CHF220?
The CHF220 is the newer, direct replacement for the CH220. The primary difference is that the CHF220 includes a mechanical trip flag that provides a visual indication when the breaker has tripped. Both are fully interchangeable in Type CH panels.
Does the CH220 provide ground fault or arc fault protection?
No. The CH220 is a standard thermal-magnetic circuit breaker providing overload and short-circuit protection. It does not include GFCI or AFCI circuitry.
Is the CH220 suitable for HVAC equipment?
Yes. The CH220 is HACR rated, making it approved for use with heating, air conditioning, and refrigeration equipment that requires a 20A, 2-pole breaker.
