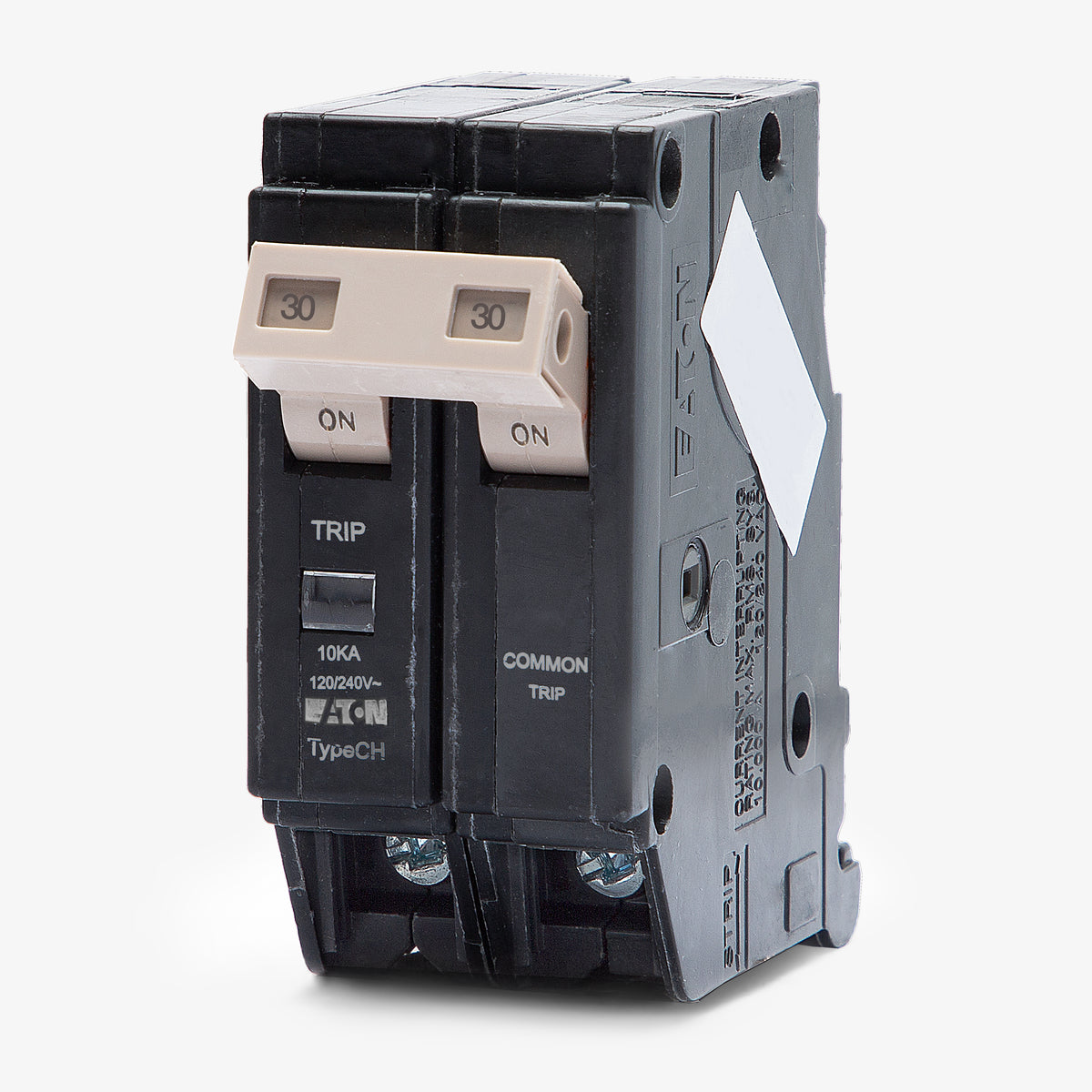

Eaton / Cutler-Hammer CH230 Miniature Circuit Breaker
- 30A
- 2 Pole
- Plug-On
Eaton / Cutler-Hammer
CH230
Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
CH230
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer CH230 - 30A 2 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer CH230 - 30A 2 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CH230 |
| Series | CH |
| Amperage | 30A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Eaton CH Load Centers |
| Wire Gauge | 14-6 AWG (Cu/Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch |
|---|---|
| Standards | CSA C22.2 No. 5, UL 489, HACR |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | Common Trip, HACR Rated |
Sold out
Quantity
Eaton / Cutler-Hammer CH230 - 30A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CH230-R |
| Series | CH |
| Amperage | 30A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Eaton CH Load Centers |
| Wire Gauge | 14-6 AWG (Cu/Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch |
|---|---|
| Standards | CSA C22.2 No. 5, UL 489, HACR |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | Common Trip, HACR Rated |
Similar Items
25A 2 Pole Miniature Circuit Breaker
40A 2 Pole Miniature Circuit Breaker
20A 2 Pole Miniature Circuit Breaker
Description

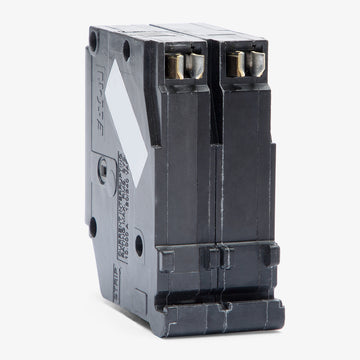

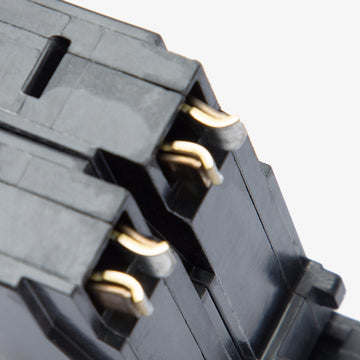

Designed for 120/240V systems, the Eaton CH230 is a 30-amp, two-pole miniature circuit breaker delivering essential thermal-magnetic protection. It is built to handle everyday residential and commercial electrical demands safely. This unit installs into Eaton CH load centers using a standard 3/4-inch per pole plug-on connection. It serves as an exact match for existing CH230 installations. Featuring a 10kAIC rating, the breaker is HACR rated, ensuring compatibility with dedicated HVAC equipment.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CH230 |
| Series | CH |
| Amperage | 30A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Eaton CH Load Centers |
| Wire Gauge | 14-6 AWG (Cu/Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch |
|---|---|
| Standards | CSA C22.2 No. 5, UL 489, HACR |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | Common Trip, HACR Rated |
Product FAQs
6 answersWhat load centers are compatible with the CH230 circuit breaker?
The CH230 is designed exclusively for use in Eaton and Cutler-Hammer Type CH load centers. It will not fit in Type BR or other manufacturer panels.
How much panel space does the CH230 require?
As a 2-pole Type CH breaker, it requires two 3/4-inch spaces, taking up a total of 1.5 inches on the bus bar.
Is the Eaton CH230 HACR rated?
Yes, this breaker is HACR rated, making it suitable for use with dedicated heating, ventilation, and air conditioning equipment that requires this rating.
Can the CH230 be used as a back-fed main breaker?
Yes, but when used in a back-feed application, the National Electrical Code requires it to be secured to the load center using an approved hold-down retainer kit, such as the Eaton CH125RB.
Is there a difference between the Cutler-Hammer CH230 and the Eaton CH230?
No. Eaton acquired Cutler-Hammer and continues to manufacture the Type CH line under the Eaton brand. The CH230 is the exact same breaker regardless of which brand name is printed on the label.
What size wire can be used with the CH230 breaker?

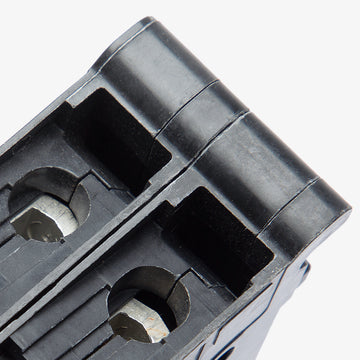

The box lugs on the CH230 accept 14 AWG to 6 AWG copper or aluminum wiring. Always verify the specific torque requirements printed on the side of the breaker before terminating the conductors.
