Eaton / Cutler-Hammer CH360 Miniature Circuit Breaker
- 60A
- 3 Pole
- Plug-On
Eaton / Cutler-Hammer
CH360
Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
CH360
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer CH360 - 60A 3 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer CH360 - 60A 3 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CH360 |
| Series | CH |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Plug-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Type CH Load Centers |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, UL 489, HACR |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | Common Trip, HACR Rated |
Sold out
Quantity
Eaton / Cutler-Hammer CH360 - 60A 3 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CH360-R |
| Series | CH |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Plug-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Type CH Load Centers |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, UL 489, HACR |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | Common Trip, HACR Rated |
Similar Items
50A 3 Pole Miniature Circuit Breaker
45A 3 Pole Miniature Circuit Breaker
80A 3 Pole Miniature Circuit Breaker
Description

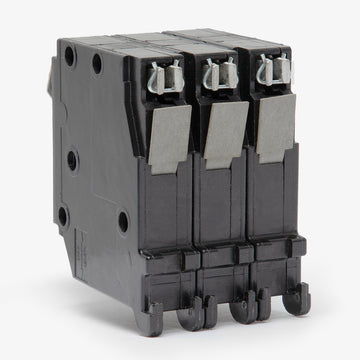

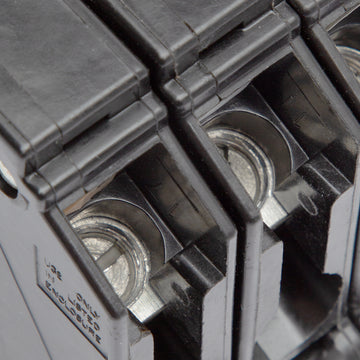

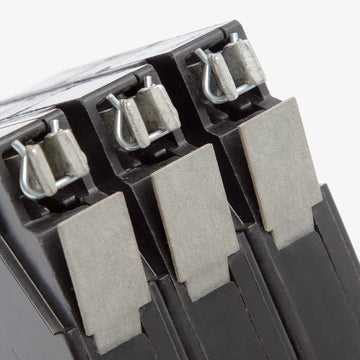

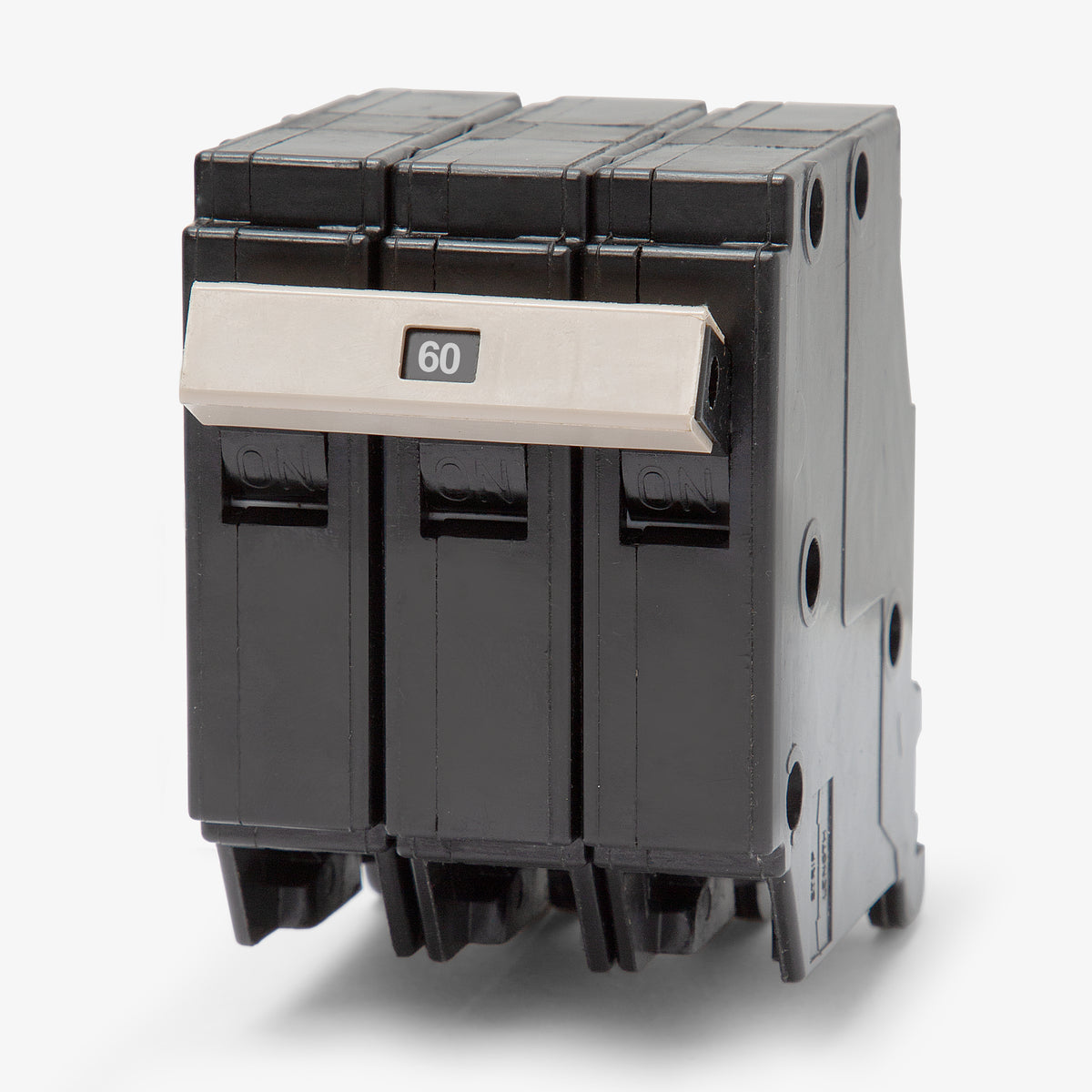

Providing reliable power distribution, the Eaton CH360 is a 60-amp, three-pole miniature circuit breaker. Rated for 240V applications, it utilizes fixed thermal and magnetic trip elements to defend against overcurrents with a 10 kAIC rating. Designed for Type CH load centers, it features a convenient plug-on mounting configuration. The breaker requires three 3/4-inch spaces and accepts 10-1/0 AWG wire. Fully HACR rated for heating and cooling applications, it includes a common trip design.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CH360 |
| Series | CH |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Plug-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Type CH Load Centers |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, UL 489, HACR |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | Common Trip, HACR Rated |
Product FAQs
5 answersWill this breaker fit in a Type BR load center?
No. The CH360 is a Type CH breaker designed exclusively for Type CH load centers. It requires 3/4-inch spaces and will not fit Type BR panels, which require 1-inch spaces.
How much panel space is required to install the CH360?
This three-pole breaker requires three standard 3/4-inch spaces, taking up a total of 2.25 inches on the bus bar.
Is this circuit breaker HACR rated for HVAC equipment?
Yes. The Eaton CH360 is fully HACR rated, making it suitable and approved for heating, air conditioning, and refrigeration equipment loads.
Does this breaker feature an internal common trip?
Yes. The common trip mechanism ensures that if an overcurrent or short circuit occurs on any single pole, all three poles will trip simultaneously. This protects three-phase loads from single-phasing.
Can the Eaton CH360 replace an older Cutler-Hammer or Westinghouse CH360 breaker?
Yes. Eaton acquired the Cutler-Hammer and Westinghouse distribution equipment lines. This breaker is the direct manufacturer replacement for older Cutler-Hammer and Westinghouse CH360 units.
