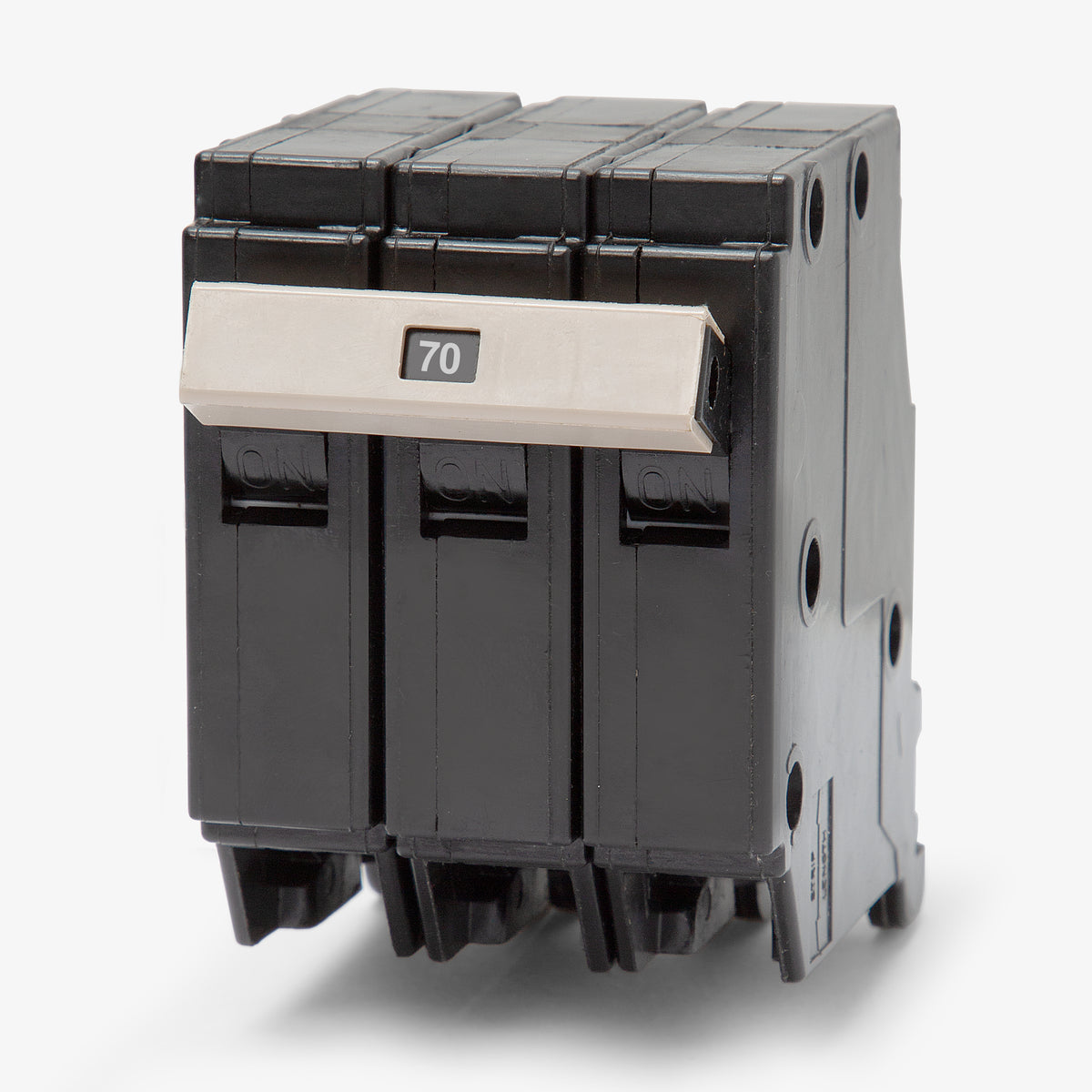

Eaton / Cutler-Hammer CH370 Miniature Circuit Breaker
- 70A
- 3 Pole
- Plug-On
Eaton / Cutler-Hammer
CH370
Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
CH370
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer CH370 - 70A 3 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer CH370 - 70A 3 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CH370 |
| Series | CH |
| Amperage | 70A |
| Poles | 3 |
| Mounting Style | Plug-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Eaton CH Load Centers |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment |
|---|---|
| Standards | CSA C22.2, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip |
Sold out
Quantity
Eaton / Cutler-Hammer CH370 - 70A 3 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CH370-R |
| Series | CH |
| Amperage | 70A |
| Poles | 3 |
| Mounting Style | Plug-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Eaton CH Load Centers |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment |
|---|---|
| Standards | CSA C22.2, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip |
Similar Items
60A 3 Pole Miniature Circuit Breaker
90A 3 Pole Miniature Circuit Breaker
90A 3 Pole Miniature Circuit Breaker
Description
Providing essential overcurrent protection, the CH370 is a 70-amp, three-pole miniature circuit breaker from Eaton. It is designed for three-phase commercial and industrial electrical systems requiring reliable thermal-magnetic trip functions. This plug-on unit installs into standard 3/4-inch spaces within Eaton CH load centers. It features box lug terminals that accept 10-1/0 AWG wire, ensuring a secure connection. With a 10kAIC interrupt rating, it safely clears standard fault currents.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CH370 |
| Series | CH |
| Amperage | 70A |
| Poles | 3 |
| Mounting Style | Plug-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Eaton CH Load Centers |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment |
|---|---|
| Standards | CSA C22.2, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip |
Product FAQs
5 answersWill the CH370 fit in an Eaton BR or Square D load center?
No. The CH370 is designed exclusively for Eaton CH series load centers. It is not interchangeable with Eaton BR, Square D, or other manufacturer panels.
How much panel space does the CH370 require?
This 3-pole breaker requires three 3/4-inch spaces, taking up a total of 2.25 inches of width on the bus bar in a CH load center.
Can I use the Eaton CH370 to replace an older Cutler-Hammer CH370?
Yes. Eaton acquired Cutler-Hammer, and the modern Eaton CH370 is the direct replacement for older Cutler-Hammer breakers with the exact same catalog number.
Is the CH370 suitable for use with heating, air conditioning, and refrigeration equipment?
Yes. This breaker is HACR rated, making it approved for use with compatible HVAC and refrigeration motor loads.
Can this breaker be used in a single-phase residential panel?
No. As a 3-pole breaker, the CH370 is designed for use in 3-phase electrical systems. It will not properly install or function in a standard single-phase load center.
