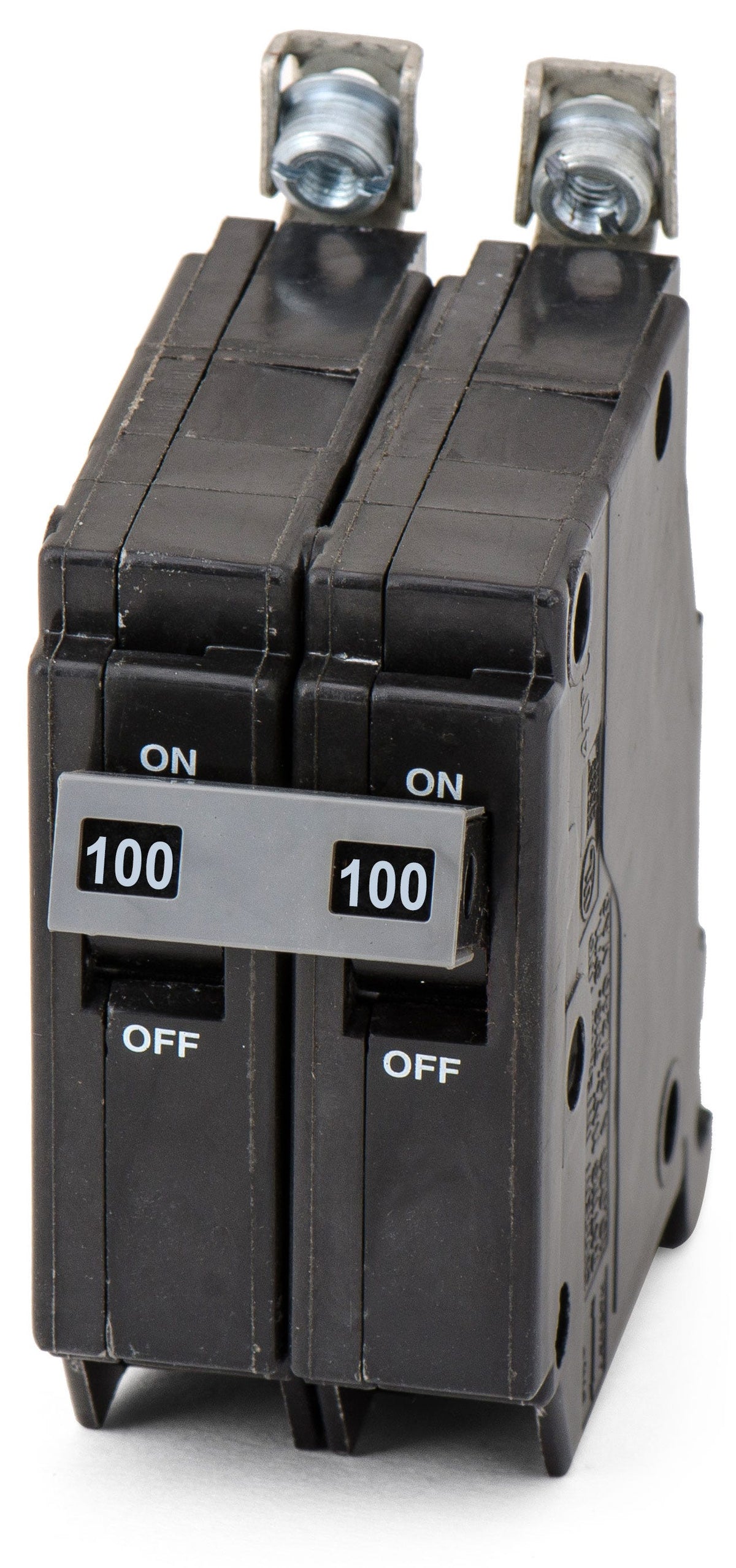

Eaton / Cutler-Hammer CHB2100 Miniature Circuit Breaker
- 100A
- 2 Pole
- Bolt-On
Eaton / Cutler-Hammer
CHB2100
Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
CHB2100
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer CHB2100 - 100A 2 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
90A 2 Pole Miniature Circuit Breaker
80A 2 Pole Miniature Circuit Breaker
70A 2 Pole Miniature Circuit Breaker
Description
Part of Eaton's CHB series, this two-pole 100-amp miniature circuit breaker provides robust thermal-magnetic protection for commercial facilities. The bolt-on mounting style ensures a secure connection in demanding environments. Engineered for seamless integration into Cutler-Hammer Type PB and PH panelboards, the box lug terminals accept 4-1/0 AWG wiring to accommodate the 100A rating. Featuring a 10kAIC capacity at 120/240VAC, the handle trips to a center position to quickly identify faults.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | CHB |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | CHB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Cutler-Hammer Type PB Panelboards, Type PH Panelboards |
| Wire Gauge | 4-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, Federal Specification W-P-131a, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Common Trip |
Product FAQs
8 answersWhat panelboards are compatible with the CHB2100 breaker?
The CHB2100 is designed for use in Cutler-Hammer Type PB and Type PH panelboards, as well as compatible meter panels and multi-metering modules.
Can I use a CHB breaker in place of a standard CH breaker?
No. CHB breakers like the CHB2100 feature a bolt-on connection, whereas standard CH breakers use a plug-on mounting style. They are not interchangeable.
What wire sizes and materials are accepted by the CHB2100 terminals?
The box lugs on this breaker accept 4 AWG to 1/0 AWG copper or aluminum (Cu/Al) wire.
Is the CHB2100 HACR rated for HVAC applications?
Yes, this breaker is HACR rated, making it suitable for use with heating, air conditioning, and refrigeration equipment.
What is the proper way to reset a tripped CHB2100 breaker?
When tripped, the handle moves to a middle position between ON and OFF. To restore power, you must first push the handle firmly to the full OFF position before switching it back to ON.
Are BAB and CHB breakers interchangeable?
No. While both are bolt-on breakers, BAB (Quicklag) and CHB breakers are designed for different panelboard types and have different physical dimensions. You must use the specific frame type listed on your panelboard label.
Do I need to de-energize the panel before installing the CHB2100?
Yes. Because the CHB2100 is a bolt-on breaker, it requires a physical bolted connection to the bus bar. The panel must be completely de-energized before installation to prevent arc flash and electrical shock hazards.
Can the CHB2100 be surface mounted or DIN rail mounted?
Yes, when combined with the appropriate mounting base, CHB breakers can be used for surface mount and DIN rail mount cable-in/cable-out applications.
