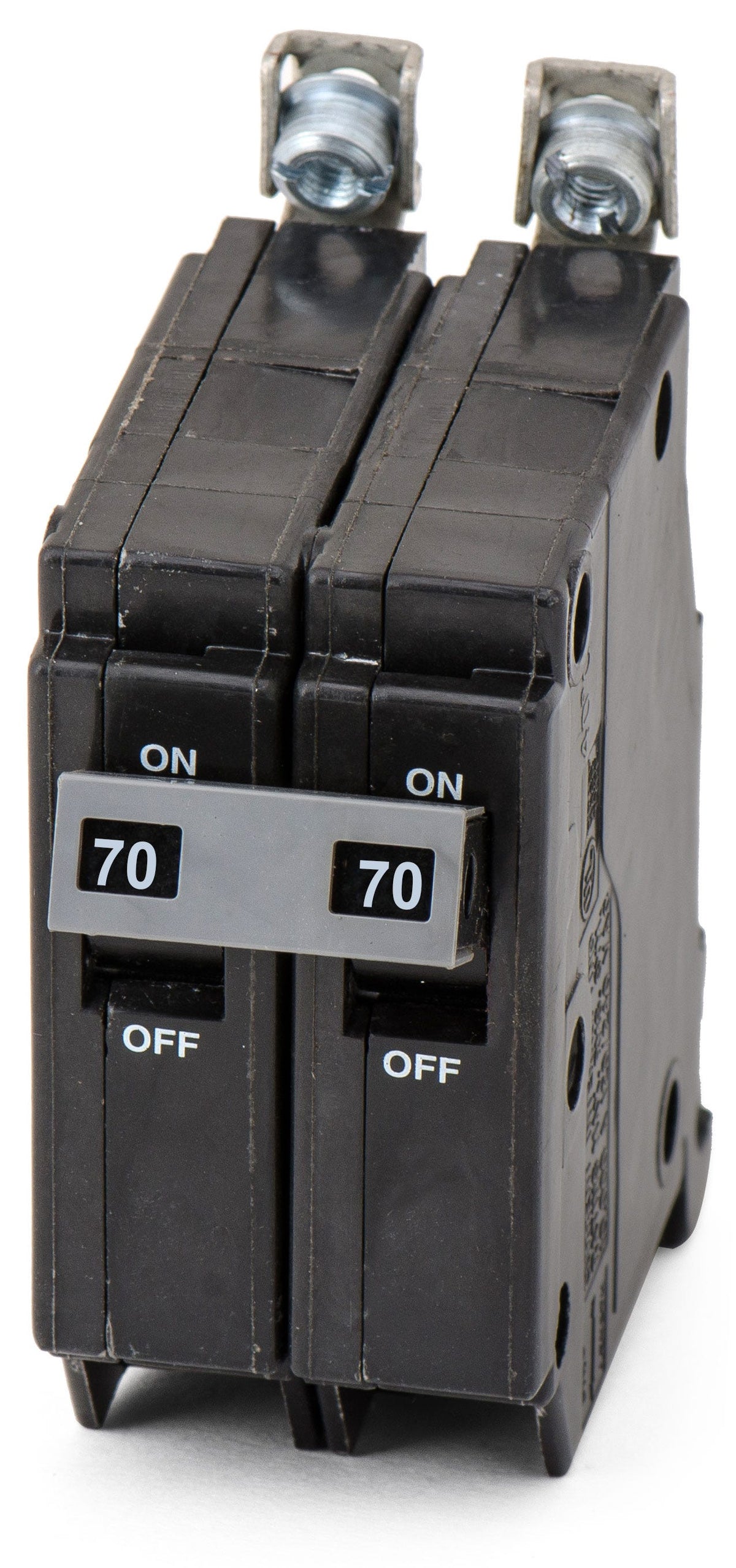

Eaton / Cutler-Hammer CHB270 Miniature Circuit Breaker
- 70A
- 2 Pole
- Bolt-On
Eaton / Cutler-Hammer
CHB270
Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
CHB270
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer CHB270 - 70A 2 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer CHB270 - 70A 2 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CHB270 |
| Series | CHB |
| Amperage | 70A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | CHB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Type PB Panelboards, Type PH Panelboards, Meter Panels, Multi-Metering Modules |
| Wire Gauge | 8-2 AWG (Cu/Al) |
| Max Wire | 2 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, Federal Specification W-C-375b, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | Common Trip |
Sold out
Quantity
Eaton / Cutler-Hammer CHB270 - 70A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CHB270-R |
| Series | CHB |
| Amperage | 70A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | CHB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Type PB Panelboards, Type PH Panelboards, Meter Panels, Multi-Metering Modules |
| Wire Gauge | 8-2 AWG (Cu/Al) |
| Max Wire | 2 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, Federal Specification W-C-375b, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | Common Trip |
Similar Items
60A 2 Pole Miniature Circuit Breaker
90A 2 Pole Miniature Circuit Breaker
50A 2 Pole Miniature Circuit Breaker
Description
Part of the CH family, this 70A, 2-pole miniature circuit breaker delivers reliable thermal-magnetic protection for 120/240V systems in commercial applications. The bolt-on configuration ensures a tight connection to the busbar. It is engineered to fit into Eaton Type PB and PH panelboards or multi-metering modules. With a 10kAIC rating, it safely interrupts short circuits and is HACR rated for use with heating and cooling equipment.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CHB270 |
| Series | CHB |
| Amperage | 70A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | CHB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Type PB Panelboards, Type PH Panelboards, Meter Panels, Multi-Metering Modules |
| Wire Gauge | 8-2 AWG (Cu/Al) |
| Max Wire | 2 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, Federal Specification W-C-375b, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | Common Trip |
Product FAQs
5 answersWhat panelboards are compatible with the CHB270?
The CHB270 is a bolt-on breaker designed specifically for Eaton and Cutler-Hammer Type PB and PH panelboards. It is also compatible with select meter panels and multi-metering modules.
What is the difference between the Eaton CH270 and the CHB270?
While both are 70A, 2-pole breakers in the CH family, the CH270 is a plug-on breaker. The CHB270 features a bolt-on connection type for commercial panelboards. You must verify your panel requires bolt-on connections before installing.
Can I use aluminum wire with the CHB270 circuit breaker?
Yes, the box lugs are rated for both copper and aluminum wire (Cu/Al) from 8 AWG to 2 AWG. When terminating aluminum conductors, it is standard practice to apply an approved antioxidant compound to the stripped wire.
Is the CHB270 suitable for heating and cooling equipment?
Yes, this breaker is HACR rated. It can be safely installed to protect heating, air conditioning, and refrigeration circuits that require an HACR-designated overcurrent device.
What does the LI trip function code mean on this breaker?
The LI designation indicates a thermal-magnetic trip mechanism. The Long-Time (L) function provides delayed thermal protection against sustained overloads, while the Instantaneous (I) function provides immediate magnetic tripping during a short circuit.
