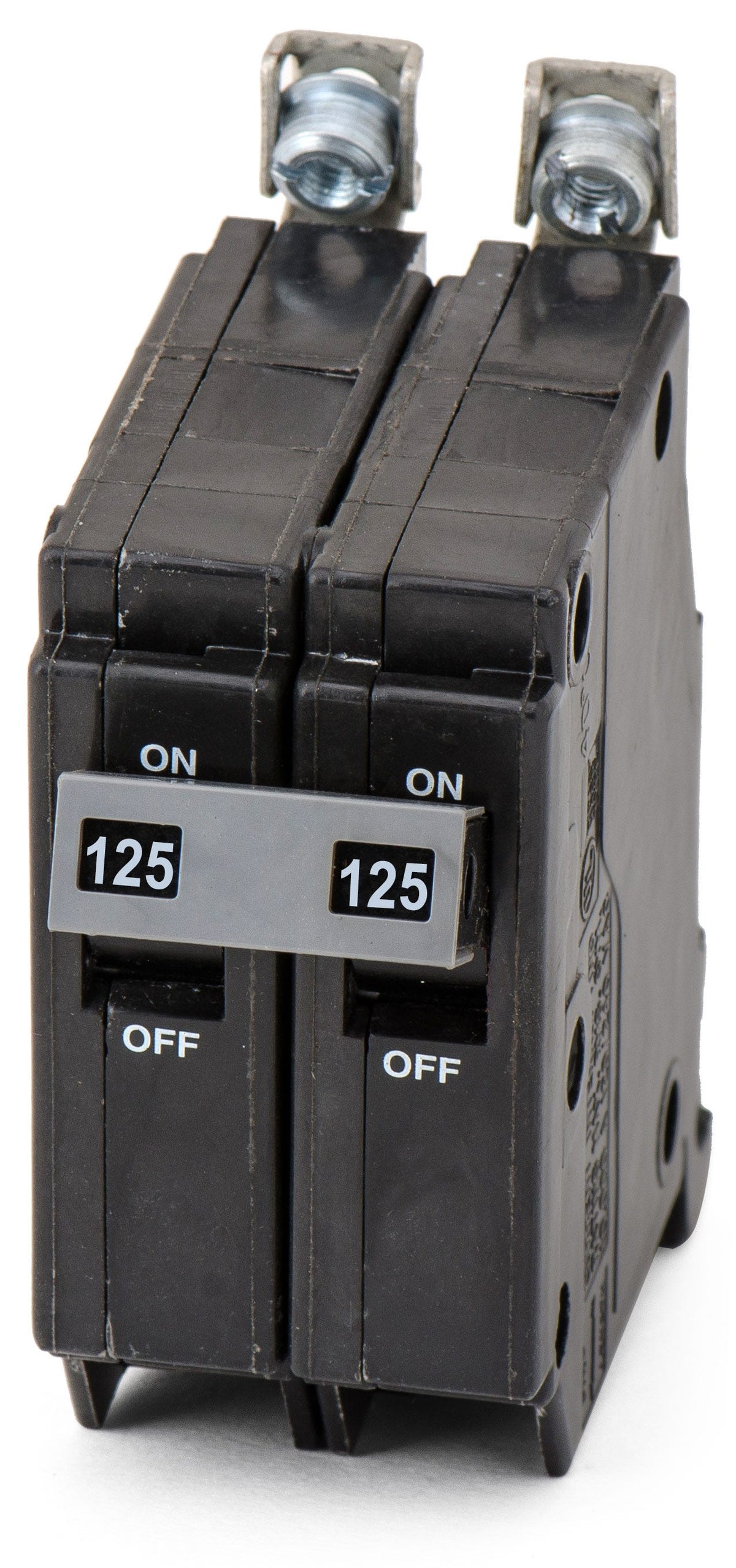

Eaton / Cutler-Hammer CHB2125 Miniature Circuit Breaker
- 125A
- 2 Pole
- Bolt-On
Eaton / Cutler-Hammer
CHB2125
Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
CHB2125
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer CHB2125 - 125A 2 Pole Miniature Circuit Breaker
New
Quantity
Sold out
Quantity
Eaton / Cutler-Hammer CHB2125 - 125A 2 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CHB2125 |
| Series | CHB |
| Amperage | 125A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | CHB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Cutler-Hammer Type PB Panelboards, Type PH Panelboards, Meter Panels |
| Wire Gauge | 4-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Handle Lock |
|---|---|
| Standards | CSA C22.2 No. 5, Federal Specification W-P-131a, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip |
Sold out
Quantity
Eaton / Cutler-Hammer CHB2125 - 125A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CHB2125-R |
| Series | CHB |
| Amperage | 125A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | CHB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Cutler-Hammer Type PB Panelboards, Type PH Panelboards, Meter Panels |
| Wire Gauge | 4-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Handle Lock |
|---|---|
| Standards | CSA C22.2 No. 5, Federal Specification W-P-131a, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip |
Similar Items
100A 2 Pole Miniature Circuit Breaker
90A 2 Pole Miniature Circuit Breaker
80A 2 Pole Miniature Circuit Breaker
Description
Built for commercial and industrial use, the Eaton CHB2125 is a 125A, 2-pole miniature circuit breaker. It provides robust thermal-magnetic protection against overloads and short circuits. Designed for a secure connection, this breaker bolts into Cutler-Hammer Type PB panelboards, PH panelboards, and meter panels. The box lug terminals accommodate 4-1/0 AWG wire.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CHB2125 |
| Series | CHB |
| Amperage | 125A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | CHB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Cutler-Hammer Type PB Panelboards, Type PH Panelboards, Meter Panels |
| Wire Gauge | 4-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Handle Lock |
|---|---|
| Standards | CSA C22.2 No. 5, Federal Specification W-P-131a, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip |
Product FAQs
4 answersWhich Cutler-Hammer panelboards accept the CHB2125 breaker?
It is engineered specifically for bolt-on installation in Cutler-Hammer Type PB and Type PH commercial panelboards, as well as compatible meter panels. It will not fit standard residential plug-on load centers.
Can I use a CHB2125 in place of a standard CH2125 breaker?
No. The CHB2125 is a bolt-on breaker designed for commercial PB and PH panelboards. The standard CH2125 is a plug-on breaker meant for residential CH load centers. They are not interchangeable.
How much physical space does the CHB2125 take up in a panel?
As part of the CH family, this 2-pole breaker requires two standard 3/4-inch spaces, resulting in a total mounted width of 1.5 inches.
Can the CHB2125 be used for HVAC applications?
Yes, this breaker is HACR rated, meaning it is approved for use with heating, air conditioning, and refrigeration equipment motor loads.
