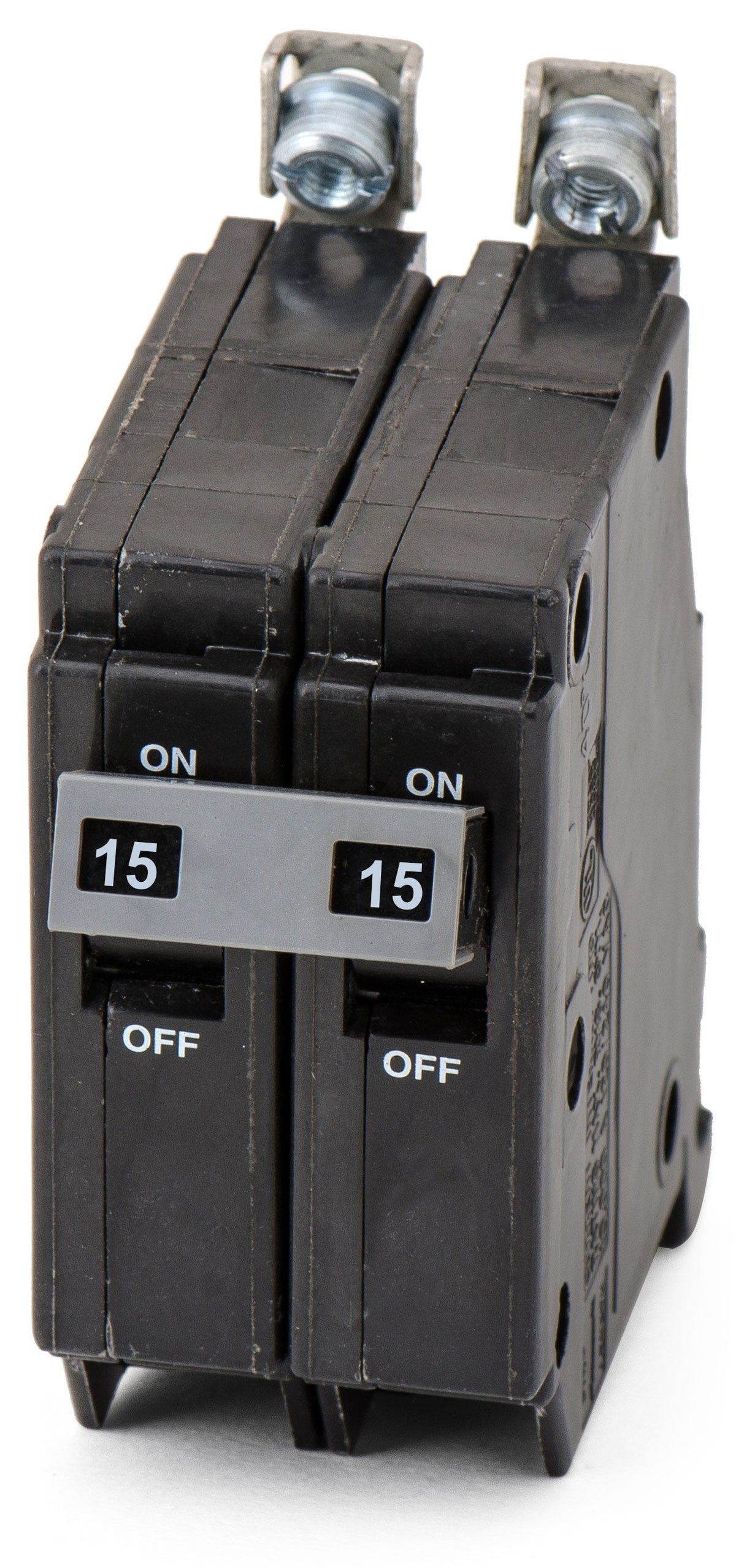

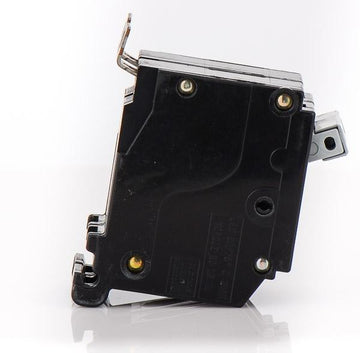

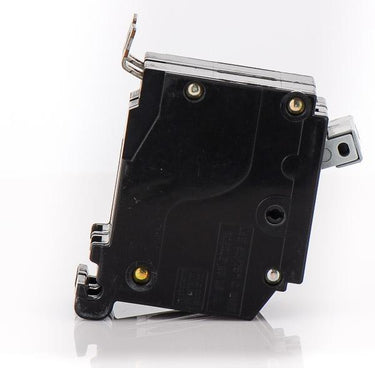

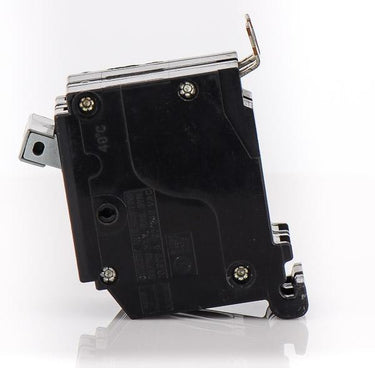

Eaton / Cutler-Hammer CHB215 Miniature Circuit Breaker
- 15A
- 2 Pole
- Bolt-On
Eaton / Cutler-Hammer
CHB215
Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
CHB215
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer CHB215 - 15A 2 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer CHB215 - 15A 2 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CHB215 |
| Series | CHB |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | CHB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Type PB Panelboards, Type PH Panelboards, Meter Panels |
| Wire Gauge | 14-8 AWG |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, Federal Specification W-P-131a, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Sold out
Quantity
Eaton / Cutler-Hammer CHB215 - 15A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CHB215-R |
| Series | CHB |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | CHB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Type PB Panelboards, Type PH Panelboards, Meter Panels |
| Wire Gauge | 14-8 AWG |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, Federal Specification W-P-131a, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Similar Items
30A 2 Pole Miniature Circuit Breaker
40A 2 Pole Miniature Circuit Breaker
50A 2 Pole Miniature Circuit Breaker
Description
Built for commercial applications, the CHB215 delivers 15 amps of thermal-magnetic protection across two poles. This Eaton Cutler-Hammer breaker operates on 120/240V systems to safeguard branch circuits against overloads and short circuits. Designed for a secure connection, it bolts into Type PB and PH panelboards, as well as standard meter panels. The box lug terminals accept 14-8 AWG wire. This HACR-rated breaker features a 10 kAIC capacity and a visual trip indicator for easy maintenance.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CHB215 |
| Series | CHB |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | CHB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Type PB Panelboards, Type PH Panelboards, Meter Panels |
| Wire Gauge | 14-8 AWG |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, Federal Specification W-P-131a, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Product FAQs
5 answersWhich panelboards are compatible with the CHB215 circuit breaker?
The CHB215 is a bolt-on branch breaker specifically designed for Cutler-Hammer and Eaton Type PB and Type PH commercial panelboards, as well as select meter panels. It will not fit standard residential plug-on load centers.
Is the CHB215 breaker HACR and SWD rated?
Yes, this 15-amp breaker is both HACR (Heating, Air Conditioning, and Refrigeration) rated for use with HVAC equipment and SWD (Switching Duty) rated for switching 120V fluorescent lighting loads.
What wire sizes and materials are accepted by the box lugs on the CHB215?
The box lug terminals on this breaker accept wire gauges from 14 AWG up to 8 AWG. They are rated for use with both copper (Cu) and aluminum (Al) conductors, providing flexibility for branch circuit wiring.
Can I use this Eaton breaker to replace older Cutler-Hammer or Westinghouse CHB models?
Yes, Eaton acquired the Cutler-Hammer and Westinghouse distribution equipment lines. The Eaton CHB215 is the direct, exact replacement for older Cutler-Hammer and Westinghouse breakers bearing the same CHB215 catalog number.
Does the CHB215 provide ground fault or arc fault protection?
No, the CHB215 is a standard thermal-magnetic circuit breaker providing basic overload and short-circuit protection. It does not include GFCI or AFCI safety features.
